Quick Details
-
size:
-
1.0mm*330mm*150mm
-
brand:
-
chengde
-
Place of origin:
-
China (Mainland)/Shandong
-
Product name:
-
Textured HDPE perforated Geocell for slope protection
-
Application:
-
building
-
Description:
-
Special for construction
-
Keyword:
-
geocell
-
OEM:
-
available
Quick Details
-
Place of Origin:
-
Shandong, China
-
Material:
-
HDPE PP
-
payment method:
-
Western Union MoneyGram T/T L/C
-
size:
-
1.0mm*330mm*150mm
-
brand:
-
chengde
-
Place of origin:
-
China (Mainland)/Shandong
-
Product name:
-
Textured HDPE perforated Geocell for slope protection
-
Application:
-
building
-
Description:
-
Special for construction
-
Keyword:
-
geocell
-
OEM:
-
available

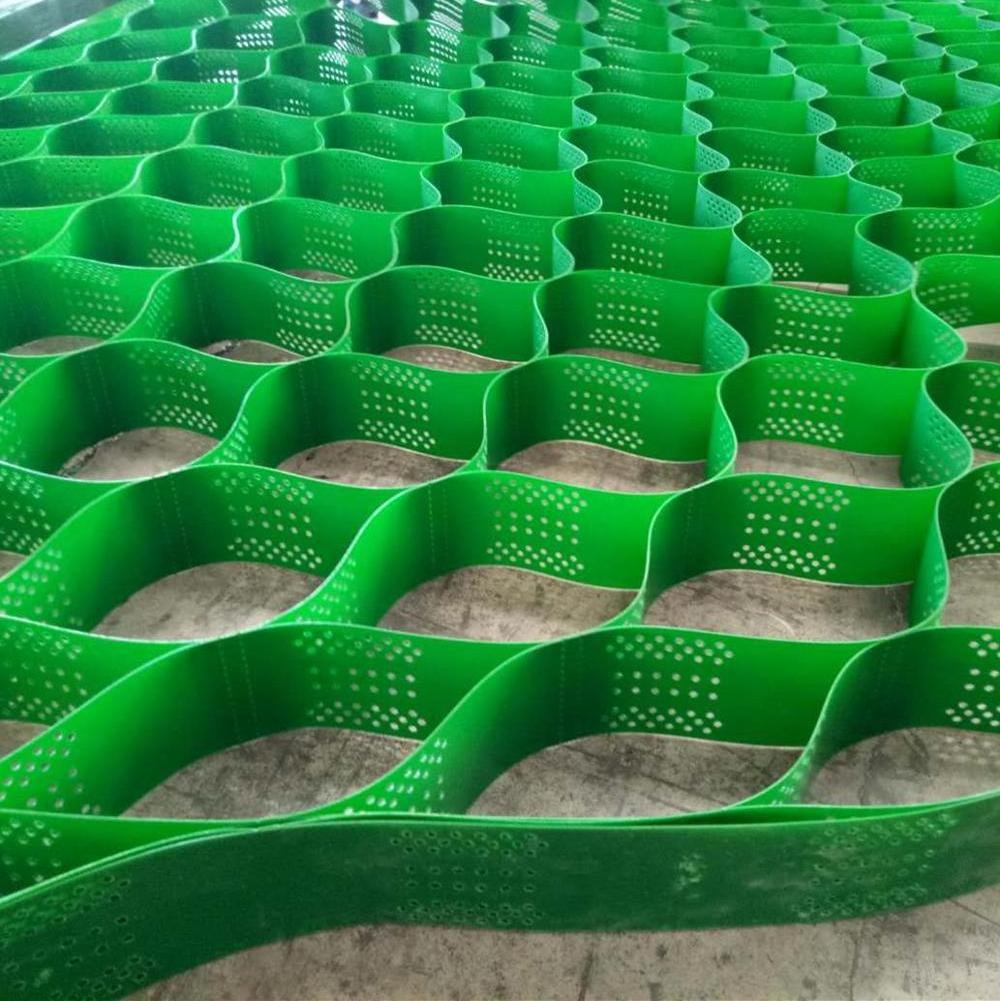

Premium quality Plastic geocell HDPE for road slope reinforcement and retaining wall
Geocell is reinforced by high intensity HDPE broadband, after the powerful welding face to become a reticular lattice room structure. It retractile,transportation can shrink fold super to,when using ,open and filling earth-rock,or concrete materials,constitute has strong lateral restrictions and taking degrees structures ,it can be used as a cushion,dealing with weak foundation bearing capacity , also can be laid on slope surface slope protection structure constitute, still can be used to build retaining structures,etc
1,Virgin HDPE basic with Unique Formula.
2,Tensile Strength reaches 33000 kN/m² (33 MPa)
3,Seam Peel Strength above 16 kN/m (USACE GL-86-19); Split Strength above 28 kN/m (EN ISO13426-1 Method C).
4,Various weld spacing available from 220mm to 1600mm
5,Various strip height available from 25mm to maximum 300mm
6,Maximum strip length reaches 8m, expanded width reaches 6m.
7,Reduce construction thickness, improve load and bearing capacity, long life span, save maintenance cost
8,Easy to transport, all weather installation with high construction speed.
9,Local infill materials available, ungraded or recycled materials are acceptable, reduce construction cost.
Firm for the railway roadbed
In order to prevent gravel gradation lateral movement is stronger as a whole to prevent the pumping, even if the soft ground can prevent the collapse of the whole or in part, the large volume of traffic in areas such as the Cross Road, bifurcation Road and turn, can significantly increase the use of Number of years.
For a solid roadbed
Can generate high power and flexibility of both traditional and rock embankment on the basis compared to the basis of thickness can be reduced more than 50% of the gravity and contact with the pressure and reduce the horizontal dispersion and can be used when the account or on a permanent road construction .
Used to bear the gravity of the dam wall
Strengthen the definition of gravel to form the structure of the body has to stop cross-cutting pressure, no matter slide and pool formation, can itself be supported by non-structural surface layer and the natural plant, or a vertical ladder-type design
Shallow water for river training
Three-direction grid to enhance the strength of avoid fill soil erosion and increase the load, can reduce the cost of construction of the shallow river and allow river traffic with the design and a variety of soil conditions.
Support for the pipeline and sewer
To use a more solid foundation for the pipeline, the construction is simple, reducing the excavation, do not have to lay many rocks and avoid part landslide in the long run
Used to prevent landslides and heavy-duty force by the retaining wall mixed
Do not have to use the template structure can create a solid wall, and backfill side firmly into the price of one, even if the traditional structure of a variety of gravity is not available, fill materials can also significantly reduce the cost of the project.
Independence for the strong terminals, such as dams room
Can be quickly wall structure independent from the independent wall, and the use of water in the granular to protect dam, or weir wall, if temporary facilities are to be removed also Geocell back at the pier or breakwater and other important coastal Also use a wide range
1. Send your geo-material detail requirement to us.( Attached with technical data or Sample will be better)
2. We will quote you the price and leading time based on your information by email.
3. Sign PI or contract as we agreed. Production will be start after receive the deposit.
4. We will send you the production photo or video for your reference.
5. QC check. You can send your QC worker or we will send you our photo or video.
6. We will ship your GEO-MATERIL GOODS (and provide B/L) after we received the balance.
1. How about the delivery time?
Lead time since receipt of 30% T/T deposit payment: 3 weeks.
2. What kind of payments does jenor support?
TT/LC
3. What's are the MOQ?
We can according to your condition to set the MOQ.
And we can provide you samples for quality inspection.
4. How to deal with the sample charge?
Accordeing to our company policy, the samples are free, we only charge the freight fee.
And we will return the freight fee If you set the order .
5. Can you produce the product according to customers' requirements ?
Sure, we are professional manufacturer, OEM and ODM are both welcome.
6. Can you tell me your main customers?
That's our customers' privacy, we should protect their information.
At the same time, please rest assured that your information is also safe here
