Quick Details
-
Rolling thinckness:
-
0.4-0.6mm
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
zhengliming
-
Voltage:
-
380V
-
Weight:
-
6500 kg
-
Feeding width:
-
according to the customer's requests
-
Marketing Type:
-
New Product 2023
-
Product name:
-
Gutter roll forming machine
-
Export port:
-
Xiamen port
-
Machine color:
-
As customer' need
-
Control system:
-
PLC(detla) System
Quick Details
-
Type:
-
Tile Forming Machine
-
Tile Type:
-
Steel
-
Production Capacity:
-
12 m/min
-
Rolling thinckness:
-
0.4-0.6mm
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
zhengliming
-
Voltage:
-
380V
-
Weight:
-
6500 kg
-
Feeding width:
-
according to the customer's requests
-
Marketing Type:
-
New Product 2023
-
Product name:
-
Gutter roll forming machine
-
Export port:
-
Xiamen port
-
Machine color:
-
As customer' need
-
Control system:
-
PLC(detla) System

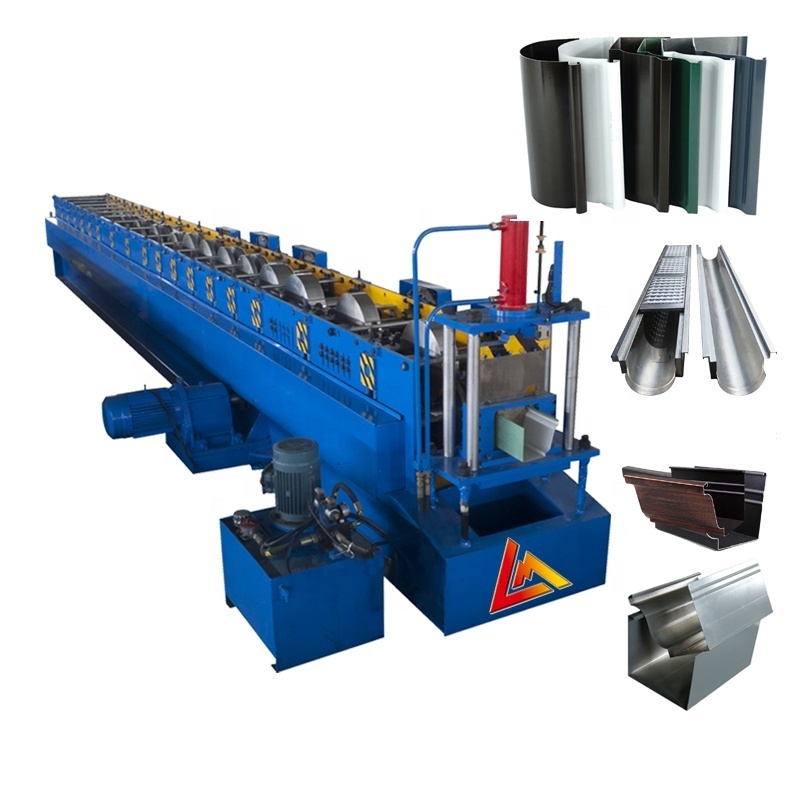

square gutter forming machine
This Roll Forming Machine for Gutter can product various kind of arc gutters to satisfy your customer, and it can also be designed to fit for square gutters with fashion outline, the panel are very popular in our daily life, which enjoy a good market at the same time.
You can provided the drawings what you want or real objects of sectional materials and then we will design and manufacture it for you accordingly.
|
3TonX600mm Hydraulic Un-Coiler |
Hydraulic system for expansion coil-inner-hole with 4 palms Link-connect expanding system Pump power=1.5KW Load capacity=3 Ton,Coil Inner – diameter =451-530 mm Coil outer-diameter=Max. 1500 mm Coiler Width=Max. 600 mm |
| Manual Pre-shearing device |
Smart cut control, to cut off the end of the final piece of sheet only |
|
Cold Rolling Mills |
Feeding section with guide Gear/Sprocket driving 16-step to form Rollers manufactured from 40Cr, CNC lathes, hard Chrome Coated. Shaft Diameter: Φ75mm, Precision Machined Main Motor: 4.0KW, Frequency speed control Forming speed approx. 12m/min Protection Mesh Cover (full mesh type) Above Roll-former To Avoid Hands go Inside, slip type |
|
Hydraulic Cutting Device |
Stop to cut, Post cut, slug breaker Pump motor =3.0KW |
|
PLC Control System |
Control the quantity & cutting length automatically. Combined with: PLC, Touch Screen, Inverter (Siemens) , Encoder (Omron), etc Cut-to-length tolerance≤±2 mm Control Voltage: 24V |
| Product Rack | un-powered, 4 meters length |
