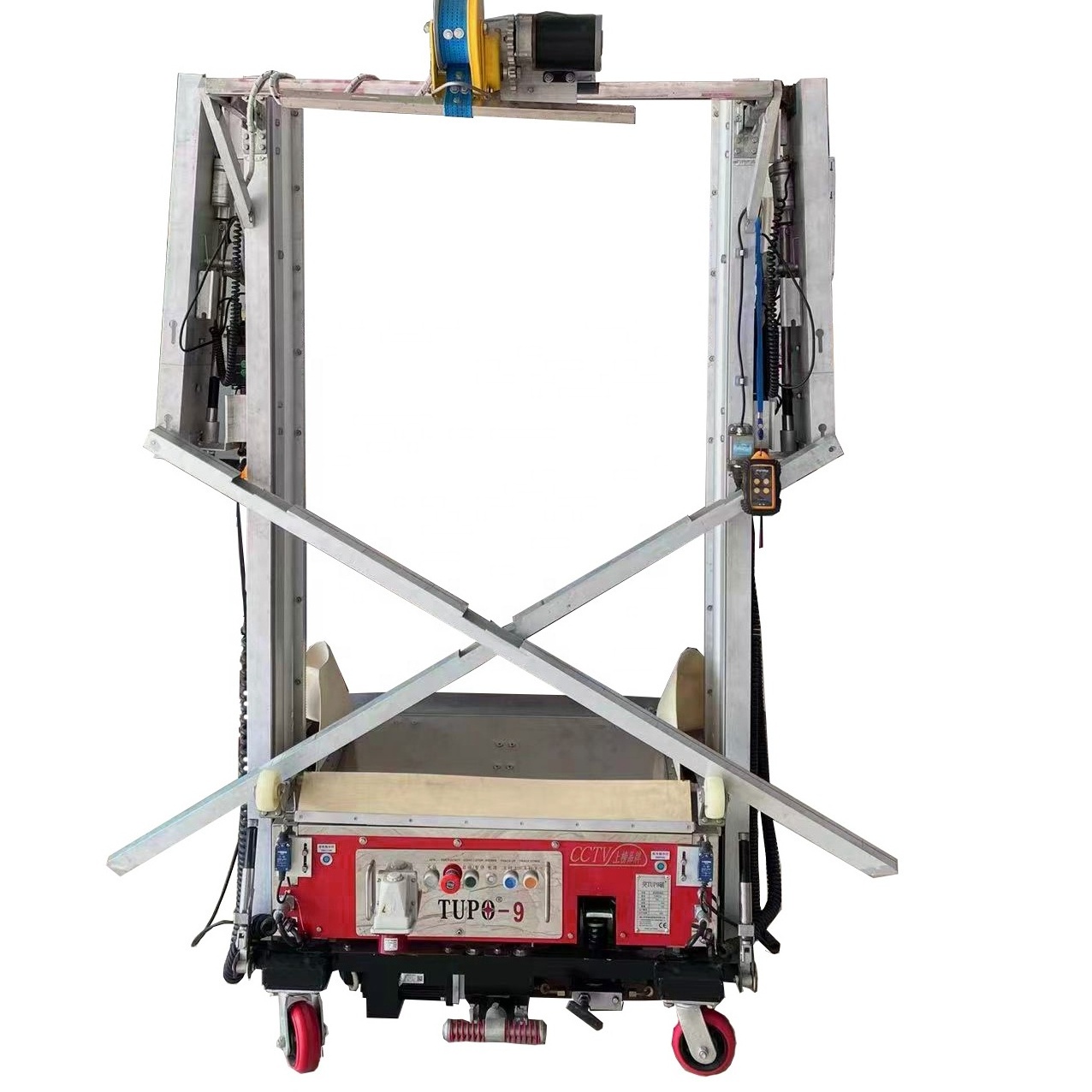

Automatic Tupo Electric Wall Rendering Plastering Machine

Product name: TUPO 9

Parameter:

Rendering Thickness:5mm-30mm

Rendering Width: 1.0m

Rendering Speed: 500m²/day

Rendering Height: 2.6m-3.5m/2.6m-4.5m/2.6m-5m/2.6m-6m   (optional)

Dimension: 1200*550*650mm

Weight:150kg (main unit)

Electricity Phase: Three Phase / Single Phase (optional)

Voltage:380v/220v (optional)

Power: 1.1kw

Specification:

1. New Aluminum Magnesium Alloy main unit and directional pipes, supplied by China famous aluminum supplier Feng Lv, lighter weight and higher strength.

2. Original gear rack driving system enable output of main power more peaceful and stable, 25% faster lifting speed than old generation, improve the plastering efficiency.

3. Plaster as much as 2.5m ² in about 45 seconds. More efficiently.

4. Auto Positioning System device (APS) which guarantees a perfect and fully automatic alignment, even coating thickness, and wall flatness, more precisely.

5. Remote Control available, easily and safely operate the machine from distance if desired.

6. The directional poles are foldable so you can move the machine easily through any door passage and around the construction site.

7. Feed cement mortar by dumper directly, which can save 2/3 of the time, improve the work efficiency.

8. Enlarged mortar tank capacity to 100 liters, and enable to plaster wall surface of 4M without adding mortar anymore.

9. Bigger accessible plastering wall surface, decrease the plastering surface to be with rectification by manual labor.

10. Specially designed Plastering Height Control mechanism enables to plaster wall surface under beam, below and above window, corner

Pruduct details:
