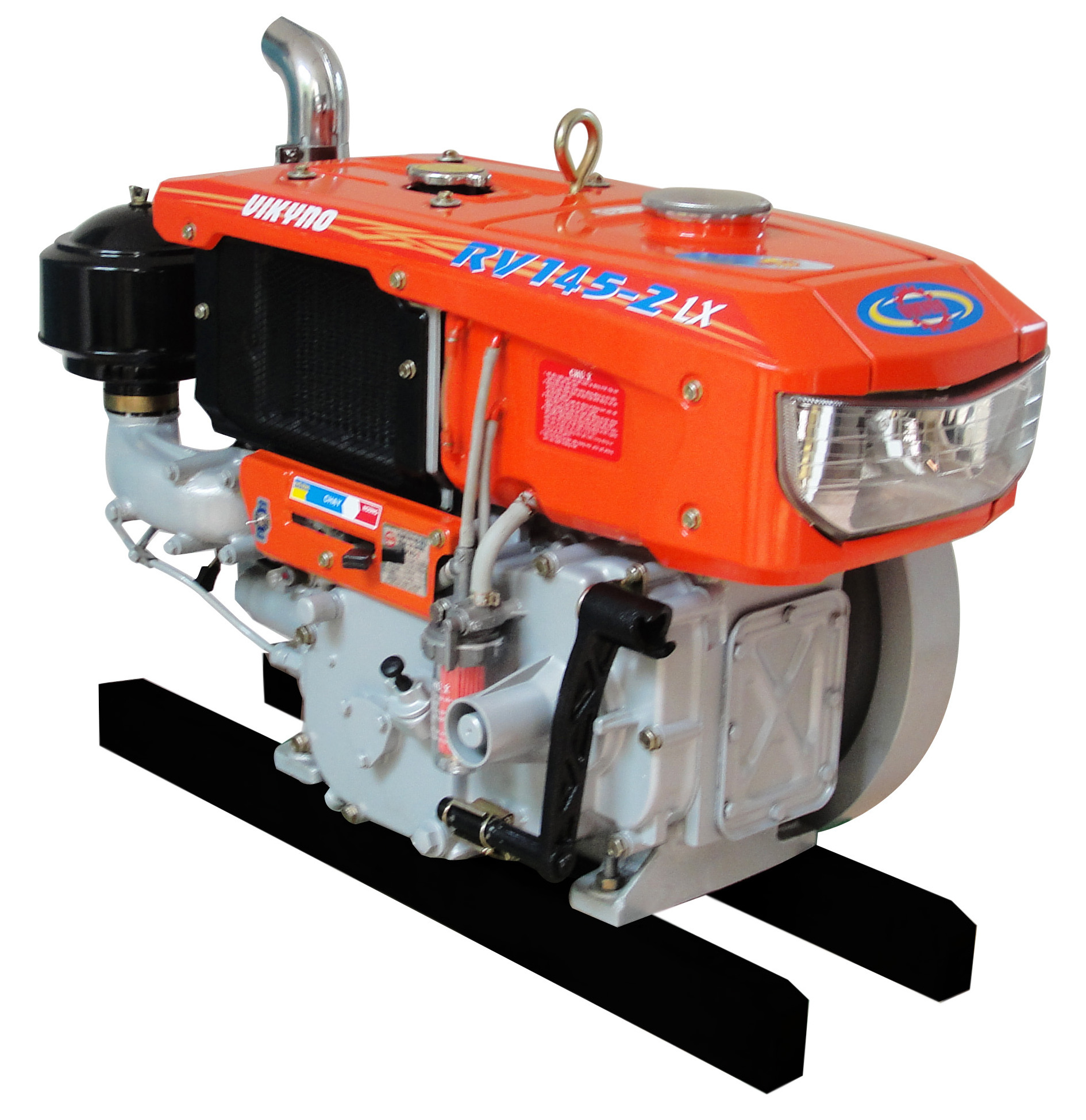

Diesel engine RV145-2LX
|
|
Engine 4 cycle, 1 cylinder, horizontal, maximum output 14.5 HP, fuel tank capacity 10.5, lubricating oil 30, weight 115 kg.
|
Used for :
Welder, Water Pump, Generator, Compressor, River/ Sea Boat, Farming Machinery, Tractor/ Power Tiller, Rice Huller
Featuring:
Higher power, lower fuel consumption
Compact, light weight, easy to operate
Smooth running, durable
|
Model
|
RV145-2LX
|
|
Type
|
4 cycle, 1 cylinder, horizontal
|
|
Bore x Stroke (mm)
|
100 x 94
|
|
Displacement (cm
3
)
|
738
|
|
Continuous output (HP/r.p.m)
Maximum output |
12.5/2200
14.5/2400 |
|
Maximum torque (kgm/rpm)
|
4.5/1800
|
|
Compression ratio
|
19
|
|
Fuel
|
Light diesel oil
|
|
Fuel tank capacity (l)
|
10.5
|
|
Specific fuel consumption (g/HP/hr)
|
185
|
|
Nozzle opening pressure (kg/cm
2
)
|
220
|
|
Lubricating oil
|
SAE30, 20,10w-30
|
|
Lubricating oil capacity (l)
|
2.8
|
|
Combustion system
|
Direct injection
|
|
Starting system
|
Handle starting, electric starter
|
|
Lamp
|
12V-25W
|
|
Cooling system
|
Radiator
|
|
Cooling water capacity (l)
|
2.1
|
|
Weight (kg)
|
115
|
|

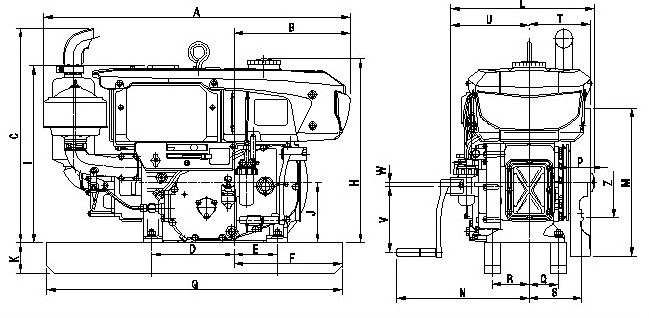

Dimensions:L x W x H (mm)
|
808 x 379 x 471
|
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
I
|
J
|
K
|
L
|
|
808
|
298
|
561
|
212
|
111
|
278
|
760
|
471
|
460
|
155
|
75
|
379
|
|
M
|
N
|
P
|
Q
|
R
|
S
|
T
|
U
|
V
|
W
|
Z
|
|
ø388
|
343
|
56 |
75
|
95
|
144
|
165
|
205
|
170
|
10
|
ø182H8
|
|

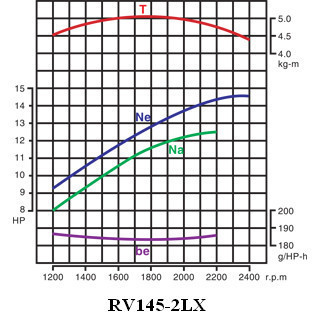

T
:
Torque
Na
:
Continuous output
|
Ne
:
Maximum output
be
:
Specific fuel consumption
|
