Quick Details
-
Weight (KG):
-
400
-
Voltage:
-
220V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BURGEN
-
Dimension(L*W*H):
-
(L)1217* (W)1015*(H)1343 MM
-
Product Name:
-

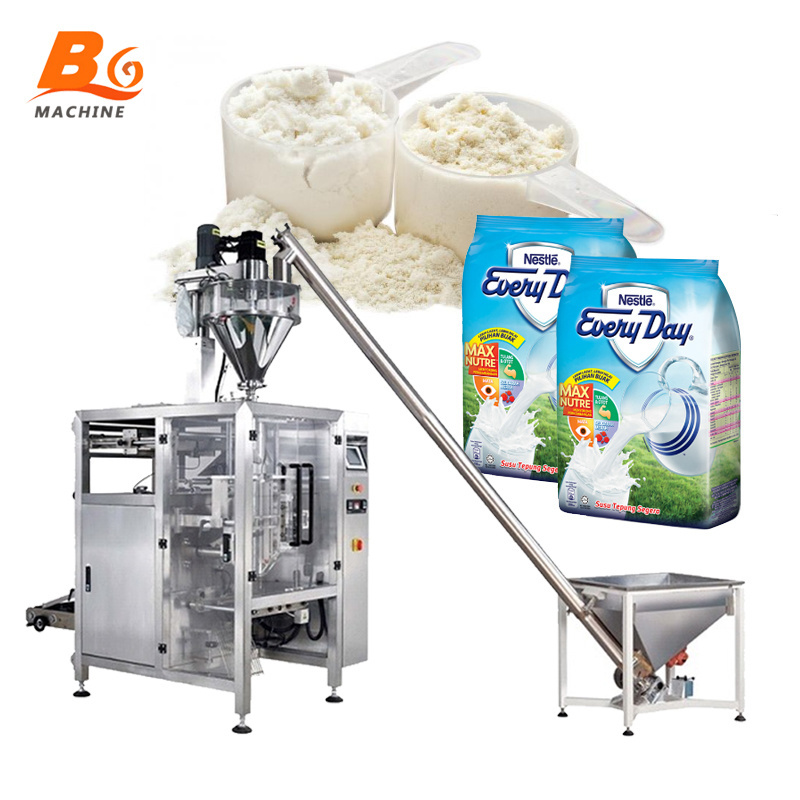

1KG Milk Powder Pouch Filling Packing Machine
-
Controller System::
-
PLC
-
Optional Devices:
-
Data printer, Air-filling Device, Pouching Devic
-
Packing speed:
-
Max.80 Bags/Min
-
Machine Material:
-
Stainless Steel 304 and carbon steel
-
Bag Length:
-
Max.300mm
-
Bags Width:
-
Max.200mm
-
Filling Volume:
-
100ml-1500ml
-
Composite Material:
-
OPP/CPP/PE/PET/PO
Quick Details
-
Function:
-
FILLING, Wrapping, Labeling, Sealing, BOXING, Gluing, SLITTING, Precision weighing
-
Packaging Type:
-
Cartons, CANS, Bottles, Stand-up Pouch, Bags, Film, Foil, Pouch, case, Back seal,3/4 side sealing sachet
-
Packaging Material:
-
Plastic, Paper, Aluminum film,pure aluminum film
-
Weight (KG):
-
400
-
Voltage:
-
220V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BURGEN
-
Dimension(L*W*H):
-
(L)1217* (W)1015*(H)1343 MM
-
Product Name:
-
1KG Milk Powder Pouch Filling Packing Machine
-
Controller System::
-
PLC
-
Optional Devices:
-
Data printer, Air-filling Device, Pouching Devic
-
Packing speed:
-
Max.80 Bags/Min
-
Machine Material:
-
Stainless Steel 304 and carbon steel
-
Bag Length:
-
Max.300mm
-
Bags Width:
-
Max.200mm
-
Filling Volume:
-
100ml-1500ml
-
Composite Material:
-
OPP/CPP/PE/PET/PO
ONE-STOP SOLUTION
Hot Sales 500G 1KG Milk Powder Pouch Filling Packing Machine Protein Powder Packaging Machine
>>
We Are a Manufacturer
One-stop solution for packing machines and packing films Save
▷Packaging Machine Parameters
|
Model
|
BG-320FD
|
BG-420FD
|
BG-520FD
|
BG-720FD
|
|||
|
Film Width
|
Max.320MM
|
Max.420MM
|
Max.520MM
|
Max.720MM
|
|||
|
Bag Length
|
80-250MM
|
80-300MM
|
80-350MM
|
180-500MM
|
|||
|
Bag Width
|
50-150MM
|
60-200MM
|
100-250MM
|
100-350MM
|
|||
|
Roll Diameter
|
Max.320MM
|
Max.320MM
|
Max.320MM
|
Max.320MM
|
|||
|
Film Thickness
|
0.04-0.12MM
|
|
|
|
|||
|
Packing Speed
|
5-60Bag/Min
|
5-60Bag/Min
|
5-60Bag/Min
|
5-55Bag/Min
|
|||
|
Power
|
220V50/60HZ
2KW
|
220V 50/60HZ
2KW
|
220V 50/60HZ
3KW
|
220V 50/60HZ
3KW
|
|||
|
Machine Size(mm)
|
(L)1005* (W)850*(H)1241 MM
|
(L)1217* (W)1015*(H)1343 MM
|
(L)1488* (W)1080*(H)1490 MM
|
(L)1780* (W)1350*(H)2050 MM
|
|||
|
Machine Weight
|
About 620KG
|
About 650KG
|
About 680KG
|
About 750KG
|
|||
|
Option Device
|
Two synchronous belt device, air filling device, angle fold device, automatic rectifying device, hole-punching device, link bag device.
|
|
|
|
|||
APPLICATION
◆ APPLICATION & BAG TYPE ◆
◆
Sachet Sample
◆
Powder packing machine
is suitable for all kinds of superfine powder stuff.
Such as milk powder,flour,starch,coffee,spice,seasoning,tea powder,baking powder and chemical powder,ect.
◆
Pouch Features Or Options
◆
Valves or Vents
Reclosable or Resealable Zippers
Tear Notches
Euro or Round Punch Holes
Paste wet wipes
Rounded Corners
MACHINE DETAILS
0⒈
Auger Feeder
★
304 auger feeder for powder filling efficiency and less noise
02.
Injection Pump
★
Servo auger filler metering struture enable accurate measuring.
03.
Bag Former
★Provide diversified bag-shaped.
★Save on film costs.
★Prevent roll film deviation.
04.
Touch Screen
★Simple operation
★Multilingual.
★Automatically remember 8 sets of parameters.
Feature :
1. With the function auto filling,measuring,bag forming,sealing and cutting. Bag-making system adopts step motor with high precision(error is less than 1mm).
2.PLC control with stable,reliable biaxial high accuracy output and color touch screen, bag-making, measuring, filling, printing, cutting , finished in one operation.
3.To ensure the same length of each bag, high sensitive electro-optical sensor system is provide to the realize automatic a lignment on the packing film.
Spare Parts Brand
COMPANY PROFILE
→ Our Team
Certifications
PACKING&DELIVERY
If have
any special requirements
can be discussed,we will pack it as requested.
Delivery Time: Machine will be shipped in 15 working days after payment,before shipment,our technician will test the machine well,so our client can use directly when got the machine.
Further information (video,pictures, technical parameter and other models) needed,pls feel free to let me know.
Delivery Time: Machine will be shipped in 15 working days after payment,before shipment,our technician will test the machine well,so our client can use directly when got the machine.
Further information (video,pictures, technical parameter and other models) needed,pls feel free to let me know.
WHY CHOOSE US
→
Overseas Cooperation
Q&A
Q1: What information should I tell you to help me
choose the most suitable packaging machine
?
A1: product to be packaged, bag size or film width, bag shape (pillow bag, guesset bag or four bags), package weight and net weight, what kind of film material, product photo, bag photo,Quantity, production, and your true and correct contact details.
Q2: Can you provide
after-sales service
?
A2: We provide
lifetime
after-sales service
. We provide free Internet technical help, English technical manual, detailed operation video, and we can also provide engineers with on-site machine operation and machine maintenance training.
Q3:Why should we choose your company?
A3: We specialize in R&D, manufacturing and sales of various packaging equipment for more than 10 years and provide the best after-sales service.
Q4: How long is the
warranty period
for the machine?
A4: The warranty period is one year (nonhuman damage).
Q5: What's your usual
payment term
for orders?
A5: We accept terms of T/T 30% in advance as down payment and 70% before loading in factory.
