- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
QH-FISH CAGE
-
Material:
-
HDPE
-
Diameter:
-
10m-40m or customized size
-
Shape:
-
Round Square Rectangular Quadrate Circular
-
Fish cage Frame System Material:
-
Eco-HDPE
-
Fish Cage Net:
-
knotted / knotless net
-
Fish cage Perimeter:
-
30-160m
-
Anti-Windstorm capacity:
-
Max Grade 11
-
Ability of anti-wave:
-
Max wave high of 5m in the water
-
Anti-flow capability:
-
Max flow rate of 1.5m/s
-
Customized Fish Cage:
-
OK
-
Installation Service:
-
Available if needed
-
Usage:
-
Aquaculture fish farm
-
Product name:
-

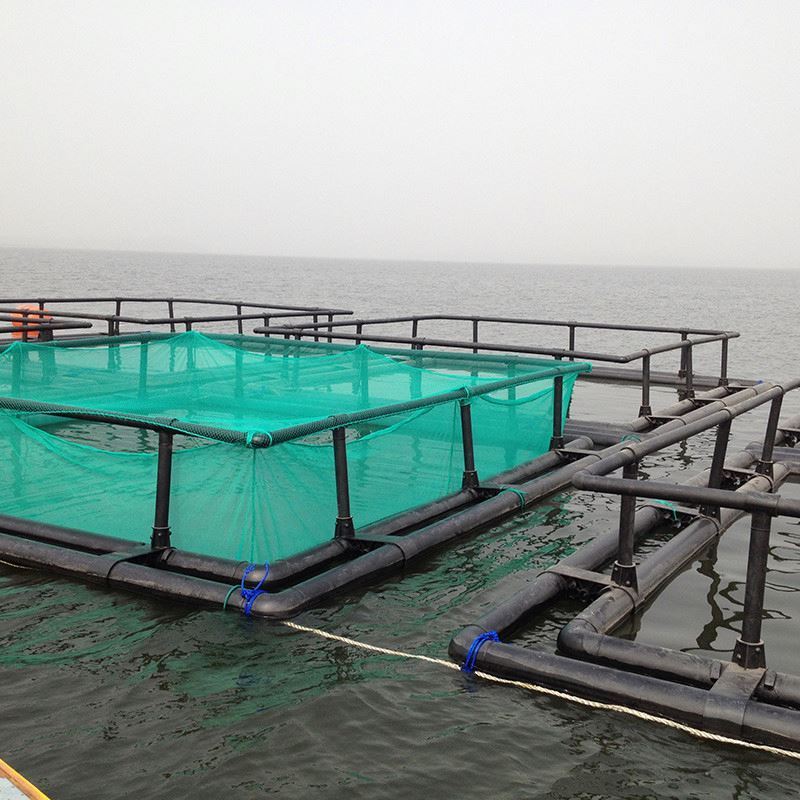

Qihang brand AquaTec Floating Fish Cage for Strong Current River
Quick Details
-
Use:
-
Fish
-
Instruction for use:
-
Fish farming
-
Brand Name:
-
Qihang Cage
-
Model Number:
-
QH-FISH CAGE
-
Material:
-
HDPE
-
Diameter:
-
10m-40m or customized size
-
Shape:
-
Round Square Rectangular Quadrate Circular
-
Fish cage Frame System Material:
-
Eco-HDPE
-
Fish Cage Net:
-
knotted / knotless net
-
Fish cage Perimeter:
-
30-160m
-
Anti-Windstorm capacity:
-
Max Grade 11
-
Ability of anti-wave:
-
Max wave high of 5m in the water
-
Anti-flow capability:
-
Max flow rate of 1.5m/s
-
Customized Fish Cage:
-
OK
-
Installation Service:
-
Available if needed
-
Usage:
-
Aquaculture fish farm
-
Product name:
-
Qihang brand AquaTec Floating Fish Cage for Strong Current River
Product Description
|
Specification and Size
|
|
|
|
|
||||
|
Perimeter
|
30m-50m
|
40m-80m
|
60m-120m
|
120m-160m
|
||||
|
Floating Pipe
|
dia 200mm
|
dia 250mm
|
dia 315mm
|
dia 400mm
|
||||
|
Bracket
|
L200
|
L250
|
L315
|
L400
|
||||
|
Handrail Pipe
|
dia 90mm
|
dia 110mm
|
dia 110mm
|
dia 125mm
|
||||
|
Sinker Pipe
|
dia 110mm
|
dia 125mm
|
dia 160mm
|
dia200/250mm
|
||||
|
L*W(M)
|
Diameter of floating pipe(MM)
|
Diameter of handrial pipe(MM)
|
Diameter of stand pipe(MM)
|
|
3m * 3m
|
200mm
|
90mm
|
110mm
|
|
4m * 4m
|
200mm
|
90mm
|
110mm
|
|
5m * 5m
|
200mm
|
90mm
|
110mm
|
|
6m * 6m
|
200mm/250mm
|
90mm/110mm
|
110mm/125mm
|
|
7m * 7m
|
250mm/315mm
|
110mm
|
125mm
|
|
8m * 8m
|
250mm/315mm
|
110mm
|
125mm
|
|
9m * 9m
|
250mm/315mm
|
110mm
|
125mm
|
|
10m * 10m
|
315mm
|
110mm
|
125mm
|
|
12m * 12m
|
315mm/350mm
|
110mm/125mm
|
125mm/--
|
|
15m * 15m
|
315mm/350mm
|
110mm/125mm
|
125mm/--
|
|
20m * 20m
|
350mm/400mm
|
125mm
|
--
|
Installation Instructions
Recommend Products
Exhibition
Product packaging
Our Advantages
FAQ
Q:Are you a factory?
A:Yes,we are a factory,located in Shandong Province,China.
Q:Can I order only 1 or 2 pieces?
A:Yes,but only the inventory.
Q:What's your MOQ?
A:For the inventory,we don't have MOQ request.We will send goods by air if your order is less than $1000.
