Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
JS
-
Voltage:
-
0
-
Dimension(L*W*H):
-
Reference product list
-
Weight (KG):
-
1 kg
-
After-sales Service Provided:
-
Overseas third-party support available
-
Surface Treatment:
-
galvanize, durionise etc
-
Frame material:
-
carton steel, SUS
-
Certification:
-
ISO/CE
Quick Details
-
Power:
-
0
-
Warranty:
-
1 Year
-
Width or Diameter:
-
Other
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
JS
-
Voltage:
-
0
-
Dimension(L*W*H):
-
Reference product list
-
Weight (KG):
-
1 kg
-
After-sales Service Provided:
-
Overseas third-party support available
-
Surface Treatment:
-
galvanize, durionise etc
-
Frame material:
-
carton steel, SUS
-
Certification:
-
ISO/CE

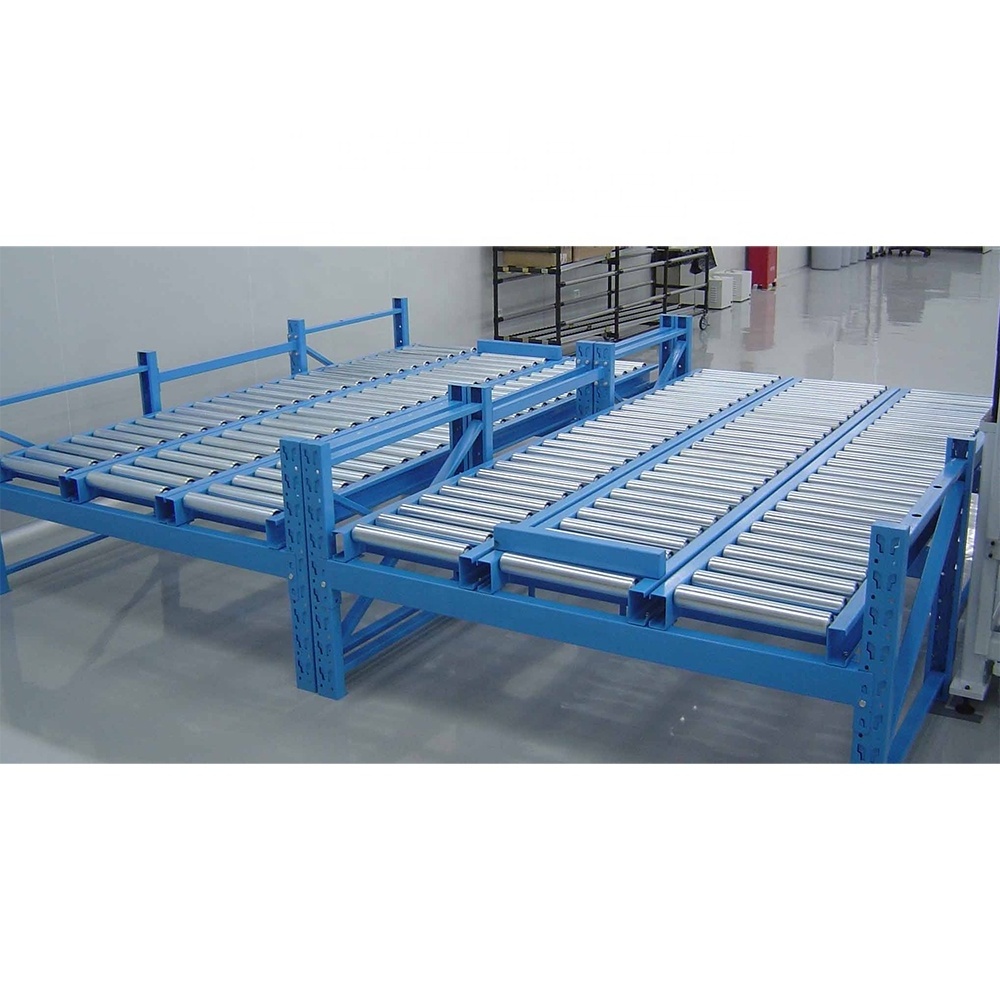

Steel roller conveyor, no power conveyor, gravity roller conveyor
The roller conveyor also named gravity conveyor, gravity roller conveyor, usually adopts the steel conveyor rollers to installed within a certain frame to transfer workpiece on the surface. One of the
simple type is non power roller conveyor, also called manual roller conveyor, because there's no drive
part and need manual pushing to make the workpiece transferring on rollers.
The manual roller conveyor has the feature of heavier laoading than the driving one, and there're more sizes for buyers' optional. Wuxi JIESI has the roller conveyor sizes more than others, the obvious charactor is roller diameter. Roller diameter of Huiqian is from 8mm to 76mm
>>Instruction:
1.Surface treatment:zinc plating,chroming,rubber coat,Pu coat,teflon and so on,accept customers'request.
2.Roller diameter:08,12,19,22,28,38,42,48,50,57,60,76mm
3.Roller material:carbon steel,SUS304,SUS201,Al,PVC and PU coat.
4.Optional parts:castors,side guide,handle and stop.
>>SIZE:
| Model | R-2812 | R-3812 | R-4214 | R-5015 | R-5714 | R-5721 | R-6023 | R-7642 |
| Roller width W | 40~600 | 10~1000 | 10~1000 | 10~1000 | 10~1000 | 10~1000 | 10~1000 | 10~1500 |
| Roller Diameter | 28.6 | 38.1 | 42.7 | 50.8 | 57.2 | 57.2 | 60.5 | 76.3 |
| Roller wall thickness | 1.2 | 1.2 | 1.4 | 1.5 | 1.4 | 2.1 | 2.3 | 4.2 |
| shaft diameter | 8 | 12 | 12 | 12 | 12 | 12 | 12 | 20 |
| Roller material | Carbon steel,Stainless steel | |||||||
