LoRa LoRaWAN outdoor gateway modbus rtu module GSM pi smart controller data logger termohigrometro wireless

LoRa LoRaWAN outdoor gateway modbus rtu module GSM pi smart controller data logger termohigrometro wireless

FOB Reference Price: Get Latest Price

≥10 Sets

US $100

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Hong Kong S.A.R.

Brand Name:: EASEMIND

Supplier Type:: data logger

Product name:: data logger termohigrometro wireless

Wireless:: GPRS Upload

Data:: 4MB memory logs

Display Type:: Analog and Digital

Theory:: Temperature Sensor

Power:: Electronic

material:: metal,waterproof

Communication:: SMS, Ethernet

Certification:: EU ATEX

Color:: black

Quick Details

Chipset:: rf

Application:: room

Model Number:: NSX8-MS

Place of Origin:: Hong Kong S.A.R.

Brand Name:: EASEMIND

Supplier Type:: data logger

Product name:: data logger termohigrometro wireless

Wireless:: GPRS Upload

Data:: 4MB memory logs

Display Type:: Analog and Digital

Theory:: Temperature Sensor

Power:: Electronic

material:: metal,waterproof

Communication:: SMS, Ethernet

Certification:: EU ATEX

Color:: black

LoRa LoRaWAN outdoor gateway modbus rtu module GSM pi data logger termohigrometro wireless

[detail]

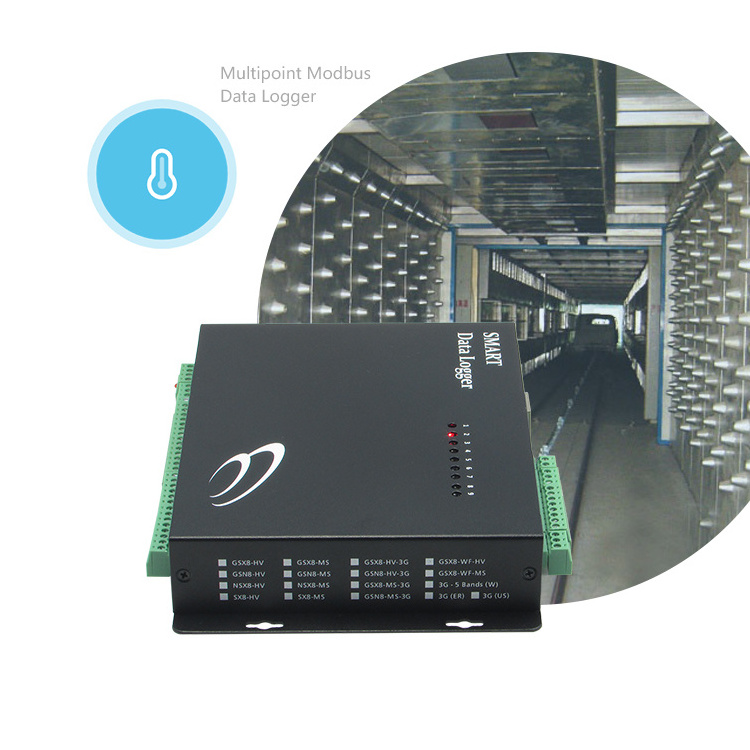

It is a Ethernet Modbus Data Logger with programmable I/O.
Its built-in UPS feature providing user alert of AC power loss.
During power loss, operation is backed up by internal rechargeable battery.

LoRa LoRaWAN outdoor gateway modbus rtu module GSM pi wireless data logger

Overview:

* 2 Temperature Sensors (max.)
* 1 Humidity Sensor
* 8 Analog Channels (max.)
* 10 Digital Inputs
* 4 Pulse Channels
* 4 Relay Outputs
* Modbus RS485 Interface
* 16 Modbus Data Registers
* 32GB SD memory card slot

Its internal 4MB memory logs ~30000 data records, and expandable to 32GB with SD card.
Data can be uploaded to server as fast as 5 seconds interval, or 24 hours to save power.
Progammable data logging interval starts from 1 minute up to 24 hours.

Specification
Power Input -- 9 ~ 15VDC	Data Upload -- On Schedule / Manual Request / Alarm Triggered	Protocol -- [Ethernet - UDP &AMP; TCP], [GPRS - UDP &AMP; TCP]	Certificate -- CE, RoHS
Display Type -- Analog and Digital	Internal Data Record -- Average 30000 records (4MB)	Alarm Trigger -- Digital Alarm / AD Level High or Low / Power Loss	Digital Channel -- Alarm Dry Contact
Signal Type -- 4~20mA or 0~5VDC	Alarm Trigger -- Digital Alarm / AD Level High or Low / Power Loss	Data Logging Interval -- Programmable (1 ~ 60 minutes)	Pulse Channel -- On/Off Switching
Data Transmission -- GPRS, SMS, Ethernet	Output -- 5VDC	Data Upload Interval -- Programmable (5s ~ 24 hours)	Temperature Channel -- -55 ~ 125 °C

LoRa LoRaWAN outdoor gateway modbus rtu module GSM pi wireless data logger

Features
1) Real Time GPRS, Ethernet and SMS Data Upload
2) Integrated 16 bit MCU & Siemens GPRS Ethernet Module
3) Programmable data input type & alert hi/low
4) Programmable Data Upload Interval & Logging Interval
5) Easy setup via USB port by PC software
6) Remote Setup by GPRS, SMS or Ethernet
7) RS485 Port support data capturing in Modbus protocol
8) Support Dynamic Domain Name or Fixed IP, and UDP/TCP protocol data transmission
9) Flexible AC/DC power with internal battery backup

Free Software:
[1] Setup software is bundled for routine configuration via Ethernet remotely, or via USB port locally
[2] Centre software is also provided for receiving data via GPRS, Ethernet.
[3] Smart Client Lite app (Windows, iPad, Android) is free for user friendly graphics data display
