Quick Details
-
Model Number:
-
EL-P3000
-
Output Frequency:
-
50Hz/60Hz
-
Size:
-
494*235*96.5
-
Weight:
-
5.65KG
Quick Details
-
Output Current:
-
LOAD
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ELEJOY
-
Model Number:
-
EL-P3000
-
Output Frequency:
-
50Hz/60Hz
-
Size:
-
494*235*96.5
-
Weight:
-
5.65KG

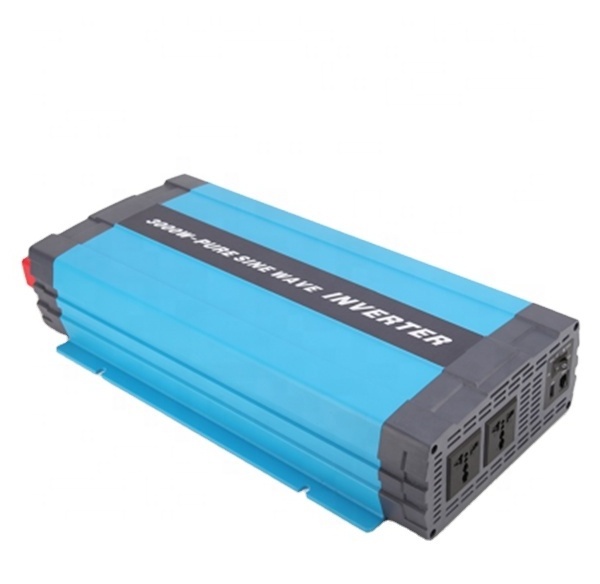

3000W Pure Sine Wave Power inverter With USB home solar power systems EL-P3000
| Model | EL-P3000 | |||
| Input | DC voltage | 12V | 24V | 48V |
| Voltage range | 10-15.5VDC | 20-31.5VDC | 42-63VDC | |
| No load current draw | 1.0A | 0.6A | 0.2A | |
| Efficiency | > 90% | |||
| Output | AC voltage | 100/110/120VAC or 220/230/240 VAC | ||
| Continuous power | 3000W | |||
| Surge power | 6000W | |||
| Waveform | Pure sine wave | |||
| Frequency | 50Hz or 60Hz | |||
| USB Output | 5VDC 1A | |||
| AC regulation | 3% | |||
| Protection | Low voltage alarm | 10.5DC±0.5V | 21DC±0.5V | 44VDC±1V |
| Low voltage shut down | 10DC±0.5V | 20DC±0.5V | 42VDC±1V | |
| Short circuit | Shut off output automatically | |||
| Over load | Shut off output | |||
| Over voltage shut down | 15.5±1V | 31.5±0.5V | 63±1V | |
| Over thermal | Shut off output automatically | |||
| Environment | Working temperature | -10℃ and +50℃ | ||
| Working humidity | 20%~90%RH | |||
| Storage temperature | -30℃ ~ +70℃ | |||
| Package | Machine size(L*W*H)mm | 494*235*96.5 | ||
| Net weight KG | 5.65 | |||
| Gross weight KG | 6.8 | |||
| Packing size mm | 600*290*180 | |||
| Package quantity pcs | 2 | |||
| Outer packing size mm | 620*310*380 | |||
FAQ:
1. Are you a manufacturer?
100% yes, if you have a chance, you can visit our factory anytime.
2. Do you have any MOQ limit?
One piece is possible, you can buy one sample for testing first.
3. What about the lead-time?
Normally 1-2 working days after receive the payment.
4. How to pay for the sample fee?
Please send the payment to our PayPal account or from Alibaba directly.
5. How do you ship the goods?
We often ship by DHL, UPS, FedEx or TNT, it usually takes 3-5 days to arrive.
6. Do you offer guarantee for the products?
Yes, we offer 1-year warranty.
7. I cannot find the suitable model, can I ask for a special model I need?
Sure. Please advising the detail specification you need, we will make it according to your request.
