• Automatically shuts-off the flow of fuel when vehicle tank is full
• 3 position stay open latch. Disable function variant available
• Optional sizes & flow rates up to 120L/min
• For use with electric pumps only
• Insulator color: red, blue, green, yellow, and black
- Product Details
- {{item.text}}
Quick Details
-
Application:
-
Oil Station
-
Type:
-
Injector Nozzle
-
Medium:
-
Diesel Kerosene Gasoline Fuel
-
Material:
-
Stainless Steel
-
Color:
-
Customized Color
-
Nozzle:
-
Automatic Shut-Off
-
Usage:
-
Oil Filling
-
Flow Range:
-
5-50 L/min
-
Size:
-
3/4'' 1''
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
11A 7h
-
Product name:
-
Fuel Nozzle
-
Application:
-
Oil Station
-
Type:
-
Injector Nozzle
-
Medium:
-
Diesel Kerosene Gasoline Fuel
-
Material:
-
Stainless Steel
-
Color:
-
Customized Color
-
Nozzle:
-
Automatic Shut-Off
-
Usage:
-
Oil Filling
-
Flow Range:
-
5-50 L/min
-
Size:
-
3/4'' 1''
Product Description
Our extensive fuel nozzle range provides solutions for the dispensing of diesel, petrol, oil, AdBlue and grease.
When selecting a fuel dispensing nozzle you need to decide whether you require an automatic or manual model.
An automatic fuel pump nozzle shuts off when the vehicle being refuelled becomes full, preventing further fuel from being
dispensed and an overfill from occurring.
When selecting a fuel dispensing nozzle you need to decide whether you require an automatic or manual model.
An automatic fuel pump nozzle shuts off when the vehicle being refuelled becomes full, preventing further fuel from being
dispensed and an overfill from occurring.
Whereas a manual refuelling nozzle is a cheaper solution when the user is not too concerned with automatic shut off, and is popular within the agricultural and plant market.
Also included in our range are high flow fuel nozzles specially designed for refuelling larger vehicles and machinery and models with in built flow meters for identifying the amount of fluid dispensed.
It should also be noted that whilst some fuel dispensing nozzles work on both gravity and pump installations, there are specially identified fuel pump nozzles and gravity fed nozzles.
Also included in our range are high flow fuel nozzles specially designed for refuelling larger vehicles and machinery and models with in built flow meters for identifying the amount of fluid dispensed.
It should also be noted that whilst some fuel dispensing nozzles work on both gravity and pump installations, there are specially identified fuel pump nozzles and gravity fed nozzles.
Technical Specification

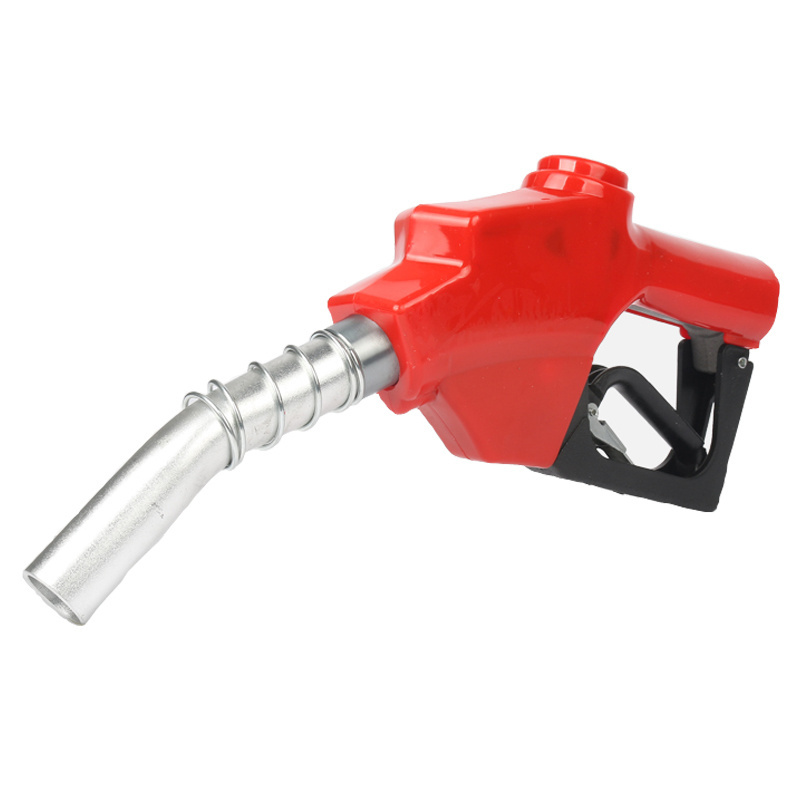

11A 7H Automatic Fuel Nozzle
|
Model
|
YHAN45(unleaded only)
|
YHAN60
|
YHAN120L
|
||
|
Inlet Diameter
|
3/4" BSP/NPT
|
3/4" BSP/NPT
|
1" BSP/NPT
|
||
|
Spout Diameter
|
13/16"
|
15/16"
|
1"
|
||
|
Flow Range
|
0-45LPM
|
0-60LPM
|
0-120LPM
|
||
|
Insulator Color Optios
|
Red, Blue, Green, Yellow, Black, Gray
|
|
|
||
|
Body & Spout Material
|
Aluminum
|
|
|
||
|
Sea Material
|
Viton
|
|
|
||
|
Spring & Main Stem Material
|
Stainless Steel
|
|
|
||
Automatic Shut Off Fuel Nozzle
For heavy duty, high flow truck stop, bus, and fleet service.
Light weight, easy and convenient to use.
Spout with gear: Making it to be holding on the spout of tank without hand, improving your efficiency.
Easily replaced 360° rotation swivel- prevents the hose from curling up
Minimum pressure loss and offer a maximum flow rate
|
Model
|
YHXIDE-80
|
YHXIDE-80B
|
YHXIDE-120
|
||
|
Inlet Diameter
|
3/4" or 1" BSPF/NPT
|
|
1" BSPF/NPT
|
||
|
Spout Diameter
|
13/16"
|
15/16"
|
1-3/16"
|
||
|
Flow Range
|
0-45LPM
|
0-60LPM
|
0-120LPM
|
||
|
Insulator Color Optios
|
Red, Green, Blue, Yellow, Black
|
|
|
||
|
Body & Spout Material
|
Aluminum
|
|
|
||
|
Sea Material
|
Buna-N, Viton
|
|
|
||
|
Spring & Main Stem Material
|
Stainless steel
|
|
|
||
High Speed 1.5" Fuel Nozzle:
• Extremely heavy duty, automatic nozzle for high flow, bulk fuel transfer
• Applications including rail, tanker or filling fuel storage tanks
• Right angle design allowing the nozzle to fit close to walls and corners
• Inlet: 1 ½” F BSP/NPT
• Maximum flow rate: 260ltrs Per Min
•Durable die cast aluminium nozzle body
• Applications including rail, tanker or filling fuel storage tanks
• Right angle design allowing the nozzle to fit close to walls and corners
• Inlet: 1 ½” F BSP/NPT
• Maximum flow rate: 260ltrs Per Min
•Durable die cast aluminium nozzle body
High Speed 2" Fuel Nozzle
• Extremely heavy duty, automatic nozzle for high flow, bulk fuel transfer
• Maximum flow rate: 350ltrs Per Min
•Durable die cast aluminium nozzle body
Aluminum Manual Fuel Nozzle
• Manual fuel nozzle designed for the dispensing of diesel and oil at both low and high flow rate conditions.
• Can be used within a pumping or gravity fed system
• Die cast aluminium body
• Integral hook for hanging without a holster
• Removable lever protection
• Maximum flow rate: 120ltr Per Min
• Supplied with 1” F BSP swivel
• Can be used within a pumping or gravity fed system
• Die cast aluminium body
• Integral hook for hanging without a holster
• Removable lever protection
• Maximum flow rate: 120ltr Per Min
• Supplied with 1” F BSP swivel
Plastic Adblue Nozzle:
• It is a cost effecitive manual type nozzle
• Designed to work efficiently within an installation for urea, or DEF
• can be used in any type of pumping or gravity system
• white polypropylene construction with a stainless steel spout
• Come with an integral hook for hanging without a holster
• Maximum flow rate: 80ltr Per Min
• Designed to work efficiently within an installation for urea, or DEF
• can be used in any type of pumping or gravity system
• white polypropylene construction with a stainless steel spout
• Come with an integral hook for hanging without a holster
• Maximum flow rate: 80ltr Per Min
Mechanical Automatic Metring Nozzle
• Aluminum Automatic Shut off Nozzle with mechanical Flow meter
• Used to measure the volume flow rate of liquid passing through the pipe
• Counting Range: 1 - 9999
• Metering Accuracy +/-1%
• Max flow rate 60L/min
• C/w a rotary swivel
• Application: Gasoline, Kerosene, Diesel
• Used to measure the volume flow rate of liquid passing through the pipe
• Counting Range: 1 - 9999
• Metering Accuracy +/-1%
• Max flow rate 60L/min
• C/w a rotary swivel
• Application: Gasoline, Kerosene, Diesel
Digital Automatic Metring Nozzle
•
Size: 1"
• Aluminum Automatic Shut off Nozzle with Digital Flow meter
• Used to measure the volume flow rate of liquid passing through the pipe
• Counting Range: 1 - 9999
• Metering Accuracy +/-1%
• Max flow rate 60L/min
• C/w a rotary swivel
• Application: Gasoline, Kerosene, Diesel
• Max flow rate 60L/min
• C/w a rotary swivel
• Application: Gasoline, Kerosene, Diesel
