Quick Details
-
Ejector Stroke(mm):
-
45 mm
-
Ejector Force(kN):
-
13 kN
-
Theoretical Shot Volume(cm³):
-
45.6 cm³
-
Injection Rate (g/s):
-
30 g/s
-
Injection Weight (g):
-
41.5 g
-
Screw Speed (rpm):
-
195 - 205 rpm
-
Screw diameter (mm):
-
25 mm
-
Distance between Tie Bars:
-
240x210 mm
-
Weight (KG):
-
1100 kg
-
Place of Origin:
-
China
-
Open Stroke(mm):
-
195 mm
-
Model Number:
-
Z30
-
Brand Name:
-
SAIGER
-
Power (kW):
-
5.5 kW
-
Product name:
-
Injection Molding Machine
Quick Details
-
Distance between Tie Bars(Width)(mm):
-
240mm
-
Distance between Tie Bars(Height)(mm):
-
210mm
-
Mold Height(mm):
-
60 - 220 mm
-
Ejector Stroke(mm):
-
45 mm
-
Ejector Force(kN):
-
13 kN
-
Theoretical Shot Volume(cm³):
-
45.6 cm³
-
Injection Rate (g/s):
-
30 g/s
-
Injection Weight (g):
-
41.5 g
-
Screw Speed (rpm):
-
195 - 205 rpm
-
Screw diameter (mm):
-
25 mm
-
Distance between Tie Bars:
-
240x210 mm
-
Weight (KG):
-
1100 kg
-
Place of Origin:
-
China
-
Open Stroke(mm):
-
195 mm
-
Model Number:
-
Z30
-
Brand Name:
-
SAIGER
-
Power (kW):
-
5.5 kW
-
Product name:
-
Injection Molding Machine

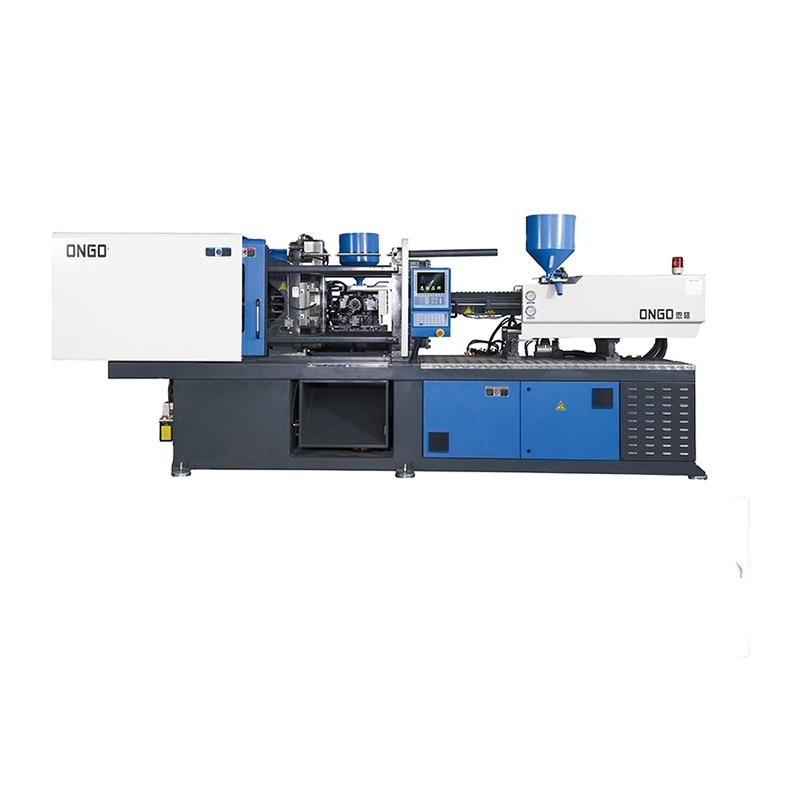

Ongo Z30 machine injection machine injection moulding machine
|
Z30 TECHINICAL PARAMETERS |
|||
|
INJECTION UNIT |
|
B |
C |
|
screw diameter |
mm |
23 |
25 |
|
shot volume(theoretical) |
cm3 |
38.6 |
45.6 |
|
injection weight(ps) |
g |
35.1 |
41.5 |
|
injection rate |
g/s |
25 |
30 |
|
injection pressure |
Mpa |
211 |
179 |
|
screw speed |
rpm |
200 |
|
|
CLAMPING UNIT |
|
|
|
|
clamping force |
kN |
300 |
|
|
open stroke |
mm |
195 |
|
|
space between tie bars(WxH) |
mm |
240 x210 |
|
|
max mould height |
mm |
220 |
|
|
min mould height |
mm |
60 |
|
|
ejector stroke |
mm |
45 |
|
|
ejector force |
kN |
13 |
|
|
OTHERS |
|
|
|
|
max pump pressure |
Mpa |
14 |
|
|
pump motor power |
kW |
3 |
|
|
heating power |
kW |
2.5 |
|
|
machine dimension(LxWxH) |
m |
2.7X0.9X1.5 |
|
|
machine weight |
t |
1.1 |
|
Q1: Are you trading company or manufacturer?
A: We are factory which has over 15 years' manufacturing experience and 80% engineer work have more than 10 years.
Q2: How long is your delivery time?
A: 5 - 20 days after order confirmed. Based on the item and quantity.
Q3: What's the MOQ?
A: 1 set.
Q4: What is your terms of payment?
A: If amount ≤ 1000 USD, 100% in advance, if amount ≥ 1000 USD, T/T 30% as deposit, and 70% balance before shipping. We'll show you the photos of the products and package.
Q5: Where's your general loading port?
A: Ningbo port and Shanghai Port
Q6: Can you do OEM?
A: Yes, we can do OEM.
Q7: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q8: How to deal with the faulty?
A: First, our products are produced in strict quality control system, but if any faulty, we'll send new spare parts for free in one warranty year.
Secondly, our technician will periodically follow up customer to help to do maintenance and ensure equipment operation 7/24 be guaranteed.
Q9: How can get the shipping cost?
A: You tell us your destination port or delivery address, we check with Freight Forwarder for your reference.
