Quick Details
-
Power:
-
1.1kw
-
Min. Lifting Height:
-
170mm
-
Table Size:
-
2200*700mm
-
Overall Dimensions:
-
2250*750*280MM
-
Weight:
-
240KG
-

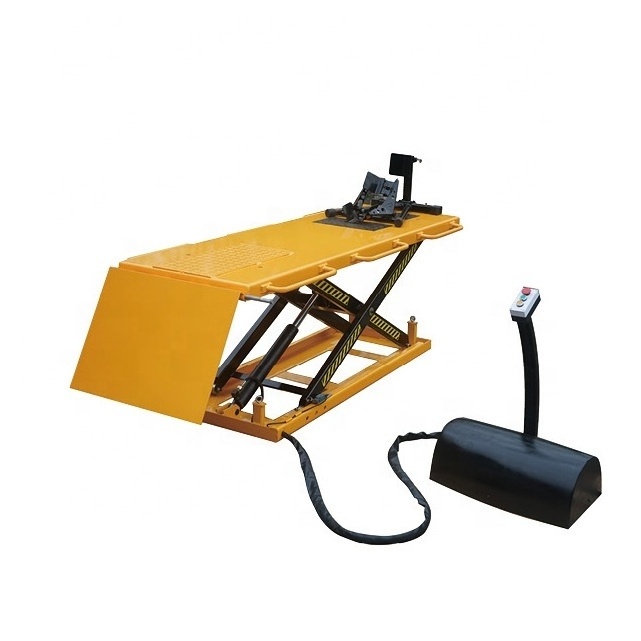

Product name:
-
motorcycle lift table
-
Keywords:
-
motorcycle
-
Type:
-
motorcycle used
-
Color:
-
yellow and can be customized
-
Control methods:
-
electric
-
Lifting height:
-
880mm
-
Load capacity:
-
500kg
-
Voltage:
-
380v and can be customized
-
Power source:
-
AC
-
Function:
-
lifting motorcycle
-
Certification:
-
ce,tuv,iso9001
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SZHOULAR
-
Power:
-
1.1kw
-
Min. Lifting Height:
-
170mm
-
Table Size:
-
2200*700mm
-
Overall Dimensions:
-
2250*750*280MM
-
Weight:
-
240KG
-
Product name:
-
motorcycle lift table
-
Keywords:
-
motorcycle
-
Type:
-
motorcycle used
-
Color:
-
yellow and can be customized
-
Control methods:
-
electric
-
Lifting height:
-
880mm
-
Load capacity:
-
500kg
-
Voltage:
-
380v and can be customized
-
Power source:
-
AC
-
Function:
-
lifting motorcycle
-
Certification:
-
ce,tuv,iso9001
Standard Features:
-
With CE certification,meet EN 1570 ANSI/ASME safety standards.
-
Convenient electric and hydraulic system and scissor design for easy lifting,lowering.
-
AC 110/220/380/460V,50/60Hz power supply,low-tention (24V) control box.
-
Applicable to various industries,expecially in warehousing,logistics,manufacturing industies.
-
Custom design and specs available.
Advantages:
-
Can be used in above-floor or in-floor pit applications.
- Load capacity is 500KG,table size is 2200*700mm
-
Min. height is 170mm,while max. height is 880mm.
-
Equipped with a special mechanical vice to block the front wheel.
-
With extra grab handles on the side of table.
- With an extra table panel to facilitate dismounting of the back wheel without being obliged to remove the lifting slide.
-
External power pack with pedestal and controls.
-
With hose burst safety valve to stop the lift table lowering in case of hose breakage.
-
With compensated flow valve to control machine lowering speed
-
With overload protection device(relief valve) to prevent overload damage
-
With safety wedge to facilitate maintenance.
-
With self lubricating bushings on pivot points to extend fork arms' life.
Spec. :
| Model | Unit | MC500 |
| Capacity | kg | 500 |
| Table Height | mm/Min. | 170 |
| mm/Max. | 880 | |
| Table Size | mm/Length | 2200 |
| mm/Width | 700 | |
| Lifting Speed | s | 20-30 |
| Power Station | kg | 380V/50Hz |
| Net Weight | kg | 240 |
More detail of stationary electric scissor lift table:
Customized design available~
We also welcome OEM and ODM orders.
Please provide us details such as:
load capacity,table size,lifting height,color,voltage demands etc.,the more the better ~
Other information:
We have no MOQ,one piece is welcomed.
But we also have capability of mass production.
Our products are widely used in different industies,during years,they are getting good feedback from our clients.
| Questions | Answers |
|
Do you accept customized design? Do you offer OEM & ODM service? |
Yes,of course!We have over 10 years' experience in customized design product,expecially lift table. |
| What information should I provide for a customized order? |
The more information you provide, the accurate solution we can prepare for you.Such as: 1,control by manual or electric 2,stationary or mobile 3,power source/voltage demand 3,load capacity 4,lifting heigh(min.height and max height) 5,table size and other information required. |
| What is your MOQ? | One unit.The more the better.The price is negotiable for large quantity. |
| What is your payment term? |
For stock items,T/T in advance. For customize order,30% T/T in advance,balance before shipping. |
| What is the delivery time? |
For stock items,send out in 1-3 workdays after payment. For customized order, we can deliver in 15-25 days. It's based on what's kinds of styles and the quantity. |
| How long is the warranty time? |
One year or 2000 hours,whatever come first. |
| How can I get the after-sales service? | Usually on line and vedio if necessary.Li fetime technical support. |
| How do you do to control quality? | We comply with IS09001 standards strictly and most of our products are CE approved. |
