Quick Details
-
Brand Name:
-
Hirschmann
-
name:
-
industrial ethernet Switch
-
brand:
-
Hirschmann
-
model:
-
SPIDER 1TX/1FX-SM
-
description:
-
Unmanaged 2-port Switch
-
Dimension:
-
25 mm x114 mm x79 mm
-
Weight:
-
105g
-
Warranty:
-
1 Year
-
Working temperature:
-
0-+60 °C
-
Ports:
-
1 x 10/100BASE-TX 1 x 100BASE-FX
-
Keywords:
-
Hirschmann switch
Quick Details
-
Type:
-
Enterprise Switch
-
Model Number:
-
SPIDER 1TX/1FX-SM
-
Place of Origin:
-
Germany
-
Brand Name:
-
Hirschmann
-
name:
-
industrial ethernet Switch
-
brand:
-
Hirschmann
-
model:
-
SPIDER 1TX/1FX-SM
-
description:
-
Unmanaged 2-port Switch
-
Dimension:
-
25 mm x114 mm x79 mm
-
Weight:
-
105g
-
Warranty:
-
1 Year
-
Working temperature:
-
0-+60 °C
-
Ports:
-
1 x 10/100BASE-TX 1 x 100BASE-FX
-
Keywords:
-
Hirschmann switch

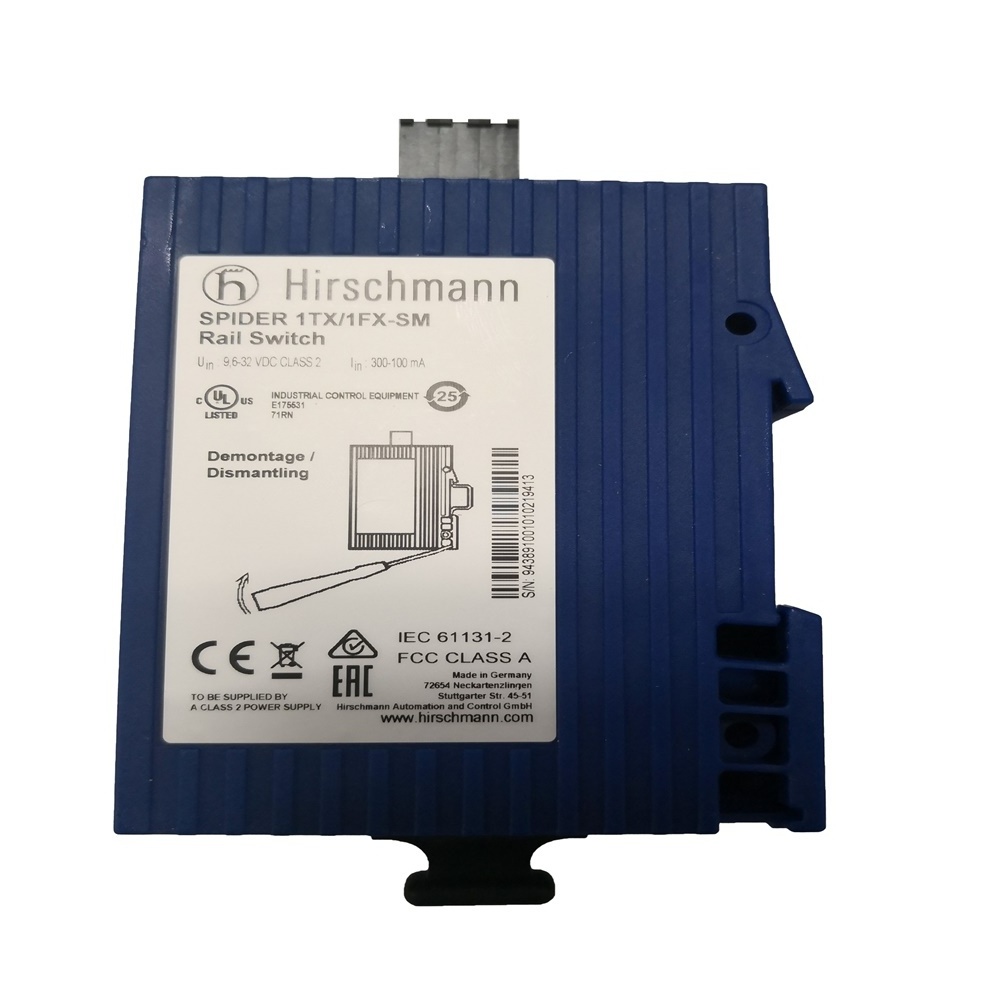

Hirschmann switch SPIDER 1TX/1FX-SM - Unmanaged 2-port Switch
Entry Level Industrial ETHERNET Rail Switch, store and forward switching mode, Ethernet and Fast-Ethernet (10/100 Mbit/s)
Technical Specifications
|
Description |
Entry Level Industrial ETHERNET Rail Switch, store and forward switching mode, Ethernet and Fast-Ethernet (10/100 Mbit/s) |
|
Part Number |
943 891-001 |
|
Port type and quantity |
1 x 10/100BASE-TX, TP cable, RJ45 sockets, auto-crossing, auto-negotiation, auto-polarity 1 x 100BASE-FX, SM cable, SC sockets |
More Interfaces
|
Power supply /signaling contact |
1 x plug-in terminal block, 3-pin, no signaling contact |
Network size - length of cable
|
Twisted pair (TP) |
0-100 m |
|
Single mode fiber (SM) 9/125 µm:= |
0 - 32,5 km, 16 dB Link Budget at 1300 nm, A = 0,4 dB/km D = 3,5 ps/(nm*km) |
Network size - cascadibility
|
Line - / star topology: |
any |
Power requirements
|
Current consumption at 24 V DC |
Max. 130 mA |
|
Operating Voltage |
9,6 V DC - 32 V DC |
|
Power consumption |
Max. 3,0 W 10,2 Btu (IT)/h at 24 V DC |
Diagnostics features
|
Diagnostic functions: |
LEDs (power, link status, data, data rate) |
Ambient conditions
|
MTBF (MIL-HDBK 217F: Gb 25 ºC) |
101.5 Years |
|
Operating temperature: |
0-+60 °C |
|
Storage/transport temperature: |
-40-+70 °C |
|
Relative humidity (non-condensing) |
10-95 % |
Mechanical construction
|
Dimensions (WxHxD): |
25 mm x114 mm x79 mm |
|
Weight: |
105 g |
|
Mounting: |
DIN Rail |
|
Protection class: |
IP30 |
100% Brand New
We can offer the best competitive price for you !
Technical Support
1) One Year W arran ty(after our delivery date)
2)10 Years’ experience in industrial automation
3) Model selecting and double checking before shipping out
For model nos and techinical data, please feel free to contact us !
