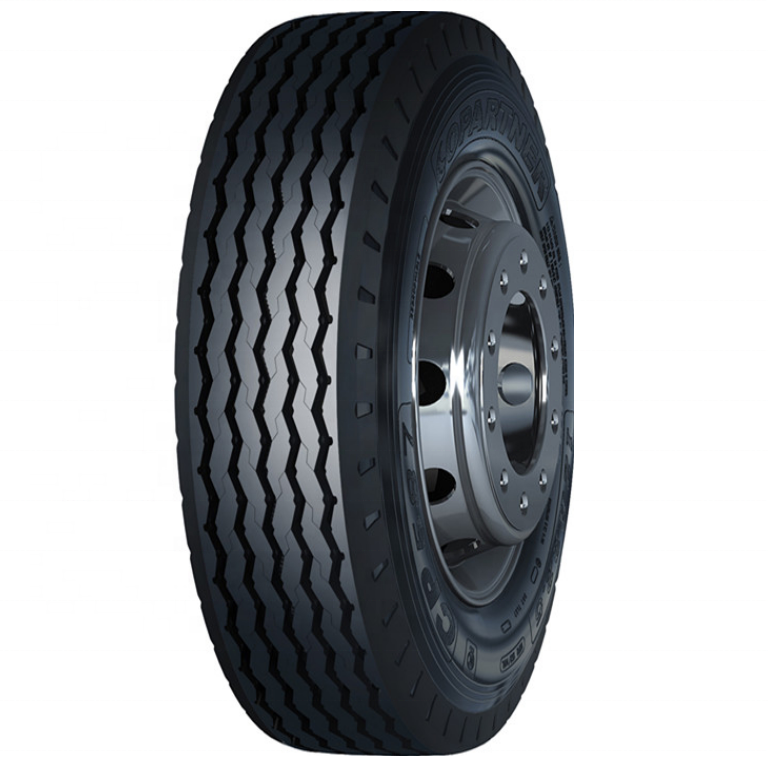

samson 445/65R22.5 truck tires

445/65R22.5 samson tires

Workshop and Equipment : Japan technology + Germany Equipments

Welcome to come and talk business with us, let's make money from 445/65R22.5 samson tires together!

WeeChat: Bronze2007
Skype: trucktire77
Whatsapp/Mobile: 0086-18669764554

Dynamic characteristics

Then a tire is rotated, behavior of the tire without rotating is called "Dynamic Characteristics".

<Rolling Radius>
When a tire is loaded and rotated, the distance made by one rotation divided by π is called "Rolling Radius", which stands for the actual radius at certain speed.

Revolution per mile is calculated by;
=1609344/(2π*Rolling Radius)
=1609344/Distance of a rotation
(in mm)

<Rolling Resistance>
When a vehicle runs, the engine's power will be consumed by the following resistance.
*Aerodynamic Resistance
*Tire Rolling Resistance
*Power train & Mechanical Resistance
In addition, acceleration and uphill resist-ance will also consume power, if applicable.
Rolling resistance consists mostly of energy loss due to flexing movement while rotating.
Rolling resistance is affected by greatly by vehicle speed as well as inflation pressure.
Therefore speed reduction and proper inflation pressure is quite effective way to save fuel trucking company.

<Cornering force>

When a tire is turning with a slip angle, contact patch of tread is deformed by centrifugal force from the road. Then tread tries to return to original shape. Specifically contact patch works like spring. The vehicle receives the reaction force in the opposite direction of deformation, i.e. if a tire steered left, the vehicle receives the force in the opposite direction and turns to left.

<Tire wear>

When an inflated and loaded tire, which is free rolling, enters the contact patch, the contact patch changes to
the road surface, which means that the tread is forced to shrink in both radial and tangential direction. The tread
slips when it returns to original profile and the slip causes a tire to wear.
Therefore flat or stiff tread can give longer tread life as well as deep or wide.

Tubeless and Tube type

In tubeless tire innerliner is attached to the inside of the casing in stead of tube and flap (to protect tube). Therefore in tubeless tire there is less number of parts to manage as well as less heat build up and safer. because of less chance of sudden air loss due to rapture.

Tread pattern

Initially there were only bar or lug type patterns for traction, but then came the circumferential channel or rib pattern that gave lateral grip and finally came the block pattern, a kind of combination derivative. The following is a traditional types of tread pattern for truck and bus tire.
