Quick Details
-
Elongation (≥ %):
-
40
-
Place of Origin:
-
Jiangsu, China
-
Application:
-
Used in chemical, oil, Marine industry
-
Grade:
-
Monel/Inconel/Hastelloy/Nickel Alloy
-
Ni (Min):
-
63%
-
Brand Name:
-
tgpx
-
Keyword:
-

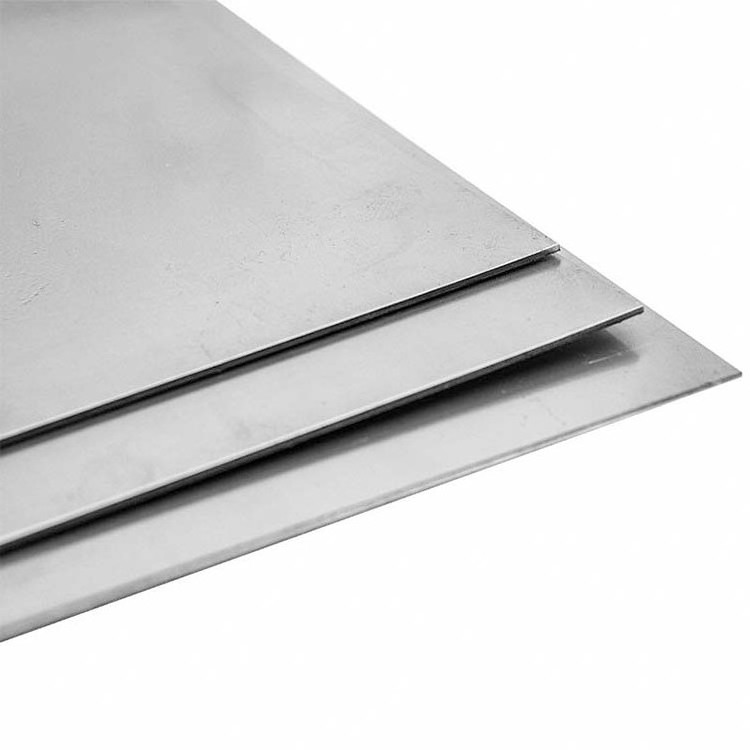

Monel plate
-
Color:
-
Silver
-
Shape:
-
Plate/sheet/bar/pipe
-
Payment term:
-
T/T
-
Package:
-
Standard Sea Worthy Package
-
Usage:
-
Ship building
-
Technology:
-
cold rolled
-
MOQ:
-
500 Kilogram/Kilograms
-
Packing:
-
Wooden pallet or according to customer's request
Quick Details
-
Resistance (μΩ.m):
-
1.5
-
Powder Or Not:
-
Not Powder
-
Ultimate Strength (≥ MPa):
-
730
-
Elongation (≥ %):
-
40
-
Place of Origin:
-
Jiangsu, China
-
Application:
-
Used in chemical, oil, Marine industry
-
Grade:
-
Monel/Inconel/Hastelloy/Nickel Alloy
-
Ni (Min):
-
63%
-
Brand Name:
-
tgpx
-
Keyword:
-
Monel plate
-
Color:
-
Silver
-
Shape:
-
Plate/sheet/bar/pipe
-
Payment term:
-
T/T
-
Package:
-
Standard Sea Worthy Package
-
Usage:
-
Ship building
-
Technology:
-
cold rolled
-
MOQ:
-
500 Kilogram/Kilograms
-
Packing:
-
Wooden pallet or according to customer's request
Monel K500 has approximately twice the tensile strength and triple the yield strength of Alloy 400. The strength of Monel K500 is maintained to 1200 degrees Fahrenheit, but stays ductile and tough down to temperatures of -400 degrees Fahrenheit. Alloy K-500 also stays non-magnetic to -200 degrees Fahrenheit.
Compared with Monel 400,Monel K500 has more good mechanical properties,hardness,corrosion resistance performance and long term stability.
It is widely used on many aspects,like pump shafts,oil well tools and instruments,doctor blades and scrapers,springs,valve trim,faseners,and marine propeller shafts.
Monel K500 International brand:
|
Grade |
USA |
GE |
|
|
UNS |
SEW VDIUV |
|
|
|
Monel K500 |
N05500 |
W.Nr.2.4375 |
|
Chemical Composition:
|
Grade |
Ni% |
Cu% |
Al% |
Ti% |
Fe% |
Mn% |
S% |
C% |
Si% |
|
Monle K500 |
Min63 |
27-33 |
2.3-3.15 |
0.35-0.85 |
Max2 |
Max1.5 |
Max0.01 |
Max0.25 |
Max0.5 |
Physical Properties:
|
Grade |
Density |
Melting Point |
|
Monel K500 |
8.05 g/cm3 |
1288°C-1343°C |
Mechanical Properties:
|
Alloy |
Tensile Strength Rm N/mm2 |
Yield strength RP0.2N/mm2 |
Elongation A5 % |
|
Monel K500 |
1100 |
790 |
20 |
Production Standard:
|
Monel K500 |
Bar |
Wire |
Sheet/Strip |
Forging |
Welding Wire |
|
Standard |
ASTM B865 |
AMS4676 |
ASTM B865 |
ASTM B564 |
ERNiCu-7 |
Monel Form: Pipe / Tube( welded and seamless) ,Plate / Sheet,Bar,Wire, Fittings
Wire: 0.01-10mm
Strip: 0.05*5.0-5.0*250mm
Bar: φ 4 -50mm;Length 2000-5000mm
Pipe: φ6-273mm; δ1-30mm;Length 1000-8000mm
Sheet: δ 0.8-36mm;Width 650-2000mm;Length 800-4500mm
