Quick Details
-
Voltage:
-
380V
-
Power:
-
depend
-
Weight:
-
depend
-
Dimension(L*W*H):
-
depend on th capacity of the plant
-
Warranty:
-
12months
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
flour mill:
-
flour mill
-
Certification:
-
ISO9001
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Chengli
-
Production Capacity:
-
10-100t/h
-
Voltage:
-
380V
-
Power:
-
depend
-
Weight:
-
depend
-
Dimension(L*W*H):
-
depend on th capacity of the plant
-
Warranty:
-
12months
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
flour mill:
-
flour mill
-
Certification:
-
ISO9001

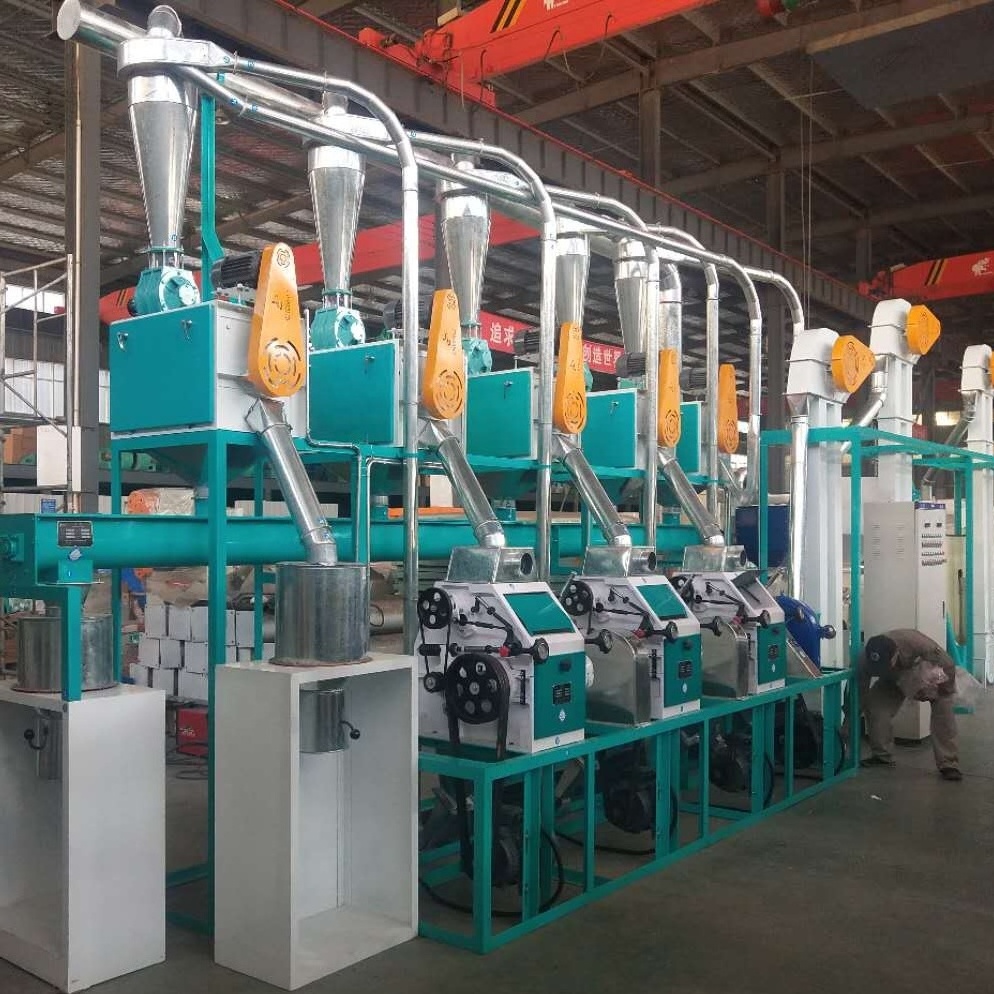

The maize flour mill is a complete production line. It only needs a few workers to operate from the raw materials to the final product. The operation of the maize corn grits mill is simple and easy . It can get corn grits or corn flour according to the customers demand.
Based on the strong technical force, high product development capability, advanced machinery manufacturing facility. Our company has been successfully exported to many commercial maize flour milling machine to many countries and regions, . The flour produced by maize flour mill is one of the staple food of African countries.
Using dry peeling and degerming technology, it can produce different sizes of corn grits and flour at the same time. Corn grits size can be customized as per customers' need in order to meet various of needs such as brewery, snack food, glucose, sugarhouse. Thanks for the dry peeling and degerming technology, husks and germs collected at the end don't need to dried before used for animal feed.
The series of dry milling corn grits machine:
FTA-10 FTA-20 FTA-30 FTA50 FTA-100
Technical data:
| Model | Capacity(t/h) | Total power(kw) | Working space(m) | Power consumption |
| FTA-30 | 30 | 105 | 10*5*5.5 | 55kw*h/t |
| FTA-50 | 50 | 128 | 13*5*6 | 50kw*h/t |
| FTA-100 | 100 | 285 | 27*7*8 | 50kw*h/t |
| Final products | Output yield | Fat content | Size |
| Corn grits | 45-55% | <0.8% | Mesh 8-40 |
| Corn flour | 20-30% | <1.5% | Mesh 50-80 |
| Animal feed | 25% | High | Mormal |
1.Sand content:<0.02%
2.Metal content:<0.003g/kg
3.Water content:13.5-14.5%
4.Color and smell:regular
Function parts of the machine:
End products of the machine:
