Large industrial sand shaker mobile vibrating sand screen machine sand and stone separator

Large industrial sand shaker mobile vibrating sand screen machine sand and stone separator

FOB Reference Price: Get Latest Price

≥1 Pieces

US $1370

≥2 Pieces

US $1300

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: MINKO

Voltage:: 22OV /380V

Dimension(L*W*H):: 4.3*1.1*2.3m, 4.3*1.1*2.3m

Weight:: 800 KG, 800 KG

Product name:: sand and stone separator

Screen diameter:: 1cm(can be changed)

Screen size:: 1.5*0.6m

Conveyer belt:: 4.4*0.5m

Discharge height:: 2.35m

Capacity:: 30-40stere/h

Keywords:: sand and stone separator

Keyword:: Roller Type Screen

Quick Details

Type:: Circular

Marketing Type:: Hot Product 2024

Place of Origin:: Henan, China

Brand Name:: MINKO

Voltage:: 22OV /380V

Dimension(L*W*H):: 4.3*1.1*2.3m, 4.3*1.1*2.3m

Weight:: 800 KG, 800 KG

Product name:: sand and stone separator

Screen diameter:: 1cm(can be changed)

Screen size:: 1.5*0.6m

Conveyer belt:: 4.4*0.5m

Discharge height:: 2.35m

Capacity:: 30-40stere/h

Keywords:: sand and stone separator

Keyword:: Roller Type Screen

Products Description

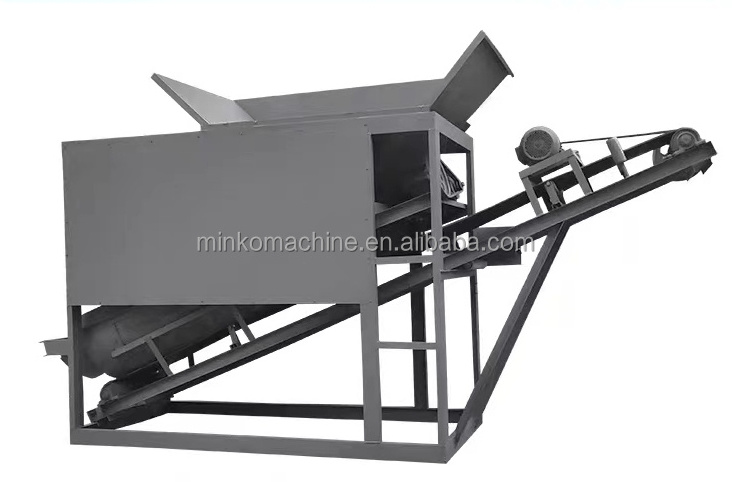

Large industrial sand shaker mobile vibrating sand screen machine sand and stone separator

Large industrial sand shaker mobile vibrating sand screen machine sand and stone separator is driven by double strong power motor. Therefore, it can be used in various fields to separate impurity from sand and many other materials. Under the combined action of the exciting force and the material self gravity, the material is thrown up on the screen surface, jumps or moves forward in a straight line, so as to achieve the purpose of screening and grading the material.Our hot sale sand screening machine has gained a high reputation across the world. As a professional sand screening machine manufacturer, our products have been exported to USA, India, Dubai, Netherlands, and ect.

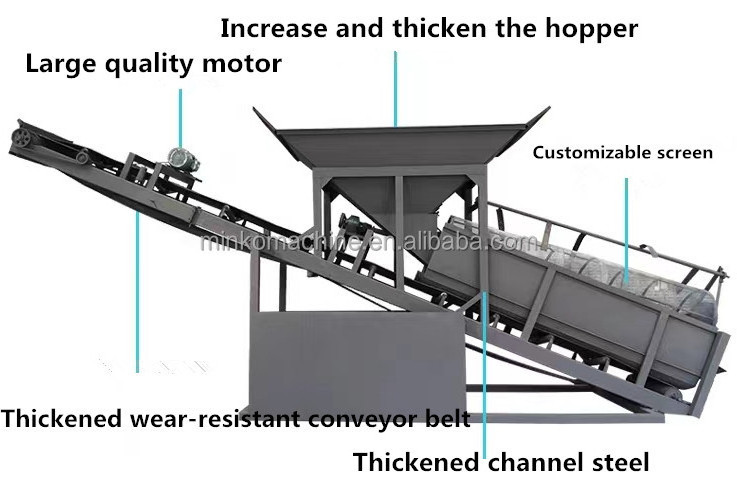

Working Principles: 1. The whole equipment of the cylindrical river sand screening machine is composed of raw material storage hopper, raw material feeding belt conveyor, flat screen mesh, finished sand pile material belt, and abandon stone discharge trough. 2. After the equipment is energized, the loader will load the raw materials. 3. Into the large-capacity storage hopper, the raw material is put into the flat sieve cylinder through the feeding belt, and the rotating sieve cylinder drives the raw material to form the artificial sieve effect of the raw material sliding on the screen surface. 4. Under the pushing and tumbling of the inner blade of the cylinder, the finished sand falls on the finished sand belt through the collecting hopper, and is lifted down by the belt into a finished material pile or directly into the storage hopper. 5. The whole process is continuous and the material classification is clear and accurate

Details Images

Model: 20 drum type

Main motor: 4kw

Vibration motor: 0.5kw

Screen motor: 4kw

Weight: 550kg

Overall size: 4.2x1.1x2.2m

Screen size "1.5x0.6(customizable)

Screen size: 10mm(customizable)

Working efficiency: 30-40m³/h

Rated voltage: 380V

Hopper size: 2*1m

Conveyor belt: 4x0.6m

Model: 20 vibration type

Main motor: 4kw

Vibration motor: 0.5kw

Screen motor: 4kw

Weight: 1100kg

Machine size: 4.5x1.4x2.4m

Screen size: 1.5x0.6(customizable)

Screen size: 10mm(customizable)

Working efficiency: 50-80m3/h

Rated voltage: 380V

Hopper size: 2*1.05m

Conveyor belt: 4x0.5m

Model: 30 drum type

Main motor: 7.5kw

Vibration motor: 0.5kw

Screen motor: 4kw

Weight: 1500kg

Machine size: 8.3x1.6x3.2m

Screen size: 3x0.8(customizable)

Screen size: 10mm(customizable)

Working efficiency: 60-80m³/h

Rated voltage: 380V

Hopper size: 3.2*1.5m

Conveyor belt: 8x0.8m

Model: 50 vibration type Main motor: 11kw Vibration motor: 0.5kw Screen motor: 7.5kw Weight: 2000kg Machine size: 9.2x3.4m Screen size: 3x1.2(customizable) Screen size: 10mm(customizable) Working efficiency: 150-200m³/h Rated voltage: 380V Hopper size: 3.8*1.6m Conveyor belt: 9x1m

Model: 50 drum type

Main motor: 11kw

Vibration motor: 1kw

Screen motor: 4kw

Weight: 2000kg

Machine size: 9.2*1.9*3.4m

Screen size: 3.5x1(customizable)

Screen size: 10mm(customizable)

Working efficiency: 100-120m³/h

Rated voltage: 380V

Hopper size: 3.7x1.6m

Conveyor belt: 9x1m
