Maximum drying temperature 110°C
Kiln Housing Stainless Steel or All Aluminum or Masonry
Insulation Fiber Giass 100mm to 200mm
Gate System Sliding lifting kiln door
Control System: LIGNOMAT Fully Automatic Control System
Wood Probes: Wirebound and Wireless
Fans: Axial Fans 800mm/1200mm,Reversible
Heating Source: Hot Water or Steam or Thermal Oil
|
Product Name
|
Wood drying kiln
|
|
Material
|
Aluminum
|
|
Control system
|
Germany Lignomat control system
|
|
Standard
|
120M3
|
|
Number of motors
|
6 pieces
|
|
Number of fans
|
6 pieces
|
|
Heating medium
|
Steam/hotwater / thermal oil
|
|
Company
|
Sino-Germany joint venture
|
|
Capacity m3
Model
|
Kiln Inner dimensions
W×D×H(m)
|
Stack Dimensions
W×D×H(m) |
Number of Fans
|
|
LDFJ-40
|
4.23×4.68×5.7
|
4.0×4.5×4.5
|
2
|
|
LDFJ-50
|
4.32×7.7×5.7
|
4.0×5.8×4.5
|
3
|
|
LDFJ-60
|
4.32×8.64×5.7
|
4.0×6.6×4.5
|
3
|
|
LDFJ-80
|
6.48×7.7×5.7
|
6.2×5.8×4.5
|
3
|
|
LDFJ-100
|
8.64×7.7×5.7
|
8.4×5.8×4.5
|
5
|
|
LDFJ-120
|
8.64×8.64×5.7
|
8.4×6.6×4.5
|
6
|
|
LDFJ-150
|
12.96×7.7×5.7
|
12.5×5.8×4.5
|
8
|
|
LDFJ-180
|
12.96×8.64×5.7
|
12.5×6.6×4.5
|
9
|
|
LDFJ-200
|
12.96×9.37×5.7
|
12.5×6.8×4.5
|
10
|
|
LDFJ-250
|
12.96×9.37×6.4
|
12.5×8.0×5.0
|
12
|
|
LDFJ-300
|
21.4×9.3×5.7
|
21.0×7.3×4.5
|
15
|
|
LDFJ-400
|
25.68×9.3×5.7
|
25.0×7.3×4.5
|
20
|
|
LDFJ-NS135
|
9.72×8.64×5.4
|
9.4×6.6×4.3
|
7
|
|
LDFJ-NS150
|
10.80×8.64×5.4
|
10.5×6.6×4.3
|
8
|
|
LDFJ-NS160
|
11.88×8.64×5.4
|
11.5×6.6×4.3
|
9
|
Name: High temperature motor
Brand: Hidebrand
Original: Germany
Rated voltage （380V）
Rated power （3.0KW）
Rated revolutions（1426 RPM）
Protection grade (IP55)
Max. working temp (115℃)
Name:
Fiber glass insulation material
Brand:
Hildebrand
Original:
China
Fiber glass insulation to prevent any thermal bridge effect and to optimize the insulation performance within the wall, roof and kiln main door.
High density: 40kg/m3
Name:
Fans
Brand:
Hildebrand
Original:
China
Material: Aluminum
Max air amount（30000m3/ h）
diameter：800mm
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Engineers available to install the machines at client's site.
* Training how to instal the machine, training how to use the machine.
|
Packaging
|
|
|
|
Size
|
40' container
|
|
|
Weight
|
6T
|
|
|
Packaging Details
|
Nude package. Packed in bulk.
For 5-60m3 wood drying kiln, transport by a 20' container.
For 80-120m3 wood drying kiln, transport by a 40' container.
For more than 150m3 wood drying kiln, we need change the standard kiln size to load the product into a 40' container.
|
|
|
Packaging
|
|
|
|
Size
|
40' container
|
|
|
Weight
|
6T
|
|
|
Packaging Details
|
Nude package. Packed in bulk.
One 40' container can load 2 sets 100m3 wood drying kiln.
One 20' container can load max one set 60m3 wood drying kiln.
For more than 150m3 wood drying kiln, we need change the standard kiln size to load the product into a 40' container.
|
|

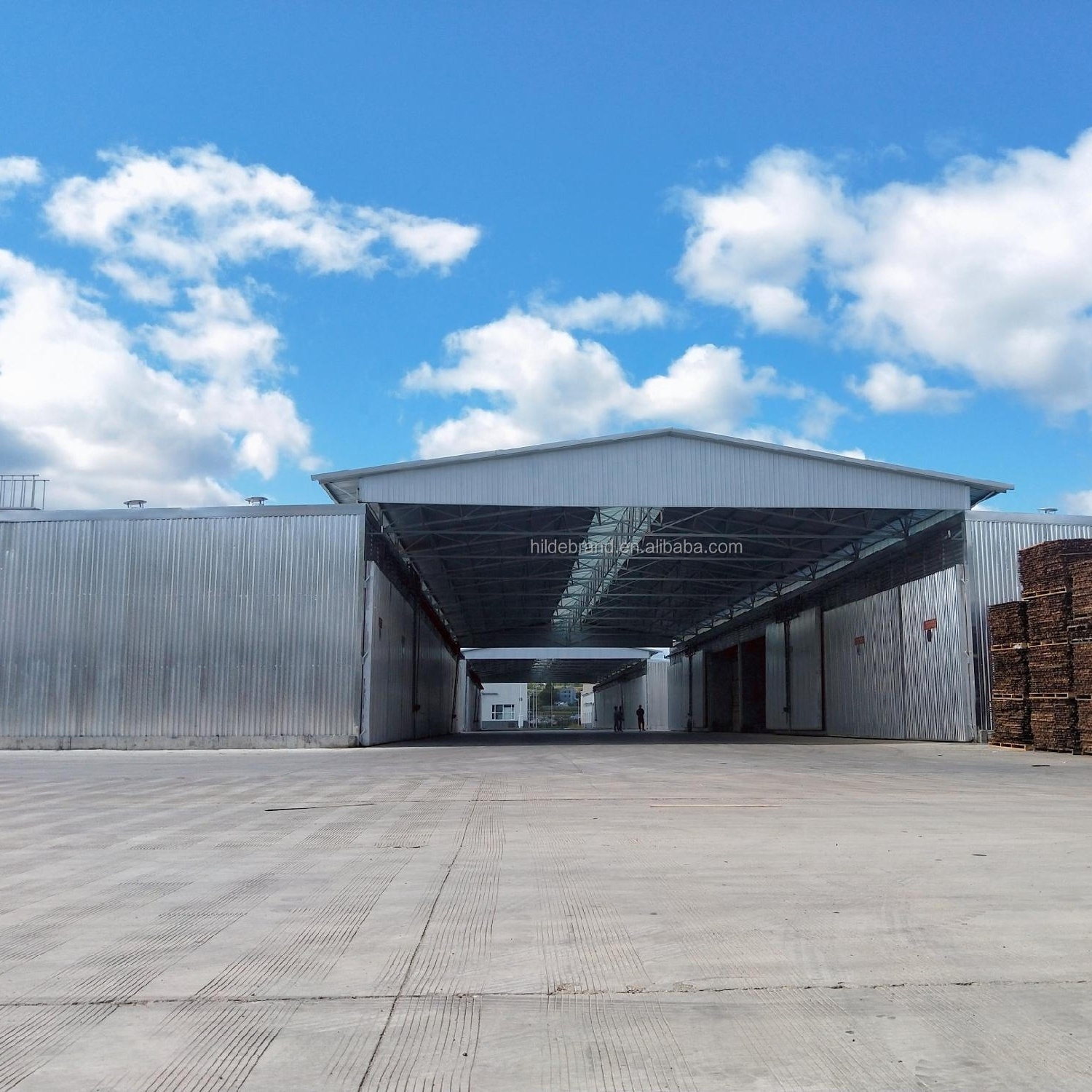

Customer factory
Our Workshop
