Quick Details
-
Power (kW):
-
37
-
Range of Spindle Speed(r.p.m):
-
0 - 800 r.p.m
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
FARFLY
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
1450*885*1650
-
Weight (KG):
-
300 KG
-
Capacity:
-
10-1200kg/h
-
Function:
-
Liquid-Powder Wet Grinding
-
Usage:
-
Horizontal Planetary Ball Mill
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
After Warranty Service:
-
Field maintenance and repair service
-
Local Service Location:
-
None
-
Certification:
-
ISO CE
Quick Details
-
Output (kg/h):
-
30 - 300 kg/h
-
Feeding Size (mm):
-
100 - 150 mm
-
Output Size (mesh):
-
50 - 100 mesh
-
Power (kW):
-
37
-
Range of Spindle Speed(r.p.m):
-
0 - 800 r.p.m
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
FARFLY
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
1450*885*1650
-
Weight (KG):
-
300 KG
-
Capacity:
-
10-1200kg/h
-
Function:
-
Liquid-Powder Wet Grinding
-
Usage:
-
Horizontal Planetary Ball Mill
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
After Warranty Service:
-
Field maintenance and repair service
-
Local Service Location:
-
None
-
Certification:
-
ISO CE

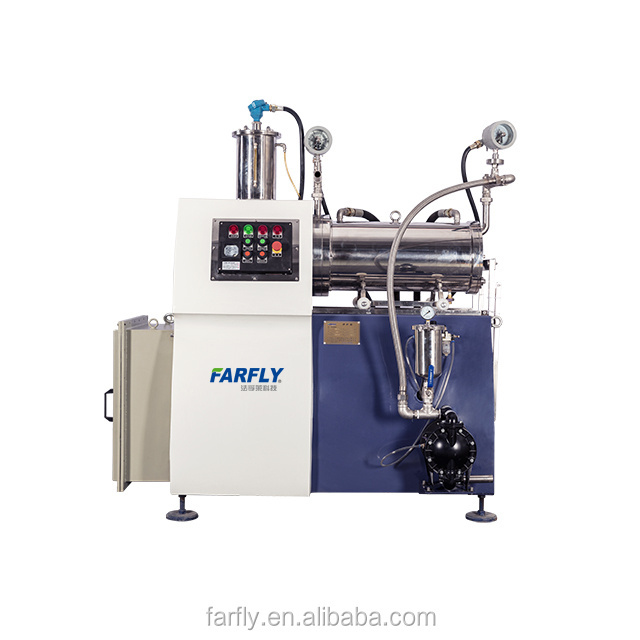

Product Application
Wet process milling equipment which can produce continuously, the working principle is the power delivered form high-speed rotor to milling medium and liquid material, through mutual colliding and laminating, ultrafine result can be achieved.
Dispersing and milling in the field of coating, paint, printing ink, agricultural chemical, pharmaceutical,etc
Specification
|
TYpe
|
Motor(KW)
|
Capacity(L)
|
Pump Flux(L/min）
|
Coolant(m
3
/h)
|
Production(L/h)
|
Milling Medium(mm)
|
Overall Size (LxWxH)(mm)
|
|
FWE-5
|
5.5
|
5
|
2-12
|
0.8-1
|
20-100
|
1.2-2.0
|
1080x760x1300
|
|
FWE-20
|
18.5
|
20
|
2-12
|
1-1.5
|
30-100
|
1.2-2.0
|
1450x885x1650
|
|
FWE-30
|
22
|
30
|
2-12
|
1-1.5
|
50-600
|
1.2-2.0
|
1620x930x1700
|
|
FWE-50
|
30
|
50
|
3-18
|
2-2.5
|
100-1000
|
1.2-2.0
|
1780x930x1780
|
Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
