Quick Details
-
Voltage:
-
220V/380V/415V/CUSTOMIZED
-
Weight:
-
1000 KG
-
Dimension(L*W*H):
-
capacity
-
Product name:
-

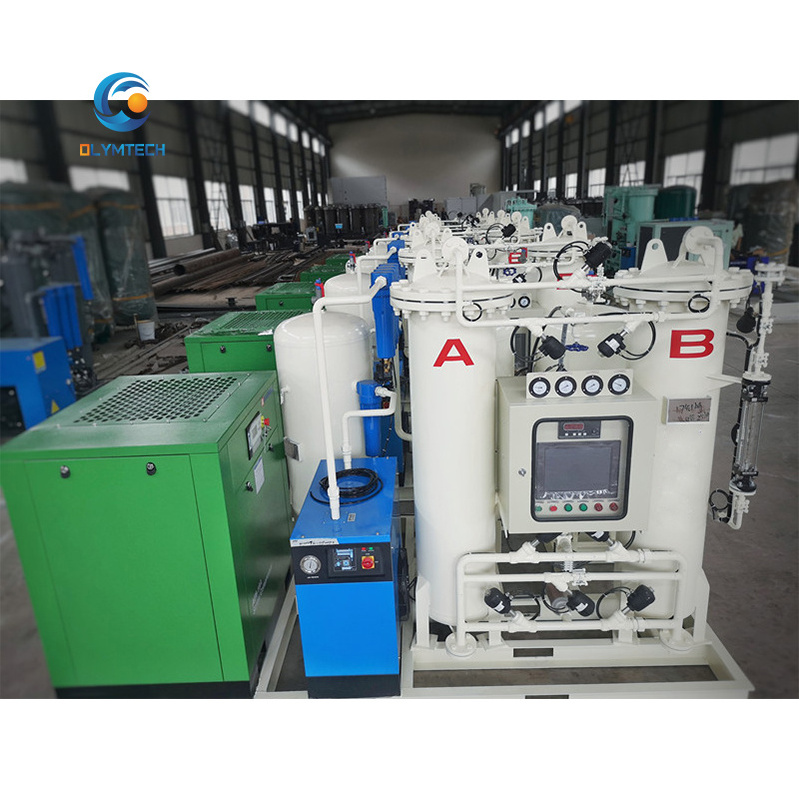

PSA Oxygen&Nitrogen generator
-
Application:
-
Medical & industrial use
-
Function:
-
Oxygen & Nitrogen purifying and filtering
-
Keyword:
-
oxygen generator for medical & industrial use
-
Feature:
-
High Efficiency & Full automatic
-
MOQ:
-
1
-
Advantage:
-
Adjustable
-
Item:
-
Oxygen plant
-
Certification:
-
CE, ISO9001, ISO13485, ISO 9001,ISO13485 and CE
Quick Details
-
Place of Origin:
-
GUANGDONG,CHINA
-
Brand Name:
-
Olymtech
-
Production Rate:
-
99.6%
-
Voltage:
-
220V/380V/415V/CUSTOMIZED
-
Weight:
-
1000 KG
-
Dimension(L*W*H):
-
capacity
-
Product name:
-
PSA Oxygen&Nitrogen generator
-
Application:
-
Medical & industrial use
-
Function:
-
Oxygen & Nitrogen purifying and filtering
-
Keyword:
-
oxygen generator for medical & industrial use
-
Feature:
-
High Efficiency & Full automatic
-
MOQ:
-
1
-
Advantage:
-
Adjustable
-
Item:
-
Oxygen plant
-
Certification:
-
CE, ISO9001, ISO13485, ISO 9001,ISO13485 and CE
|
Model
|
Gas
production
|
Air
consumption
|
Imported
|
Output
|
Dimension
|
|
HBF093-1
|
1
|
0.2
|
DN15
|
DN15
|
800*650
*1720
|
|
HBF093-2
|
2
|
0.4
|
DN15
|
DN15
|
950*950
*1500
|
|
HBF093-3
|
3
|
0.6
|
DN15
|
DN15
|
1050*900
*1865
|
|
HBF093-5
|
5
|
1
|
DN20
|
DN15
|
1450*900
*1825
|
|
HBF093-10
|
10
|
2
|
DN32
|
DN15
|
1450*900
*1825
|
|
HBF093-15
|
15
|
3
|
DN40
|
DN25
|
1800*950
*1940
|
|
HBF093-20
|
20
|
4
|
DN40
|
DN25
|
1850*1025
*2100
|
|
HBF093-25
|
25
|
5
|
DN50
|
DN25
|
2000*1050
*2210
|
|
HBF093-30
|
30
|
6
|
DN50
|
DN25
|
2000*1050
*2530
|
|
HBF093-50
|
50
|
10
|
DN65
|
DN25
|
2200*1250
*2720
|
|
HBF093-60
|
60
|
12
|
DN65
|
DN40
|
2250*1300
*2850
|
|
HBF093-80
|
80
|
16
|
DN80
|
DN40
|
2350*1550
*3060
|
|
HBF093-100
|
100
|
20
|
DN100
|
DN40
|
2500*1600
*3330
|
|
HBF093-120
|
120
|
24
|
DN100
|
DN40
|
2600*1700
*3670
|
|
HBF093-150
|
150
|
30
|
DN150
|
DN40
|
4700*1500
*2980
|
|
HBF093-180
|
180
|
36
|
DN200
|
DN40
|
4700*1600
*3370
|
|
HBF093-200
|
200
|
40
|
DN200
|
DN40
|
5000*1600
*3330
|
|
HBF093-240
|
240
|
48
|
DN200
|
DN50
|
5200*1700
*3670
|
|
HBF093-300
|
300
|
60
|
DN250
|
DN50
|
5900*1600
*4520
|
Principle
Pressure swing adsorption (PSA) oxygen generator uses molecular sieve as adsorbent.
The principle of pressure adsorption and depressurization desorption is adopted to adsorb nitrogen from air, then produce oxygen gas.
Specifications
Oxygen flow rate: 1 ~ 150Nm3/h (under standard state)
Oxygen purity: 93±3% (national standard)
Oxygen pressure: 0.01 ~ 0.5mpa (gauge pressure, stable and adjustable)
Oxygen dew point: - 40 ℃ ~ - 60 ℃ (atmospheric dew point)
Advantages
A unique lotus air distributor is installed at the bottom of the adsorber, which avoids the impact of high-pressure air flow on the molecular sieve and prolongs the service life of the molecular sieve.
At the same time, the gas diffusion is uniform, which greatly improves the service efficiency of the molecular sieve and reduces the energy consumption.
Internal structure diagram
Special air diffusion equipment is set inside the adsorption tower. Firstly, compressed air enters the neck with cyclone equipment, through the alumina ceramic ball specially used for diffusion (using the spherical shape and hardness of the ceramic ball), the gas flows in the shape of "s" during diffusion.
Then, through the double-layer stainless steel wire mesh and the activated molecular sieve, it can fully contact with the carbon molecular sieve. which not only greatly reduces the impact force of gas on carbon molecular sieve, also makes the gas more uniform in the adsorption process, which is conducive to improving the oxygen production efficiency and the service life of the molecular sieve.
Advanced loading theold ensures the service life of the equipment
The molecular sieve is loaded by "Snowstorm" method, so that the distribution of carbon molecular sieve is uniform without dead angle, and it is not easy to be powdered;
the adsorption tower is equipped with multi-stage split gas distribution equipment and automatic compression equipment of molecular sieve cylinder. Ensure the adsorption performance and compression state of molecular sieve, and effectively extend the service life of carbon molecular sieve.
Molecular Sieve
Choosing high quality and high efficient molecular sieve to ensure maximum energy saving, power saving, and low air consumption ratio.
High efficiency molecular sieve is an important step to ensure low air consumption ratio. We use the molecular sieve, which has the characteristics of strong hardness, difficult to powder, high recovery, long service life (up to 10 years). It has the best capacity and stability in China.
Oxygen generatior system flow chat
