High density pulp cleaner machine used in paper making machine
High density pulp cleaner machine used in paper making machine
High density pulp cleaner machine used in paper making machine
High density pulp cleaner machine used in paper making machine
High density pulp cleaner machine used in paper making machine
High density pulp cleaner machine used in paper making machine
High density pulp cleaner machine used in paper making machine
High density pulp cleaner machine used in paper making machine

High density pulp cleaner machine used in paper making machine

FOB Reference Price: Get Latest Price
≥1 Sets
US $6000
≥2 Sets
US $5000
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Place of Origin:
Henan, China
Brand Name:
ANDE
Voltage:
380V
Dimension(L*W*H):
Depending on the type
Weight:
Depending on the type
Product name:
high density cleaner
Material:
Carbon Steel or stainless steel
Application:
Paper pulping
Single equipment rate passing capacity:
400L/Min
Diameter of deslagging outlet:
4-10mm
Materials to remove:
cleaner removing dirt impurity and stone
Max operating temperature:
70℃
Max operating pressure:
0.4Mpa
Name:
cleaner
Certification:
ISO,CE

Quick Details

Type:
Pulping Equipment
Production Capacity:
100%
Max. workable width:
1600mm
Place of Origin:
Henan, China
Brand Name:
ANDE
Voltage:
380V
Dimension(L*W*H):
Depending on the type
Weight:
Depending on the type
Product name:
high density cleaner
Material:
Carbon Steel or stainless steel
Application:
Paper pulping
Single equipment rate passing capacity:
400L/Min
Diameter of deslagging outlet:
4-10mm
Materials to remove:
cleaner removing dirt impurity and stone
Max operating temperature:
70℃
Max operating pressure:
0.4Mpa
Name:
cleaner
Certification:
ISO,CE
Product Description

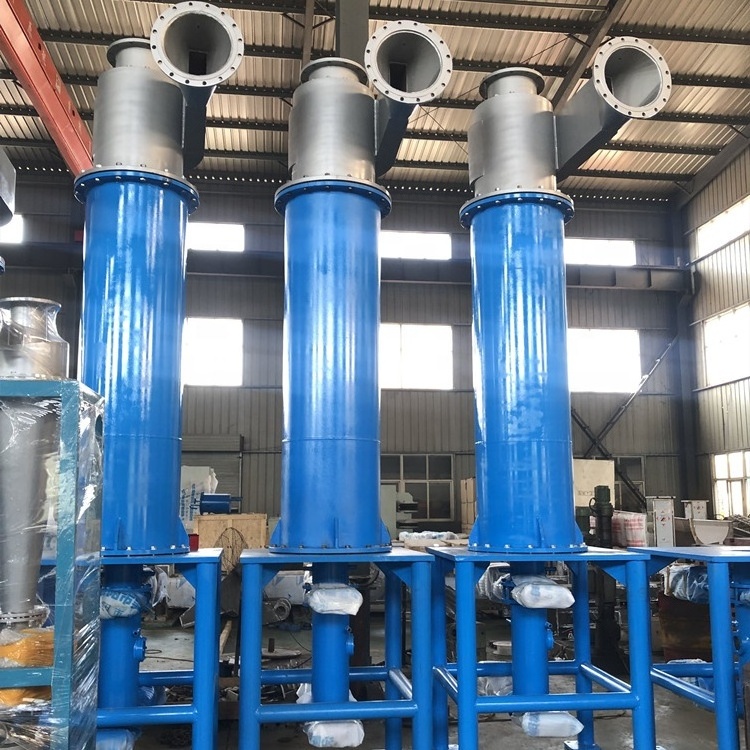

High density pulp cleaner machine used in paper making machine

High Density Cleaner mainly applied to remove all kinds of heavy impurities in paper pulp,like staples,stone,glasses,etc.Volute pulp inflow chamber,the eddy ability is strong and low pressure area subarea is obvious.This makes accepts and impurities separate thoroughly.Wear resistance ceramics cone,long service life.Specially designed long cone has small taper angle and fine cleaning efficiency.Equipment with PLC control cabinet,convenient and easy to control,sufficiently discharge impurities.

Just send your inquiry in the textbox below!

Features

1. Big sight window,easy operation and control

2. Long separating cone and small taper angle,high cleaning efficiency.

3. Cleaning consistency is 2-5%

4. Wear resistance ceramic cone,long service lifetime

5. Special fast open discharging control valve,rejecting sufficiently,easy operation

T echnical data

Model

ZSA1A

ZSA2A

ZSA3B

ZSA4B

ZSA5B

ZSA6B

Flow(L/min)

800-1500

1600-2700

3000-4600

4500-5800

6000-7500

9000-12000

Inlet Consistency(%)

2-5

Inlet pressure(Mpa)

0.3-0.35

Rejecting Type

Automatic
