Quick Details
-
Marketing Type:
-
New Product
-
Reverse Speed(km/h):
-
24
-
Place of Origin:
-
Jiangsu, China
-
Weight:
-
7000 kg
-
Dimension(L*W*H):
-
6880*2375*3150MM
-
Color:
-
Optional
-
Engine Model:
-
4BY3.9
-
Blade cutting angle:
-
28-70
Quick Details
-
Forward Speed(km/h):
-
38
-
Engine Brand:
-
Top brand
-
Working diameter:
-
3048*450MM
-
Marketing Type:
-
New Product
-
Reverse Speed(km/h):
-
24
-
Place of Origin:
-
Jiangsu, China
-
Weight:
-
7000 kg
-
Dimension(L*W*H):
-
6880*2375*3150MM
-
Color:
-
Optional
-
Engine Model:
-
4BY3.9
-
Blade cutting angle:
-
28-70
Products Description

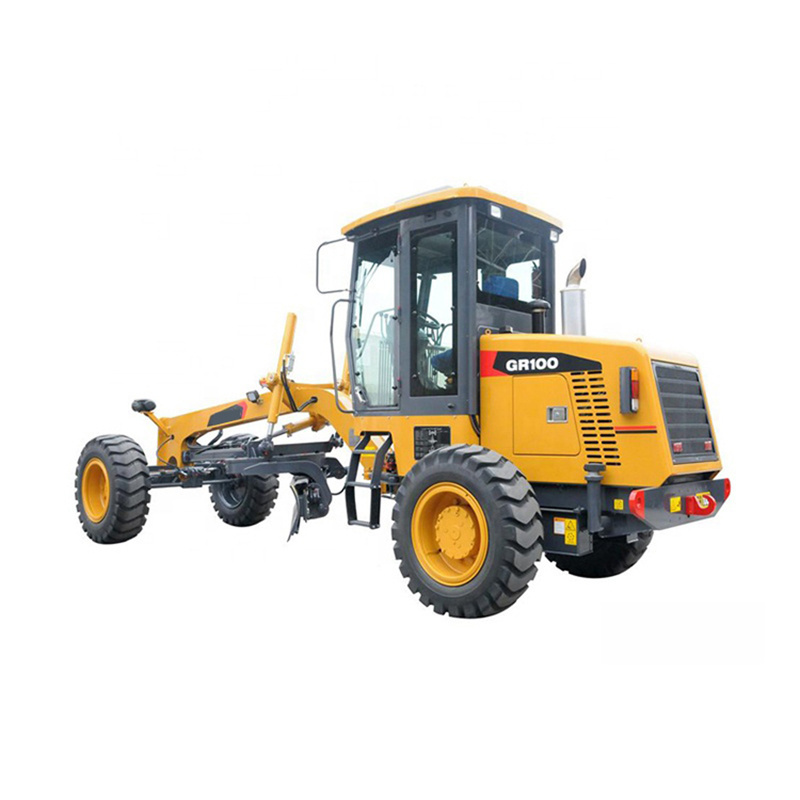

Mini Motor Grader 100HP GR100
GR100 of motor grader are mainly used in the operation of road surface leveling, ditch digging, slope leveling, bulldozing,
scarification and snow removing on the road, airport and farmland. The motor grader is the necessary construction machinery for defense construction, mine construction, urban and rural road construction and irrigation works and farmland improvement.
New appearance.
The adopted articulated frame assists the front wheel to steer, featuring small turning radius and flexibility.
hydraulic controlled brake power shift gearbox includes 6 Forward gears, and 3 Reverse gears.
The adopted international matched hydraulic parts ensure the reliable operation.
The blade movement is hydraulic controlled fully.
The rear axle is three-way drive axle with NO-SPIN self -locking differential.
The reasonable distribution of the adjustable operation panel, seat, lever and instrument guarantees the comfortable and
convenient operation.
The luxury and beautiful cab features wide visibility and good sealing.
The machine can be equipped with front bulldozing plate, rear scarifier, front harrow and auto-leveling system.
scarification and snow removing on the road, airport and farmland. The motor grader is the necessary construction machinery for defense construction, mine construction, urban and rural road construction and irrigation works and farmland improvement.
New appearance.
The adopted articulated frame assists the front wheel to steer, featuring small turning radius and flexibility.
hydraulic controlled brake power shift gearbox includes 6 Forward gears, and 3 Reverse gears.
The adopted international matched hydraulic parts ensure the reliable operation.
The blade movement is hydraulic controlled fully.
The rear axle is three-way drive axle with NO-SPIN self -locking differential.
The reasonable distribution of the adjustable operation panel, seat, lever and instrument guarantees the comfortable and
convenient operation.
The luxury and beautiful cab features wide visibility and good sealing.
The machine can be equipped with front bulldozing plate, rear scarifier, front harrow and auto-leveling system.
Specification
|
Model
|
Model
|
|
GR100
|
|
engine
|
|
|
4BY3.9
|
|
|
rated power/speed
|
kw/rpm
|
74/2200
|
|
performance
spexification |
traveling speed forward
|
km/h
|
5,8,11,17,24,38
|
|
|
traveling speed reveres
|
km/h
|
5,11,24
|
|
|
(f=0.8) traclive force
|
kn
|
41.6
|
|
Operating
spexification |
max.gradeablilty
|
%
|
30
|
|
|
Min.tuming radius using articulation
|
m
|
5.9
|
|
|
Maximum lift above ground
|
mm
|
300
|
|
|
Maximum depth of cutting
|
mm
|
350
|
|
|
Maximum balde position angle
|
.
|
45
|
|
|
Blade cutting angle
|
.
|
28-70
|
|
Blade
|
Circle rebersing rotation
|
.
|
120
|
|
|
Moloboard width×height
|
mm
|
3048×450
|
|
|
Dimension(L×W×H)
|
mm
|
6880×2375×3150
|
|
|
Operating weight(Standard)
|
kg
|
7000
|
