Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
RUICAI
-
Voltage:
-
220V/110V
-
Dimension(L*W*H):
-
450*250*570mm
-
Weight:
-
40 kg
-
PLC Brand:
-
RUICAI
-
Product name:
-
Automatic Corner Rounder
-
Model:
-
D7
-
Maximum Capacity:
-
50mm
-
Maximum Speed:
-
About 130 times/min
-
Maximum Stroke:
-
80mm
-
Available Dies:
-
R2,R3,R4,R5,R6,R7,R8
-
Application:
-
Printing Company, Copy Shop
-
Stable Quality:
-
Yes
Quick Details
-
Type:
-
Paper Cutting Machine
-
Production Capacity:
-
80MM
-
Max. workable width:
-
80MM
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
RUICAI
-
Voltage:
-
220V/110V
-
Dimension(L*W*H):
-
450*250*570mm
-
Weight:
-
40 kg
-
PLC Brand:
-
RUICAI
-
Product name:
-
Automatic Corner Rounder
-
Model:
-
D7
-
Maximum Capacity:
-
50mm
-
Maximum Speed:
-
About 130 times/min
-
Maximum Stroke:
-
80mm
-
Available Dies:
-
R2,R3,R4,R5,R6,R7,R8
-
Application:
-
Printing Company, Copy Shop
-
Stable Quality:
-
Yes

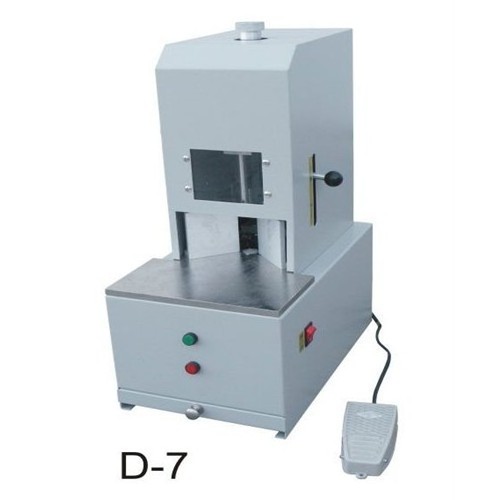

Automatic Corner Rounder / Corner Rounding Machine / Edge Banding Cutting Corner machine
| Electric Corner Rounding Machine / Electric Corner Cutter Machine | ||
| Model | D7 (Imported Motor) | DQ80 |
| Maximum Capacity | 50mm | 80mm |
| Maximum Speed | About 30 times/min | About 56 times/min |
| Maximum Stroke | 80mm | 80mm |
| Available Dies | R2,R3,R4,R5,R6,R7,R8 | |
| Power | 220V/110V (Optional)/0.12kw | |
| Motor | 1400 circle/min | |
| Machine Size | 450×250×570mm | 435×300×50mm |
| Characteristics | ||
|
1. Built-in seven kinds of dies from R2 to R8. Change one die fast in 1.5 seconds.
2. Works with many kinds of soft materials, such as paper, cardboard, PVC, leather, card. tag etc.
3. Ideal for making the album, menu, photo book, tender, brand label, etc.
4. Foot pedal operated. Convenient, high-efficient and security. 5. Built-in waste basket, outage protector of cover opened and special-purpose security button of changing dies, multiple security protective equipment. 6. Designed for table-top and compact unit, easy to use. |
||
