Support USB and solar power charging ways. Efficient solar panel charging and built-in lithium battery(No need to replace), which
ensure the tire pressure monitoring system will work continuously. USB charging takes only 3 hours to fully charge, solar charging
takes 6 hours, and it can work for 30 days in a fully charged state. No matter whether it is sunny or rainy, there is no need to
worry about power problems.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
OEM
-
Model Number:
-
TS01YN
-
Warranty:
-
1 Years
-
Product name:
-
Tire Pressure Monitoring System (TPMS)
-
Pressure range:
-
0-3.7 Bar
-
Working Temperature:
-
-20-80 Celsius
-
MOQ:
-
10pcs
-
Display:
-
Digital
-
Frequency:
-
433.92mhz±20.00mhz
-
Battery life time:
-
24months
-
installation method:
-
independent installation
-
Battery replaceable:
-
Yes
Quick Details
-
Car Fitment:
-
bmw
-
Voltage:
-
3.7-5v, DC5V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM
-
Model Number:
-
TS01YN
-
Warranty:
-
1 Years
-
Product name:
-
Tire Pressure Monitoring System (TPMS)
-
Pressure range:
-
0-3.7 Bar
-
Working Temperature:
-
-20-80 Celsius
-
MOQ:
-
10pcs
-
Display:
-
Digital
-
Frequency:
-
433.92mhz±20.00mhz
-
Battery life time:
-
24months
-
installation method:
-
independent installation
-
Battery replaceable:
-
Yes
Key Feature
【Use Internal Sensors】

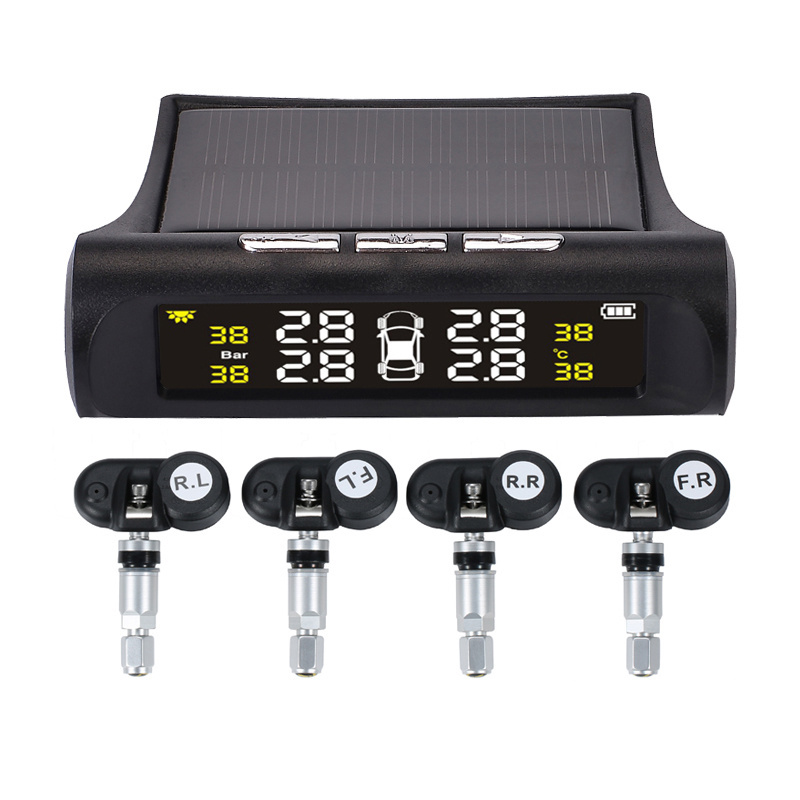

TPMS uses 4 internal 433Mhz sensors, which is installed inside the tire, which is not easy to be stolen and damage; External Sensors need to remove the external sensor every time you inflate, may damage the valve, but the internal sensor will not have such a problem. In addition, our internal sensor is faster and more accurate than the external sensor, so that the display module in the car can observe the changes in tire pressure and temperature in a more timely manner.
【Real-time Detection & 5 Alert Modes】
Provide stable and reliable wireless real-time monitoring system,and works well on the highway. Tpms internal sensor system has 5 alarm modes to remind you of the abnormal situation with visible and audible alerts (LED flashlight and warming beep), including a High-pressure alarm, Low-pressure alarm, High-temperature alarm, Sensor low battery alarm, Display low battery alert. The pressure and temperature alarm values can be set by the user themselves.
【2 Way Charging】
Tire pressure monitoring system is solar-powered, but Our TPMS can also be charged through USB when the sun isn't shining. NOTE: In the first installation, switch on the monitor first, then insert the sensor; If there is no data displayed on the display after installation, Inflate and deflate tires or please after 30 km of driving, all data will be shown. The sensor must be activated by motion.
【Big LCD Screen Backlight & Non-slip mat】
Easy to read in any lighting environment. A high-end high-definition LCD display with 3 levels of brightness, low, medium, and high, helps to read data clearly. The TPMS display can display data for 4 tires at a time, including temperature (°F/°C) and pressure (PSI/BAR), etc. In addition, We provide anti-skid pads for monitors to prevent slipping when the vehicle is bumpy.
【Power Saving and Long Working-life Sensor】
After power on, the vehicle will go to sleep after being stationary for more than 120 seconds to save power, and it will automatically power on when the vehicle is running or vibrating
Product Description





USB & Solar Power
SOLAR POWER & USB CHARGING
Support USB cable charging, and solar charging. Efficient solar panel charging and built-in lithium battery(No need to replace),it
does not occupy the car cigarette lighter socket, ensure the tire pressure monitoring system will work continuously.
does not occupy the car cigarette lighter socket, ensure the tire pressure monitoring system will work continuously.
REAL TIME MONITORING DISPLAY
Loud volume reminder, no matter where you install it, you can easily read the data and know your driving situation.
SAFE & RELIABLE
Including fast leak alarm/slow leak alarm/high temperature alarm/high pressure alarm/sensor fault alarm/low battery alarm 6
modes. Whether it is hot or cold,the machine will automatically protects,in order to
ensure your driving safety.
modes. Whether it is hot or cold,the machine will automatically protects,in order to
ensure your driving safety.
Specification
item
|
value
|
|
Receiver
|
|
|
Transmission frequency
|
433.92MHz
|
|
Power supply
|
Solar / USB / built-in battery
|
|
Operating voltage
|
DC-5V input
|
|
Battery
|
400mAh
|
|
Operating temperature
|
-20 -- 85℃
|
|
Storage temperature:
|
-40 -- 125℃
|
|
Sensor
|
|
|
Transmission frequency
|
433.92MHz
|
|
Pressure range
|
0 – 3.7 bar / 0 – 54 psi
|
|
Low pressure alarm value
|
1.8 bar
|
|
High pressure alarm value
|
3.0 bar
|
|
Waterproof
|
IP67
|
|
Battery
|
Built-in CR2450 button battery(Not removable and replaceable)
|
|
Battery life
|
2-3 years
|
|
Packing list
|
|
|
1 x TPMS receiver, 4 x Sensor, 1 x USB Cable,
1 x Stickers, 1 x User Manual
Gift box size: 15*14*6 CM
Weight: 320±10g Cartons: 50 sets/cartons G.W: 17.5KG/cartons Cartons size: 67*32*41 CM |
|
|
|
|
