Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
EVK
-
Model Number:
-
EVK-Flange Spigot
-
Product name:
-

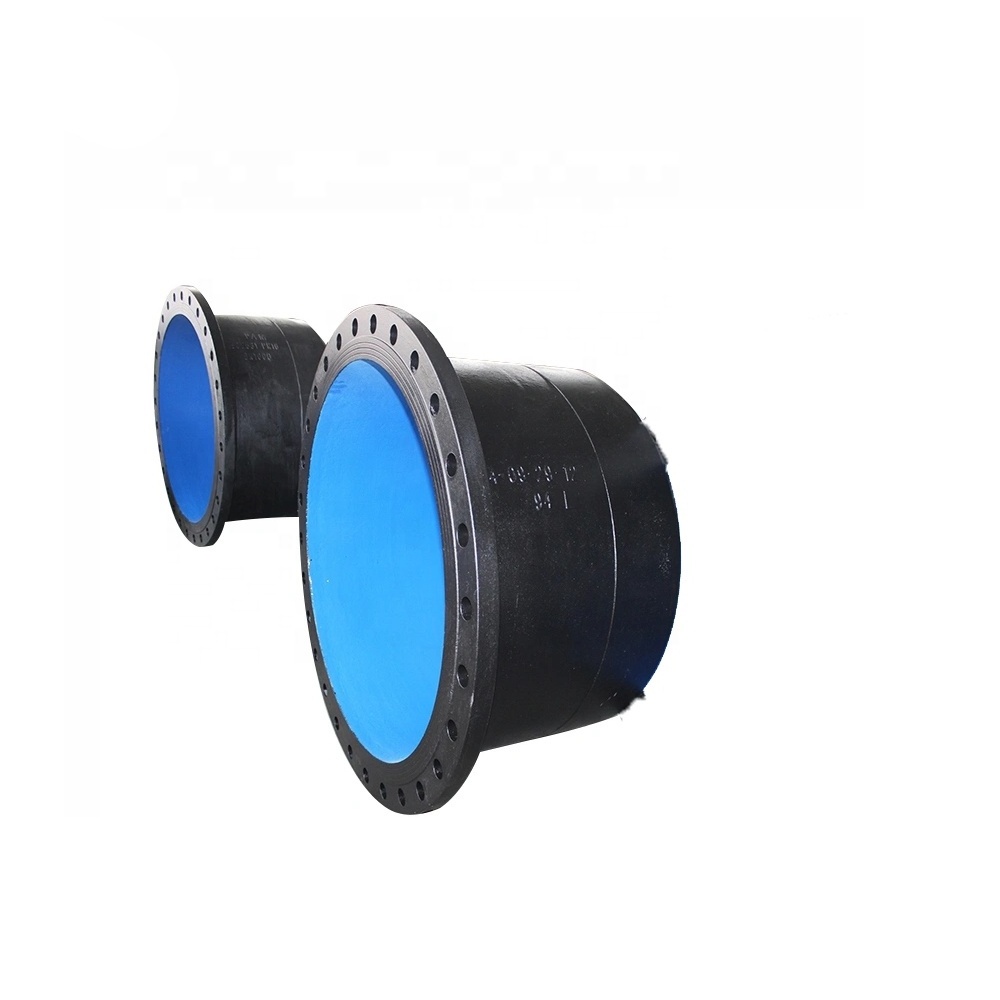

Ductile Iron Pipe Fitting
-
Size:
-
DN50-DN2000
-
Standard:
-
ASME, ANSI, DIN, JIS, BS, GB, GS, KS, API
-
HS Code:
-
7307110000
-
Color:
-
Black, Blue, Red, Yellow,etc
-
Inspection:
-
Third Party Inspection
-
Application:
-
Water Supply Project, Drainage, Sewerage, Irrigati
-
Surface treament:
-
Epoxy Paint, Bitumen Paint, Epoxy Powder Coating
-
Surfce Inside:
-
Portland Cement Mortar Lining,Bitumen Paint, Epoxy
-
Accessories:
-
Gaskets,Bolts and Nuts Available Upon Request
Quick Details
-
Technics:
-
Casting
-
Shape:
-
Reducing
-
Head Code:
-
ROUND
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
EVK
-
Model Number:
-
EVK-Flange Spigot
-
Product name:
-
Ductile Iron Pipe Fitting
-
Size:
-
DN50-DN2000
-
Standard:
-
ASME, ANSI, DIN, JIS, BS, GB, GS, KS, API
-
HS Code:
-
7307110000
-
Color:
-
Black, Blue, Red, Yellow,etc
-
Inspection:
-
Third Party Inspection
-
Application:
-
Water Supply Project, Drainage, Sewerage, Irrigati
-
Surface treament:
-
Epoxy Paint, Bitumen Paint, Epoxy Powder Coating
-
Surfce Inside:
-
Portland Cement Mortar Lining,Bitumen Paint, Epoxy
-
Accessories:
-
Gaskets,Bolts and Nuts Available Upon Request
Products Description
|
Body Material
|
|
|
|
Ductile iron grade 500-7/450-12 in accordance with ISO 1083 .
|
|
|
|
Flange drilled
|
|
|
|
PN10,PN16 or PN25 drilling in accordance with ISO7005-2,BS4504, EN1092-2, DIN2501
|
|
|
|
Standard
|
|
|
|
ISO2531, BS EN545, EN598, BS4772
|
|
|
|
Specification
|
|
|
|
DN50 to DN2000, K12/14
|
|
|
|
Application
|
|
|
|
Water supply project, drainage, sewerage, Irrigation ,water pipeline
|
|
|
|
Fluid temperature
|
|
|
|
0°C-50°C, excluding frost .
|
|
|
|
Coating
|
|
|
|
External coatings
|
Internal coatings
|
|
|
zinc coating+bitumen coating
|
cement mortar lining
|
|
|
liquid epoxy painting
|
liquid epoxy painting
|
|
|
epoxy applied by FBE
|
epoxy applied by FBE
|
|
|
according to customers' requirements
|
according to customers' requirements
|
|
|
Joints type
|
|
|
|
Flange, Typon joint(push on joint); Bolted Gland K type Joint
|
|
|
|
Reference rules
|
Inspection
|
|
|
Dimensions and testing in accordance with ISO2531/ EN545
|
SGS, BV, third party inspection
|
|
|
Accessories
|
|
|
|
Gaskets, bolts and nuts available upon request
|
|
|
|
Sample
|
|
|
|
Sample for free, but you should pay for the freight charge for the samples
|
|
|
|
Payment
|
|
|
|
30% T/T,Balance before shippment
|
|
|
|
Packing methods
|
|
|
|
Wooden case/pallet with plastic layer, or as per customer's requirements
|
|
|
