Quick Details
-
Material:
-
Aluminum Alloy
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Togen
-
Model Number:
-
VDL150-3
-
Product name:
-
Aluminum exterior decorative louver pergola gazebo
-
Color:
-
Color Chart Or Customize
-
Finishing Treatment:
-
PVDF, Power Coating
-
MOQ:
-
1 Set
-
Packing:
-
Standard Package
-
Brand:
-
Togen
Quick Details
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation
-
Application:
-
HEVAC Room, Pullic Buliding, Hotel, Hospital, Residential Buildings
-
Design Style:
-
Horizontal, Vertical
-
Material:
-
Aluminum Alloy
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Togen
-
Model Number:
-
VDL150-3
-
Product name:
-
Aluminum exterior decorative louver pergola gazebo
-
Color:
-
Color Chart Or Customize
-
Finishing Treatment:
-
PVDF, Power Coating
-
MOQ:
-
1 Set
-
Packing:
-
Standard Package
-
Brand:
-
Togen
PRODUCT DETAILS

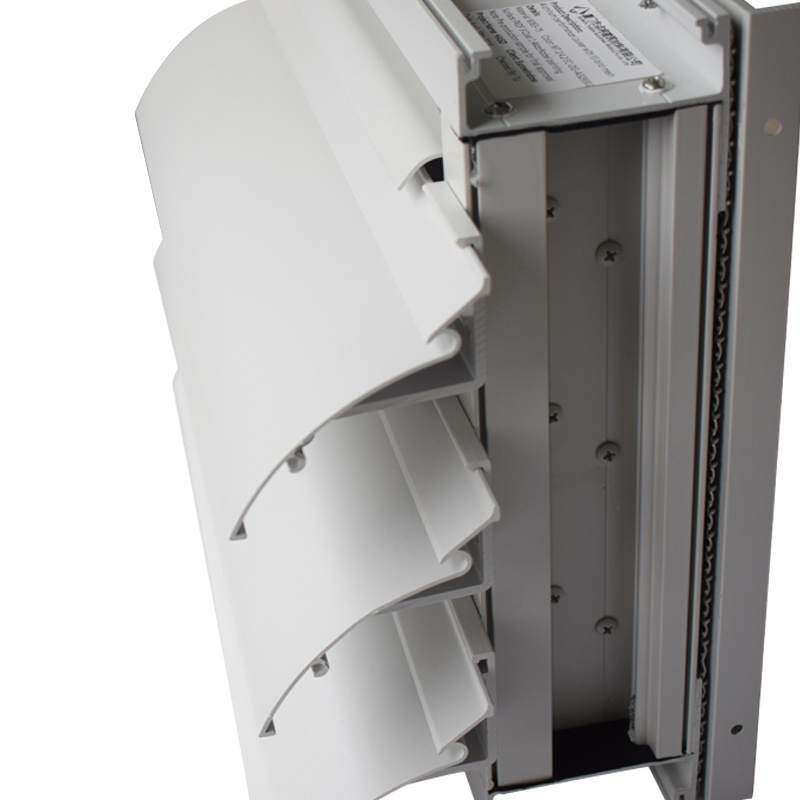

MULLION LINE LOUVRE
Introduction
The Mullion Line series comes complete with visible support mullions. It has proven to be a real workhorse, withstanding rigorous testing to offer great rain defence performance and excellent airflow characteristics.
Product Drawing
|
Louvre Model
|
|
AL150RS-9
|
AL75RS
|
|
|
Blade Configuration
|
|
Double
|
Single
|
|
|
System Depth
|
|
150 mm
|
79 mm
|
|
|
Pitch
|
|
75 mm
|
62 mm
|
|
|
Vsiual Blade Oreientation
|
|
Horizontal
|
Horizontal
|
|
|
Visual Impact Of Mullions/Jambs
|
|
Hidden
|
Visible
|
|
|
Rainwater Penetration
(Airflow Velocity In M/S)
|
0.0
|
A
|
C
|
|
|
|
0.5
|
A
|
C
|
|
|
|
1.0
|
B
|
C
|
|
|
|
1.5
|
B
|
D
|
|
|
|
2.0
|
C
|
D
|
|
|
|
2.5
|
C
|
D
|
|
|
|
3.0
|
D
|
D
|
|
|
|
3.5
|
D
|
D
|
|
|
Airflow Coefficient
|
|
0.253
|
0.355
|
|
|
Airflow Class
|
|
3
|
2
|
|
|
Aireflow Rating
|
|
Good
|
Very Good
|
|
PROJECT REFERENCE
Hoi An South Development -- Vietnam
Our Tampines HUB -- Singapore
Jalan Besar Mrt -- Singapore
Google Data Centre
Kingston Mapletree -- Singapore
