Quick Details
-
Crimping range:
-
Thin-wall ss pipe;Copper pipe 12-54mm;Pex-pipe12-108mm
-
Pressing cycle:
-
4s(DN25-SS304)
-
Standard battery:
-
18v 4.0Ah Li-ion
-
Measurement:
-
450X81X128(without jaws)
-
Charger:
-
Input Ac100-240V 50/60Hz Output DC 18/14.4 3A
-
Color:
-
Blue
-
Weight:
-
10kg
Quick Details
-
Type:
-
Hydraulic Crimping Tools
-
Rated power:
-
32KN
-
Stroke:
-
40mm
-
Crimping range:
-
Thin-wall ss pipe;Copper pipe 12-54mm;Pex-pipe12-108mm
-
Pressing cycle:
-
4s(DN25-SS304)
-
Standard battery:
-
18v 4.0Ah Li-ion
-
Measurement:
-
450X81X128(without jaws)
-
Charger:
-
Input Ac100-240V 50/60Hz Output DC 18/14.4 3A
-
Color:
-
Blue
-
Weight:
-
10kg
Why Choose Us
Products Description

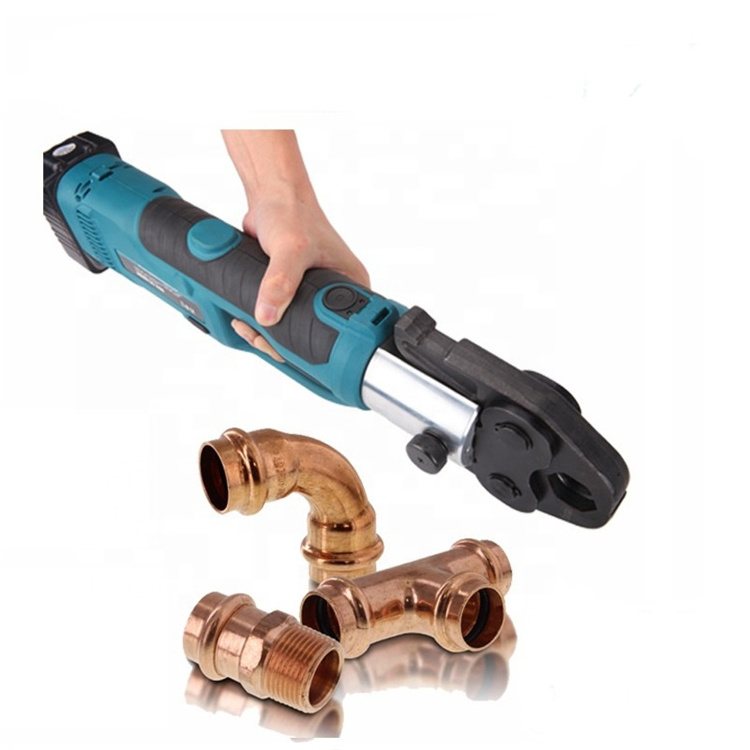

Battery press tool with in-line grip.
SPEED UP 20% compare with old type.
Only 3-4.5S to finish one cycle press
The tool comes standard with two 18v,4.0Ah Lion-batteries and one charger. It can achieve over 350 cycles per charger.
Motor drivers, Micro-computer control system, OLED screen and double valve hydraulic system.
|
Rated power
|
32KN
|
|
|
Stroke
|
40mm
|
|
|
Crimping range
|
Thin-wall stainless steel pipe, Copper pipe: 12-54mm
|
|
|
|
Pex pipe, XPAP: 12-108mm
|
|
|
Note: Different pipes in different material causer pressue changes accordingly.
|
|
|
|
Pressing Cycle
|
4s (DN 25-SS304)
|
|
|
Standard battery
|
18V 4.0Ah Li-ion
|
|
|
Working temperature
|
-10℃~+50℃
|
|
|
Measurement
|
450x81x128mm (without jaws)
|
|
|
Sealing ring of cylinder
|
1set
|
|
|
Sealing ring of safety valve
|
1set
|
|
|
Package
|
Plastic box
|
|
