Quick Details
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
35*25*25cm
-
Weight (KG):
-
25
-
Power (kW):
-
370W
-
Max. Grinding Length:
-
25 mm
-
Max. Grinding Diameter:
-
25 mm
-
Power Source:
-
Electricity
-
speed:
-
5300rpm
-
Grinding range:
-
4-14mm
-
Option wheel:
-
CBN wheel for HSS material
-
Usage:
-
can grind 2-flute,3-flute,4-flute
-
Standard wheel:
-
SDC for carbidematerial
-
Application:
-
grinding
Quick Details
-
Wheel Size(mm):
-
100*50*20mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
WADJAY
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
35*25*25cm
-
Weight (KG):
-
25
-
Power (kW):
-
370W
-
Max. Grinding Length:
-
25 mm
-
Max. Grinding Diameter:
-
25 mm
-
Power Source:
-
Electricity
-
speed:
-
5300rpm
-
Grinding range:
-
4-14mm
-
Option wheel:
-
CBN wheel for HSS material
-
Usage:
-
can grind 2-flute,3-flute,4-flute
-
Standard wheel:
-
SDC for carbidematerial
-
Application:
-
grinding

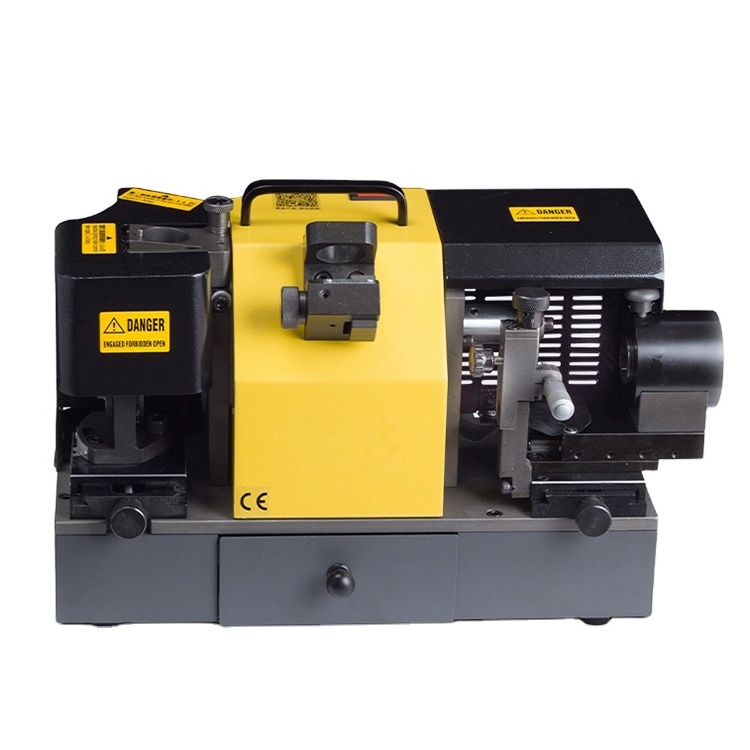

CNC Surface Milling Cutter Grinding Machine And Cutting Tool Grinder
<MACHINE PARAMETERS>
Features:
1.The machine can quickly grind 2 end, 3 blade, 4 blade, 6 edge cemented carbide and high speed steel universal end milling cutter.
2.Suitable for straight shank milling cutter, accurate and quick grinding, simple operation, easy grinding without skill.
3.The milling cutter part can finish milling with different cutting edges and different diameters for the blade edge, the front bevel angle and the back slope angle, and a grinding wheel.
4.A diamond grinding wheel and a grinding wheel can be used to complete all processes, accurate angles, long service life, great cost savings, and improved use efficiency.
5.According to different cutting materials, adjust the sharpness of the sharpness of the tool tips, improve the life and cutting efficiency and machining accuracy of the milling cutter.
|
Model |
WJ -313 |
WJ -330 |
|
Grinding Diameter |
3-13mm |
13-30mm |
|
Power |
220V/300W |
220V/450W |
|
Collet Size |
ER20 |
ER40 |
|
Work Speed |
4500rpm |
4500rpm |
|
Grinding Angle |
0°-5° |
0°-5° |
|
Apex Angle |
0° |
° |
|
The First Relief Angle |
8° |
8° |
|
The Second Relief Angle |
35° |
35° |
|
Grinding Wheel |
CBN for HSS)*1, (SDC for Carbide optional) |
|
|
Package Size |
37×25×26cm |
42×30×31cm |
|
G.W./N.W. |
15 /13kg |
31 /25kg |
< SHOW DETAILS >
Universal grinding machine can be used to grind all kinds of high-speed steel and carbide engraving tools and single or multi-edge tools with the shape of semi-round or reverse taper angle. The grinding indexing head can be operated in 24 positions to facilitate grinding of any angle and shape. It is only necessary to replace the accessories on the indexing head without any complicated steps. End mills, sculpting knives, drills, vehicles Knife, ball end milling cutter.
