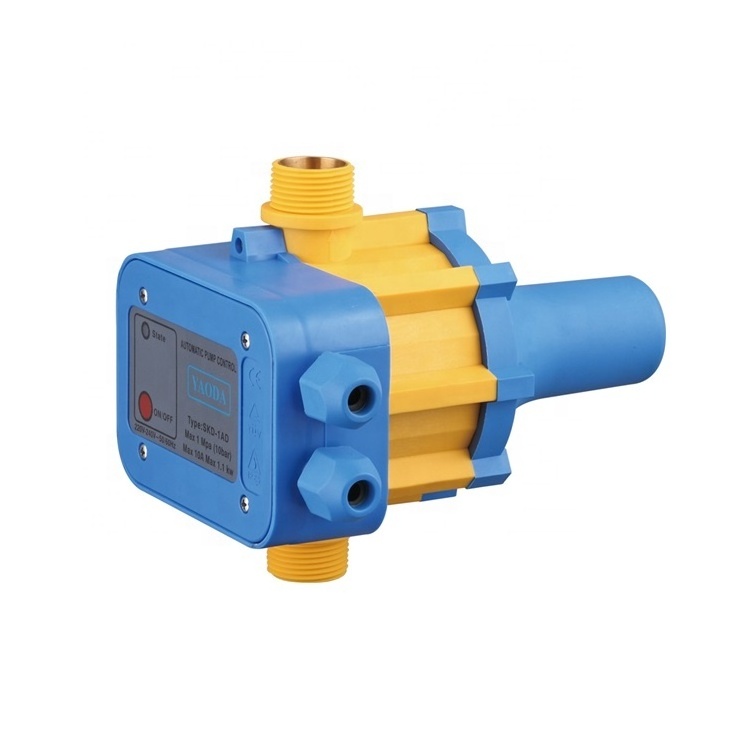

Yaoda Brand PC-10 Water Pump Automatic Pressure Adjustable Electronic Pressure Control Switch

FOB Reference Price: Get Latest Price

≥500 Pieces

US $14.59

≥1000 Pieces

US $13.59

≥2000 Pieces

US $12.59

≥5000 Pieces

US $11.59

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: YAODA

Model Number:: SKD-1

Max. Current:: 10A

Max. Working Pressure:: 10bar

Certificate:: TUV, CE, ROHS, ISO

Max Power:: 1.1KW

Starting pressure::: 1.5BAR or 2.2BAR

Color:: it can be made as customers' requirement

Rated voltage:: 220V-240V 110V-120V 110V-240V

Current:: 10A

Certification:: CE

Quick Details

Whether the smart:: Yes

Max. Voltage:: 220-240V

Place of Origin:: Zhejiang, China

Brand Name:: YAODA

Model Number:: SKD-1

Max. Current:: 10A

Max. Working Pressure:: 10bar

Certificate:: TUV, CE, ROHS, ISO

Max Power:: 1.1KW

Starting pressure::: 1.5BAR or 2.2BAR

Color:: it can be made as customers' requirement

Rated voltage:: 220V-240V 110V-120V 110V-240V

Current:: 10A

Certification:: CE

Product Overview

Automatic Water Pump Pressure Controller Auto Control Unit Electronic Switch Automatic Pressure Control

* This electronic intelligent water pump automatic controller can start or stop the pump according to the detected data of water source state, water volume and pipeline pressure change.

FEATURES AT A GLANCE

1.Starting Pressure: 1.5bar or 2.2bar
2.Max Rated Current: 10A
3.Max Allowable Pressure: 10bar
4.Rated Voltage: 110V or 220V
5.Frequency: 50/60HZ
6.Max Ambient Temperature:40℃
7.Max Liquid Temperature:60℃
8.Protection Degree: IP65

Right elevation

Left elevation

Front elevation

PRODUCT SPECIFICATIONS

Model	Input Voltage	Frequency	Max Current	Max Power	Max Pressure	Connection
SKD-1	110V	50/60HZ	10A	1100(750)W	10bar	R1"
SKD-1A	110V	50/60HZ	10A	1100(750)W	10bar	R1"
SKD-1D	110V	50/60HZ	10A	1100(750)W	10bar	R1"
SKD-1AD	220V	50/60HZ	10A	2200(1100)W	10bar	R1"
PC-10	220V	50/60HZ	10A	2200(1100)W	8bar	R1"

PRODUCT CONFIGURATION

High quality panel board

Superior connect bronze

High strength material

SALES AND SERVICE NETWORK

Successful Project

Project in Thailand

Project in India

Project in Russia

SIMILAR PRODUCTS

FAQ

Q1.Are you a manufacturer or a trading company?
A: Yaoda company is a professional automatic pressure control manufacturer with over 20 years' experience.

Q2.What's your payment terms?
A: T/T, L/C is also acceptable.

Q3.What's your MOQ?
A: Trial order is OK.

Q4.What's your delivery time?
A: Finish the production within 30 days once we receive the advance.

Q5.What's your warranty for water pump?
A:1 year warranty for pressure controller

Q6.Can we make the products with OEM?
A: Yes, of course. We can do oem for you.

Q7. Do you have any other pump accessories?
A: Yes, we are the manufacturer of pressure tank for water pump. Its capacity range is 1L-300L, the products pressure switch andautomatic pressure control is also our own products.
