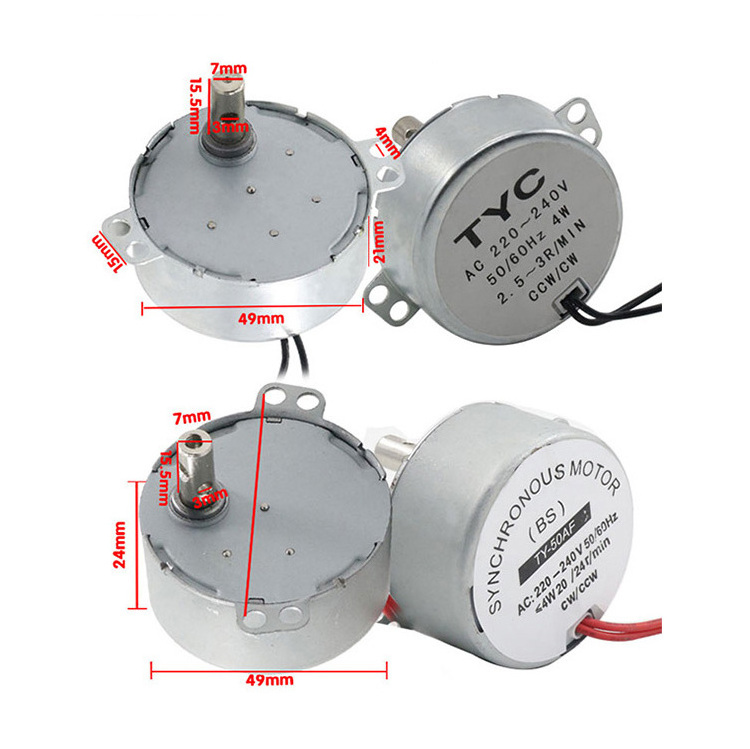

The 220V 49KTYZ AC permanent magnet synchronous motor has a permanent magnet rotor, high efficiency, and low noise. It has an
adjustable speed range of 2.5-30 rotations per minute and comes with a gear reducer for greater torque and lower speed. Its small
size and low-speed characteristic make it suitable for use in small spaces and precision instruments.
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
XD-49KTYZ
-
Frequency:
-
50/60Hz
-
Product Name:
-
AC synchronous motor
-
Speed:
-
2.5/5/10/20/30RPM
-
Rated Power:
-
4W
-
Voltage:
-
220V
-
Motor size:
-
49*20mm
-
Output shaft size:
-
7*15.5mm
-
Motor weight:
-
0.086kg
-
Certification:
-
CE/ROHS /ISO9001
-
Motor type:
-
49ktyz
-
purveyor:
-
Guangdong Xinda Electric Motor Co., Ltd
Quick Details
-
AC Voltage:
-
220V/customize
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
XD
-
Model Number:
-
XD-49KTYZ
-
Frequency:
-
50/60Hz
-
Product Name:
-
AC synchronous motor
-
Speed:
-
2.5/5/10/20/30RPM
-
Rated Power:
-
4W
-
Voltage:
-
220V
-
Motor size:
-
49*20mm
-
Output shaft size:
-
7*15.5mm
-
Motor weight:
-
0.086kg
-
Certification:
-
CE/ROHS /ISO9001
-
Motor type:
-
49ktyz
-
purveyor:
-
Guangdong Xinda Electric Motor Co., Ltd
Product Description
49KTYZ AC permanent magnet synchronous motor
|
item
|
value
|
|
Warranty
|
3months-1year
|
|
Place of Origin
|
China
|
|
|
Guangdong
|
|
Brand Name
|
XD
|
|
Model Number
|
XD-49KTYZ
|
|
Type
|
Synchronous Motor
|
|
Frequency
|
50/60Hz
|
|
Phase
|
Single-phase
|
|
Protect Feature
|
Drip-proof
|
|
AC Voltage
|
220V/customize
|
|
Efficiency
|
IE 4 IE 3 IE 2
|
|
Product Name
|
AC synchronous motor
|
|
Application
|
General Machinery
|
|
Rated Power
|
4W
|
|
Voltage
|
220V
|
|
Certification
|
CE/ROHS /ISO9001
|
|
Usage
|
Machinery Equipment
|
|
Speed
|
2.5-30RPM
|
|
Keywords
|
Electric Synchronous AC Motor
|
|
Motor type
|
AC permanent magnet synchronous motor
|
|
Brand
|
XD
|
Specification
