Quick Details
-
Inverter Efficiency:
-
98%
-
Place of Origin:
-
shenzhen china
-
Brand Name:
-
SUMRY
-
Model Number:
-
MPS-VIII ECO SERIES
-
Input Voltage:
-
48v
-
Output Voltage:
-
230VAC±5%
-
Output Frequency:
-
50Hz/60Hz
-
Size:
-
500*415*180
-
Certificate:
-
CE, CE
-
Warranty:
-
1 Year, 1 Year
-
Weight:
-
10KGS-11KGS
-
Rated power:
-
3.6kw-6.2kw
-
Display:
-
Digital LCD
-
Frequency:
-
50Hz/60Hz (Auto sensing)
-
Application:
-
Home Appliance
-
Protection:
-
Overload
-
Output waveform:
-
Pure Sine Wave Output
-
Efficiency:
-
98%
Quick Details
-
Output Power:
-
6KW
-
Output Type:
-
DUAL
-
Type:
-
DC/AC Inverters
-
Inverter Efficiency:
-
98%
-
Place of Origin:
-
shenzhen china
-
Brand Name:
-
SUMRY
-
Model Number:
-
MPS-VIII ECO SERIES
-
Input Voltage:
-
48v
-
Output Voltage:
-
230VAC±5%
-
Output Frequency:
-
50Hz/60Hz
-
Size:
-
500*415*180
-
Certificate:
-
CE, CE
-
Warranty:
-
1 Year, 1 Year
-
Weight:
-
10KGS-11KGS
-
Rated power:
-
3.6kw-6.2kw
-
Display:
-
Digital LCD
-
Frequency:
-
50Hz/60Hz (Auto sensing)
-
Application:
-
Home Appliance
-
Protection:
-
Overload
-
Output waveform:
-
Pure Sine Wave Output
-
Efficiency:
-
98%

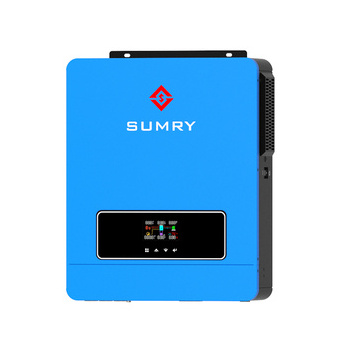

Pure sine wave solar inverter(on/off Grid)
WIFI&GPRS available for IOS and Android
Inverter running without battery
One-key restoration to factory settings
Built-in lithium battery automatic activation
Built-in 120A(for 3.6KW/4.2KW/6.2KW)
MPPT:max 6200W(for 3.6KW),max 6200W(for 4.2KW),
max 6500W(for 6.2KW)solar charge
High PV input voltage range(90~450VDC)
Built-in anti-dusk kit for harsh enviroment
Smart battery charge design to optimize battery life
Dual output
|
MODEL
|
MPS-VIII ECO 3.6KW
|
MPS-VIII ECO 4.2KW
|
MPS-VIII ECO 6.2KW
|
|||
|
Phase
|
1-phase
|
|
|
|||
|
Maximum PV Input Power
|
6200W
|
6200W
|
6500W
|
|||
|
Rated Output Power
|
3600W/3600VA
|
4200W
|
6200W/6200VA
|
|||
|
Maximum Solar Charging Current
|
120A
|
120A
|
120A
|
|||
|
GRID-TIE OPERATION
|
|
|
|
|||
|
PV Input(DC)
|
|
|
|
|||
|
Nominal DC Voltage/Maximum DC Voltage
|
360VDC/500VDC
|
|
|
|||
|
Start-up Voltage/Initial Feeding Voltage
|
60VDC/90VDC
|
|
|
|||
|
Maximum DC Voltage
|
60VDC~450VDC
|
|
|
|||
|
Number Of MPPT Trachers/Maximum Input Current
|
1/23A
|
1/23A
|
1/23A
|
|||
|
GRID OUTPUT(AC)
|
|
|
|
|||
|
Nominal Output Voltage
|
200/230/240VAC
|
|
|
|||
|
Output Voltage Range
|
195.5~253VAC
|
|
|
|||
|
Nominal Output Current
|
15.7A
|
18.2A
|
27.0A
|
|||
|
Power Factor
|
>0.99
|
|
|
|||
|
Feed-in Grid Frequency Range
|
49~51±1Hz
|
|
|
|||
|
EFFICIENCY
|
|
|
|
|||
|
Maximum Conversion Efficiency(Solar/AC)
|
98%
|
|
|
|||
|
TWO LOAD OUTPUT POWER(V2.0)
|
|
|
|
|||
|
Full Load
|
3600W
|
4200W
|
5000W
|
|||
|
Maximum Main Load
|
3600W
|
4200W
|
5000W~10000w
|
|||
|
Maximum Second Load(Battery mode)
|
1200W
|
1400W
|
1666W ~3333W
|
|||
|
Main Load Cut Off Voltage
|
22VDC
|
22VDC
|
44VDC
|
|||
|
Main Load Return Voltage
|
26VDC
|
26VDC
|
52VDC
|
|||
|
OFF-GRID OPERATION
|
|
|
|
|||
|
AC INPUT
|
|
|
|
|||
|
AC Start-up Voltage/Auto Restart Voltage
|
120-140VAC / 180VAC
|
|
|
|||
|
Acceptable Input Voltage Range
|
90-280VAC or 170-280VAC
|
|
|
|||
|
Maximum AC Input Current
|
40A
|
40A
|
50A
|
|||
|
Nominal Operating Frequency
|
50/60Hz
|
|
|
|||
|
Surge Power
|
7200W
|
8400W
|
1000W
|
|||
|
BATTERY MODE OUTPUT(AC)
|
|
|
|
|||
|
Nominal Output Voltage
|
220/230/240VAC
|
|
|
|||
|
Output Wavefrom
|
Pure sinewave
|
|
|
|||
|
Efficiency(DC to AC)
|
94%
|
|
|
|||
|
BATTERY & CHARGER
|
|
|
|
|||
|
Nominal DC Voltage
|
24VDC
|
24VDC
|
48VDC
|
|||
|
Maximum Solar Charging Current(Solar to AC)
|
120A
|
120A
|
120A
|
|||
|
Maximum AC Charging Current
|
100A
|
100A
|
100A
|
|||
|
PHYSICAL
|
|
|
|
|||
|
Dimension,D X W X H
|
420*310*110
|
|
|
|||
|
Cartoon Dimension,D X W X H
|
500*415*180
|
|
|
|||
|
Net Weight(kgs)
|
8.8
|
8.9
|
9.8
|
|||
|
Gross Weight(kgs)
|
10
|
10.1
|
11
|
|||
|
INTERFACE
|
|
|
|
|||
|
Communication Port
|
RS232/GPRS/WIFI
|
|
|
|||
|
ENVIRONMENT
|
|
|
|
|||
|
Operating Temperature
|
-10°C to 55°C
|
|
|
|||
