Quick Details
-
Weight (KG):
-
2000 KG
-
Core Components:
-
Laser source, Laser Cutting head
-

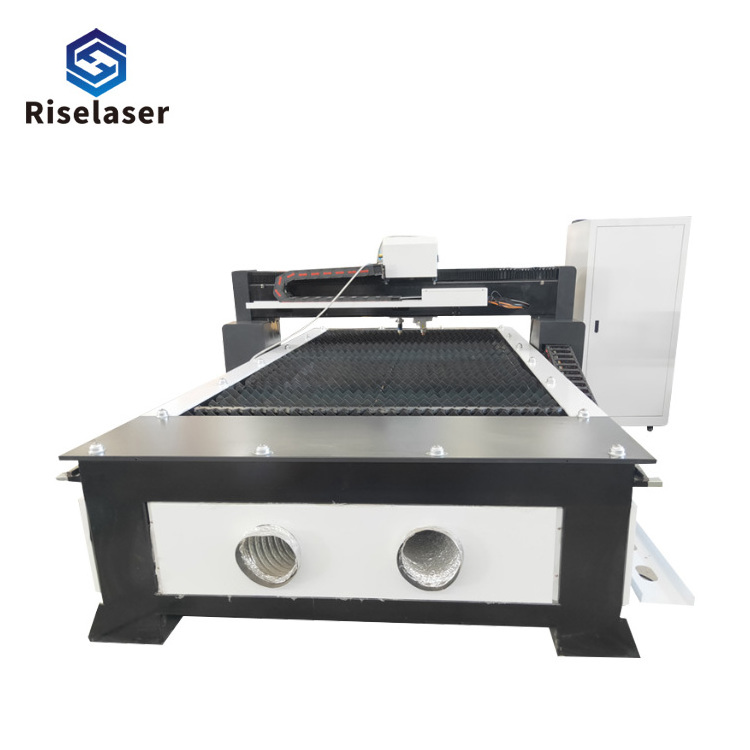

Product name:
-
Fiber Laser Metal Cutting Machine
-
Keyword:
-
Fiber Laser Cutting Machiens
-
Function:
-
Cutting Metal Materials
-
Laser power:
-
1000W /1500W/ 2000W / 3000W
-
After-sales Service Provided:
-
Online Support
-
Type:
-
Fiber Lasr Cutting
-
Cutting materials:
-
Stainless Steel Carbon Steel
-
Laser head:
-
Raytools Auto Focus Cutting Head
-
Laser source:
-
Raycus IPG NLIGHT Laser Source
Quick Details
-
Laser Type:
-
Fiber Laser
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Guangdong, China
-
Weight (KG):
-
2000 KG
-
Core Components:
-
Laser source, Laser Cutting head
-
Product name:
-
Fiber Laser Metal Cutting Machine
-
Keyword:
-
Fiber Laser Cutting Machiens
-
Function:
-
Cutting Metal Materials
-
Laser power:
-
1000W /1500W/ 2000W / 3000W
-
After-sales Service Provided:
-
Online Support
-
Type:
-
Fiber Lasr Cutting
-
Cutting materials:
-
Stainless Steel Carbon Steel
-
Laser head:
-
Raytools Auto Focus Cutting Head
-
Laser source:
-
Raycus IPG NLIGHT Laser Source
Parameters
|
Name
|
Paramerers
|
Unit
|
|
Laser Source
|
Max 1500
|
W
|
|
Plasma Power
|
120
|
A
|
|
Water cooler Power
|
1
|
KW
|
|
Flame Cutting
|
1
|
|
|
Software
|
EOE-HZH
|
|
|
Guide
|
EOE
|
|
|
Rack
|
EOE
|
|
|
Servo Motor
|
EOE
|
750W
|
|
Reducer
|
EOE
|
|
|
Minimum cutting width
|
0.08-0.1
|
mm
|
|
Laser Maximum cutting
thickness |
8 Carbon steel
4 stainless steel |
mm
|
|
Plasma Maximum cutting
thickness |
25 Carbon steel
|
mm
|
|
Maximum moving speed
|
60
|
m/min
|
|
Electricity requirements
|
380/50,60
|
v/hz
|
|
Graphic Format Supported
|
PRO/E.UG, Solidworks
|
|
|
Acceleration
|
0.5
|
G
|
|
Total power
|
11
|
KW
|
|
Presser of N2/O2/AIR
|
15-20/6-8/15-30
|
bar
|
|
Total Weight
|
2
|
T
|
|
Work per day
|
16
|
H
|
|
Lay out
|
3.9*2.3*1.6
|
M
|
|
Oil Box
|
Auto Oil Injection System
|
|
|
Delivery Time
|
20
|
Working days
|
Products Description
1.How long is the warranty period?
Whole machine warranty period is 1 year, laser source 2 years. If there is any problem during the period, we will solve it as soon as possible.
2.How long is the cable?
Different laser source have different option. For example, the normal cable length of raycus and max is about 9 meters.
3.How thick can 1500w-3000W be welded
1-8mm thick metal materials.
4.Is there a wire feeder?
We have a wire feeder to choose from. If you are interested, you can contact us and provide your email address.We will send more detailed pictures to your email.
5.Can aluminum and galvanized steel be welded?
Yes, it can.
6.Packaging
All our machines are packed in wooden boxes.
7.Language interface
Supports language customization, etc. You can also translate and insert to software.
