Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LLH
-
Model Number:
-
PCM 101208
-
Bush types:
-
Bearing Bushing Sleeve
-
Samples:
-
Avaliable
-
Certification:
-
ISO9001:2008
-
Service:
-
OEM .ODM .Customized
Quick Details
-
Applicable Industries:
-
Other
-
Type:
-
sleeve
-
Material:
-
SF-1
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LLH
-
Model Number:
-
PCM 101208
-
Bush types:
-
Bearing Bushing Sleeve
-
Samples:
-
Avaliable
-
Certification:
-
ISO9001:2008
-
Service:
-
OEM .ODM .Customized

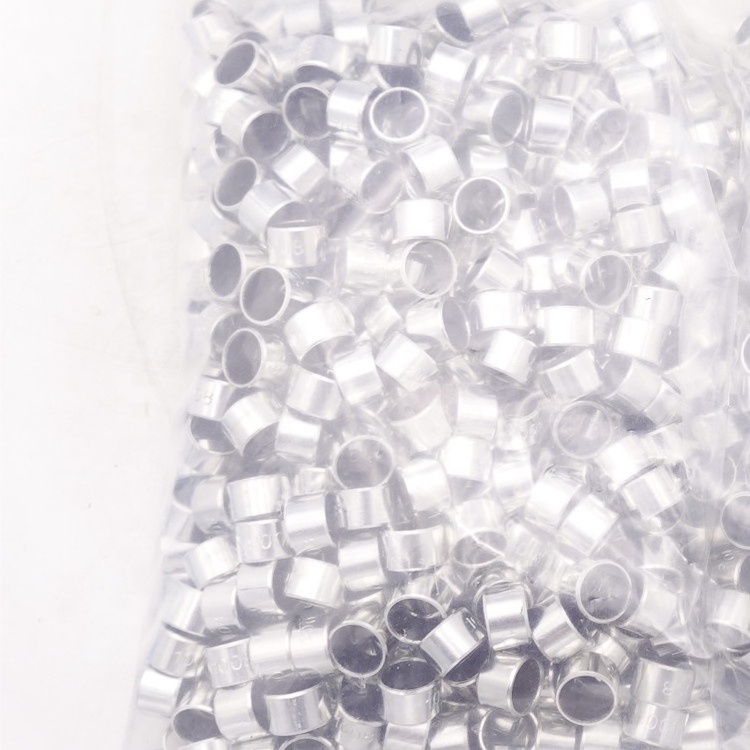

Oilless bushings, also known as sleeve bearings, are a type of self-lubricating sliding bearing. Oilless bushings are used to support sliding motions by reducing friction and increasing stability. Because of their self-lubricating properties and versatility in terms of usage, oilless bushings are a very popular component in industrial applications. Oilless bushings are cylindrical and can be made in any girth and length.
The modern design that is used in today’s oilless bushings has made them extremely popular. The fact that oilless bushings require no maintenance makes them very convenient, and their self-lubricating properties make them long-lasting and highly efficient.
PTFE composite straight (cylindrical) bushings are suitable for oscillating, rotating and linear movements, and can accommodate radial loads. Despite their thin-walled design, they can accommodate heavy loads. They also provide good heat dissipation, therefore enabling relatively high sliding velocities.
- Maintenance-free operation
- Cost-effective with long service life
- High operating temperatures
- High load carrying capacity
- High sliding velocity and small operating clearance
| Properties Of DU SF-1,DU SF-2 Bearing Materials |
| Item Material |
Compressive strength(Mpa) |
Temperature range(℃) | Coefficient of friction | width of wear(mm) |
PV factor limit (MPa•m/s) |
Wear depth Limit(mm) | Thermal Comductivity Kcal/M.br.C | Coefficient of Linear expansion(per C) |
| SF-1 | 280 | -195~+270 | <0.20 | <5.5 | 3.6 | 0.05 | 2.41 | 27x105 |
| SF-2 | 140 | -20~+100 |
<0.20
(grease) |
<4.5 (grease) |
10
(grease) |
0.05 | 2.03 | 5.1x10-5 |
| Materials |
| SF-1 | SF-1 is a kind of oilless Slide Bushing made of the polytetrafluroethylene(PTEE) composite material,Which is a copper-plated steel plate on to which a porous layer of tin bronze powder is sintered and also a mixture of PTFE and lead are filled into and covered the porous layer by a roling process. |
| SF-2 | SF-2 is a boundary lubricating bushes made of the POM composite material, which also has a copper-plated steel plate on to which a tin bronze powder is sintered, modified polyformadehyde resin(POM) is firmly anchored in the sintered bronze layer. The surface of covering layer has many pockets to retain lubricating grease. |
Customized bearings
We can design the bearing according to your required types,sizes and application.
If you have drawing and datasheets, it is better. We will produce the bearing according to your drawing and datasheet totally.
Shipment
Small order: by DHL/TNT/FedEx/Aramex ... express;
Large order: by air plane/by sea transportation
Delivery
After receiving payment, we can arrange shipment immediately.
Receiving
Customers suggested unpack, inspect and sign for the goods when you receive bearings. If you find any problem, please contact us.
Issues occurred during use
Bearing is not only related to its own quality, but also related to the installation method, load, speed, temperature and daily working hours.
If there is any problem in the use of bearing, please provide us with the above information in time so that our technicians can make an accurate and effective analysis.
Jinan Maolei Bearing Co., Ltd is a manufacturer and trader specialized in the research, development and production of bearings. is located in the "Spring City" Jinan, with convenient transportation.
The core products of Jinan Maolei bearing Co,.Ltd have a variety of bearings ranging from deep groove ball bearings, self-aligning ball bearings, self-aligning roller bearings, wheel hub bearings, linear bearings, pillow block bearing, ceramic bearings, plastic bearings, cylindrical roller bearings, angular contact ball bearings, tapered roller bearings, thrust ball bearings, thrust roller bearings and needle roller bearings to spherical plain bearings and other products. All of our products comply with international quality standards ISO 9001 and are greatly appreciated in a variety of different markets throughout the world.
We insist on the philosophies of "integrity" and "pragmatic & win-win business". We also adhere to the "people-oriented" and "advancing" enterprise spirit . "Quality first and customers utmost" is honored as our enterprise concept.
Our Services
1.High speed, High Precision, Low Noise, Long Service Life
2.Wide Array of Applications
3.Large Inventories
4.Small order accept
5.Competitive Prices and High Quality
6.Various Brands
7.Require little maintenance
8. OEM is supported
9. Our company insists on the "quality first, credit first" business ideas and our product specification is well-founded. We have a good reputation in the international market by our perfect service and sufficient supply.
Q: Are you trading company or manufacturer ?
We are the manufacture of bearings for more than 20 years, "Quality is our culture".
Q: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: What causes bearing noise?
A: Bearing noise is a function of both the bearing and the way it is used. Some external factors that affect bearing noise include lubricant type, excessive bearing load, and improper installation. Once the abnormal noise occurred, you can contact our engineers, we will help you find the reasons and provide the appropriate solutions.
Q: What is your terms of payment ?
A.100%T/T
B.30%T/T in advance,70% aganist copy of B/L(For large order)
C.Western Union
D.Paypal
