1. According to the characteristics of rural roads choose well-known brands of domestic Dongfeng country IV chassis, the vehicle width 2.3 meters, large-scale lightweight design, vehicle size optimization to smaller meet problem of the narrow path of rural all limit;
2. The use of flexible comprehensive four sections M type design of the boom, achieve rapid fold and unfold of arm frame.
3. X X type outrigger is designed with automatic hydraulic system, small occupied area, convenient construction site layout;
4. The pump ability is 60 cubic meters / hour, can be adjusted freely, free to control the efficiency of construction;
5. New nation- four engine, up to more than 95% of the ceiling materials, high hydraulic control system and the energy consumption is decreased to the lowest to meet environmental protection.
6. Core components are used of domestic and international famous brands, high standard, good quality, low failure rate, the system is mature and stable, long life, high ratio of performance to price.
7. Circuit adopts integrated wiring harness, few fault points, high reliability, flexible man-machine exchange interface design, makes the operation more simple; remote fault diagnosis function, so that the maintenance repair, maintenance is more convenient.
8. Adopt domestic famous brand 500 compulsory mixer, mixing concrete, good quality.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
REALTOP
-
Motor Power:
-
132KW
-
Charging Capacity:
-
0.7m3
-
Reclaiming capacity:
-
750L
-
Speed of Mixing Drum:
-
20r/min
-
Water Supply Mode:
-
Water Pump
-
Working Cycle Period:
-
60s
-
Discharge Way:
-
Rotating Reversely
-
Outline Dimension:
-
9960*2340*3960mm
-
Max pumping capacity:
-
30m3/h
-
Hydraulic oil pump:
-
Kawasaki
-
Horizontal delivery distance:
-
300m
-
Vertical delivery distance:
-
70m
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Free spare parts, Online support
-
Weight:
-
19900KGS
Quick Details
-
Mixing Power:
-
18.5KW
-
Productivity:
-
30m3/h
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
REALTOP
-
Motor Power:
-
132KW
-
Charging Capacity:
-
0.7m3
-
Reclaiming capacity:
-
750L
-
Speed of Mixing Drum:
-
20r/min
-
Water Supply Mode:
-
Water Pump
-
Working Cycle Period:
-
60s
-
Discharge Way:
-
Rotating Reversely
-
Outline Dimension:
-
9960*2340*3960mm
-
Max pumping capacity:
-
30m3/h
-
Hydraulic oil pump:
-
Kawasaki
-
Horizontal delivery distance:
-
300m
-
Vertical delivery distance:
-
70m
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Free spare parts, Online support
-
Weight:
-
19900KGS
Product Overview

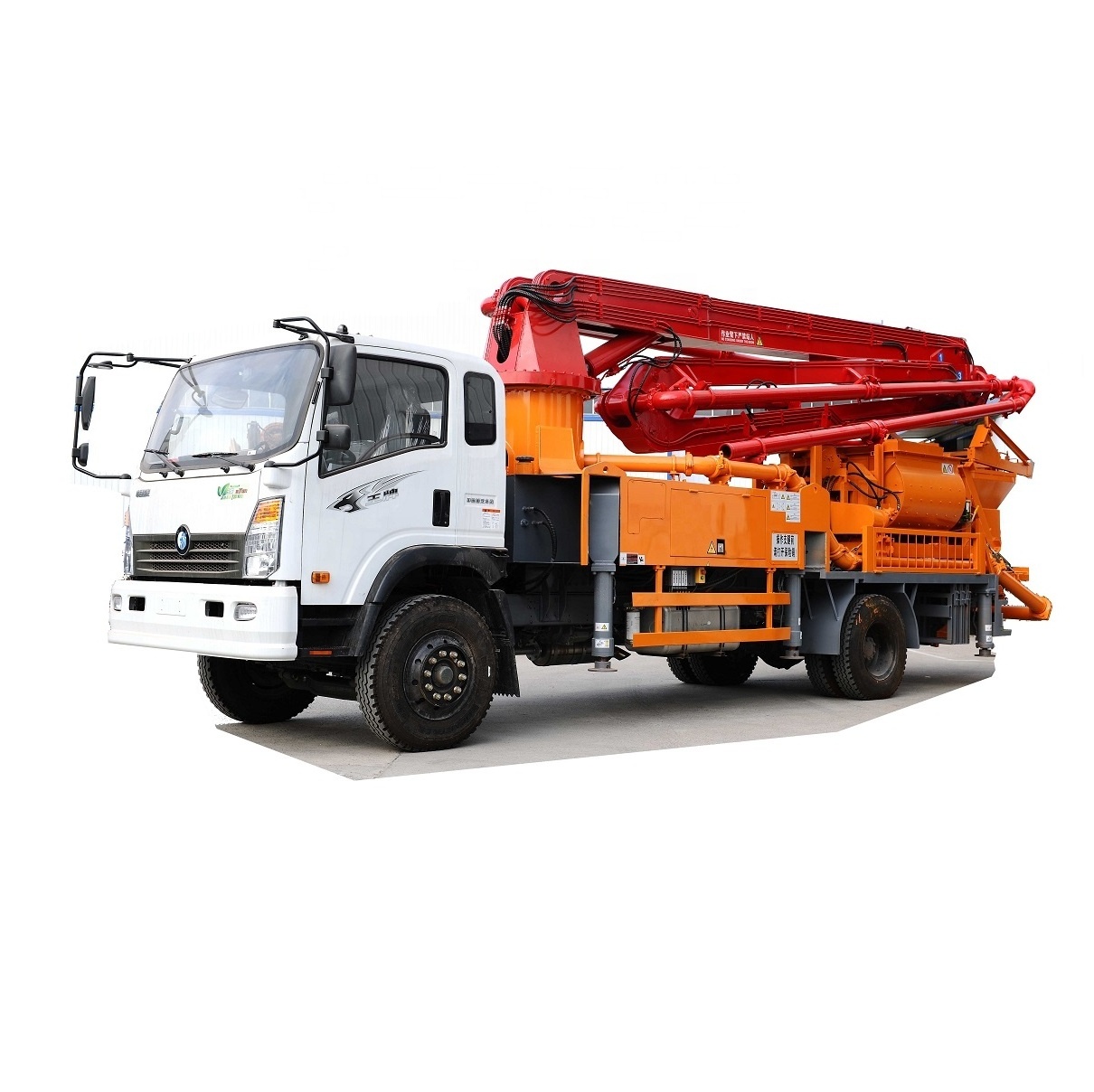

28M Truck Mounted Concrete Mixer Boom Pump
Brief Introduction:
Realtop series truck-mounted mixing boom pump, also known as boom pump, a small type pump, especially used in small towns and rural market development, combined mixing pumping in one, is the set of automotive, power system, forced mixing system, pumping system and fabrics arm frame in one of the micro mobile type concrete mixing station, greatly save labour cost and improve the efficiency of construction. is more mobile and flexible, convenient and efficiently.
The scope of application:
Applicable to the concrete pouring construction of the small towns and the rural market for construction of houses, water
conservancy project, road, bridge and tunnel, workshop floor, nursing of slope, water and electricity engineering and so on.
Realtop series truck-mounted mixing boom pump, also known as boom pump, a small type pump, especially used in small towns and rural market development, combined mixing pumping in one, is the set of automotive, power system, forced mixing system, pumping system and fabrics arm frame in one of the micro mobile type concrete mixing station, greatly save labour cost and improve the efficiency of construction. is more mobile and flexible, convenient and efficiently.
The scope of application:
Applicable to the concrete pouring construction of the small towns and the rural market for construction of houses, water
conservancy project, road, bridge and tunnel, workshop floor, nursing of slope, water and electricity engineering and so on.
FEATURES AT A GLANCE
Features:
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
|
Parameters\ models
|
|
|
BPM-28
|
||
|
Machine
|
Overall length(mm)
|
|
9960
|
||
|
|
Overall width(mm)
|
|
2340
|
||
|
|
Overall height(mm)
|
|
3960
|
||
|
|
Weight (ton)
|
|
19.9
|
||
|
Boom system
|
Vertical height(mm)
|
|
29
|
||
|
|
Horizontal length(mm)
|
|
25.5
|
||
|
|
Vertical depth(mm)
|
|
15.5
|
||
|
|
Main height of expansion(mm)
|
|
7.8
|
||
|
|
1st arm
|
Length(mm)
|
6860
|
||
|
|
|
Angel range(°)
|
90
|
||
|
|
2nd arm
|
Length(mm)
|
5860
|
||
|
|
|
Angel range(°)
|
180
|
||
|
|
3rd arm
|
Length(mm)
|
5900
|
||
|
|
|
Angel range(°)
|
180
|
||
|
|
4th arm
|
Length(mm)
|
6750
|
||
|
|
|
Angel range(°)
|
245
|
||
|
|
Slewing range(°)
|
|
±360
|
||
|
|
Front supporting legs horizontal span(mm)
|
|
5710
|
||
|
|
Back supporting legs horizontal span(mm)
|
|
5710
|
||
|
Pumping system
|
Max. Thor. Pressure of concrete delivery(Mpa)
|
|
8
|
||
|
|
Max. concrete output(Mpa)
|
|
40
|
||
|
|
Theory pumping times
|
|
25
|
||
|
|
Cylinder diameter (mm)
|
|
Ø200
|
||
|
|
Cylinder stroke (mm)
|
|
1250
|
||
|
|
Hydraulic system
|
|
Open
|
||
|
|
System pressure(Mpa)
|
|
28
|
||
|
|
Oil box cubage(L)
|
|
380
|
||
|
|
Pipe diameter
|
|
Ø125
|
||
|
|
The end hose length (m)
|
|
3
|
||
|
|
The end hose diameter (mm)
|
|
Ø125
|
||
|
Chassis
|
Chassis model
|
|
CDW5160HA1R
|
||
|
|
Engine model
|
|
YC6J180-42
|
||
|
|
Engine power(KW)
|
|
132
|
||
|
|
Engine displacement(L)
|
|
6.5
|
||
|
|
Emission standard
|
|
State IV
|
||
|
|
Fuel capacity(L)
|
|
190
|
||
|
|
Max. Speed(KM/H)
|
|
80
|
||
|
|
Braking distance
|
|
≤12m/30
|
||
|
Mixer
|
Mixer type
|
|
JS500
|
||
|
|
Distance capacity(L)
|
|
500
|
||
|
|
Feeding capacity(L)
|
|
800
|
||
|
|
Theoretical productivity(m³/h)
|
|
30
|
||
PRODUCT CONFIGURATION
Boom1
Boom 2
Boom 3
SALES AND SERVICE NETWORK
Successful Project
SIMILAR PRODUCTS
Truck mounted mixer pump
Trailer mounted concrete pump
Trailer mounted mixer pump
FAQ
1. For what kind of construction, house buidling or road construction or else?
2. The required delivery distance of horizontal and vertical.
3. Mail pump brand, diesel engine brand required.
