The mooring buoy is the important anchoring facility of the port.
- Product Details
- {{item.text}}
Quick Details
-
Brand:
-
YinHuan
-
Application:
-
Mooring
-
Certificate:
-
ISO9001,BV,CCS,DNV,GL,LR
-
Color:
-
White,red and other colors
-
Size:
-
Custom size
-
MOQ:
-
1 Set
-
Delivery Time:
-
7-30-days
-
Warranty:
-
Within 2 years
-
Quality:
-
IALA/ISO
Quick Details
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
YinHuan
-
Material:
-
Steel
-
Brand:
-
YinHuan
-
Application:
-
Mooring
-
Certificate:
-
ISO9001,BV,CCS,DNV,GL,LR
-
Color:
-
White,red and other colors
-
Size:
-
Custom size
-
MOQ:
-
1 Set
-
Delivery Time:
-
7-30-days
-
Warranty:
-
Within 2 years
-
Quality:
-
IALA/ISO
Product Description
XF TYPE MOORING BUOY
|
Material
|
Steel
|
Color
|
White,red and other colors
|
|
Brand
|
YinHuan
|
Size
|
Custom size
|
|
Application
|
Mooring
|
MOQ
|
1 Set
|
|
Certificate
|
ISO9001,BV,CCS,DNV,GL,LR
|
Warranty
|
Within 2 years
|
Basic Parameters Of Common Steel Buoy
|
Diameter(m)
|
Buoy draft(m)
|
Freeboard height(m)
|
Lamp focal plane height(m)
|
Floating material thickness(mm)
|
Applicable chain diameter(mm)
|
Recommed sinker weight(t)
|
|
φ0.6
|
>0.5
|
>0.3
|
>1.5
|
2.5
|
11
|
0.2
|
|
φ1.2
|
>1.0
|
>0.5
|
>2.0
|
4
|
17.5
|
0.5-1
|
|
φ1.5
|
>1.2
|
>0.6
|
>2.5
|
5
|
22
|
1-2
|
|
φ1.8
|
>2.5(Deep water) >1.0(Shallow water)
|
>0.7
|
>3.0
|
8
|
28
|
2-3
|
|
φ2.4
|
>3.0(Deep water) >1.5(Shallow water)
|
>0.9
|
>4.5
|
8
|
34
|
3-6
|
|
φ3.0
|
>3.6
|
>1.0
|
>6.0
|
10
|
38
|
5-8
|
|
φ3.6
|
>4
|
>1.2
|
>7.5
|
12
|
44
|
7-10
|
|
Diameter(m)
|
Swing period(s)
|
Maximum swing angle(°)
|
Day mark visible range(nm)
|
Light range(nm)
|
Radar detection range(nm)
|
Anchor depth(m)
|
|
φ0.6
|
3-5
|
≤ 15
|
>0.5
|
>0.5
|
>0.5
|
2-10
|
|
φ1.2
|
3-5
|
≤ 15
|
>1
|
>1
|
>1
|
3-15
|
|
φ1.5
|
3-5
|
≤ 15
|
>1.5
|
>1.5
|
>1.5
|
4-20
|
|
φ1.8
|
3-5
|
≤ 15
|
>2
|
>2
|
>2
|
6-30
|
|
φ2.4
|
3-5
|
≤ 15
|
>3
|
>3
|
>3
|
10-50
|
|
φ3.0
|
3-5
|
≤ 15
|
>4
|
>4
|
>4
|
15-60
|
|
φ3.6
|
3-5
|
≤ 15
|
>5
|
>5
|
>5
|
20-70
|
Detailed Images

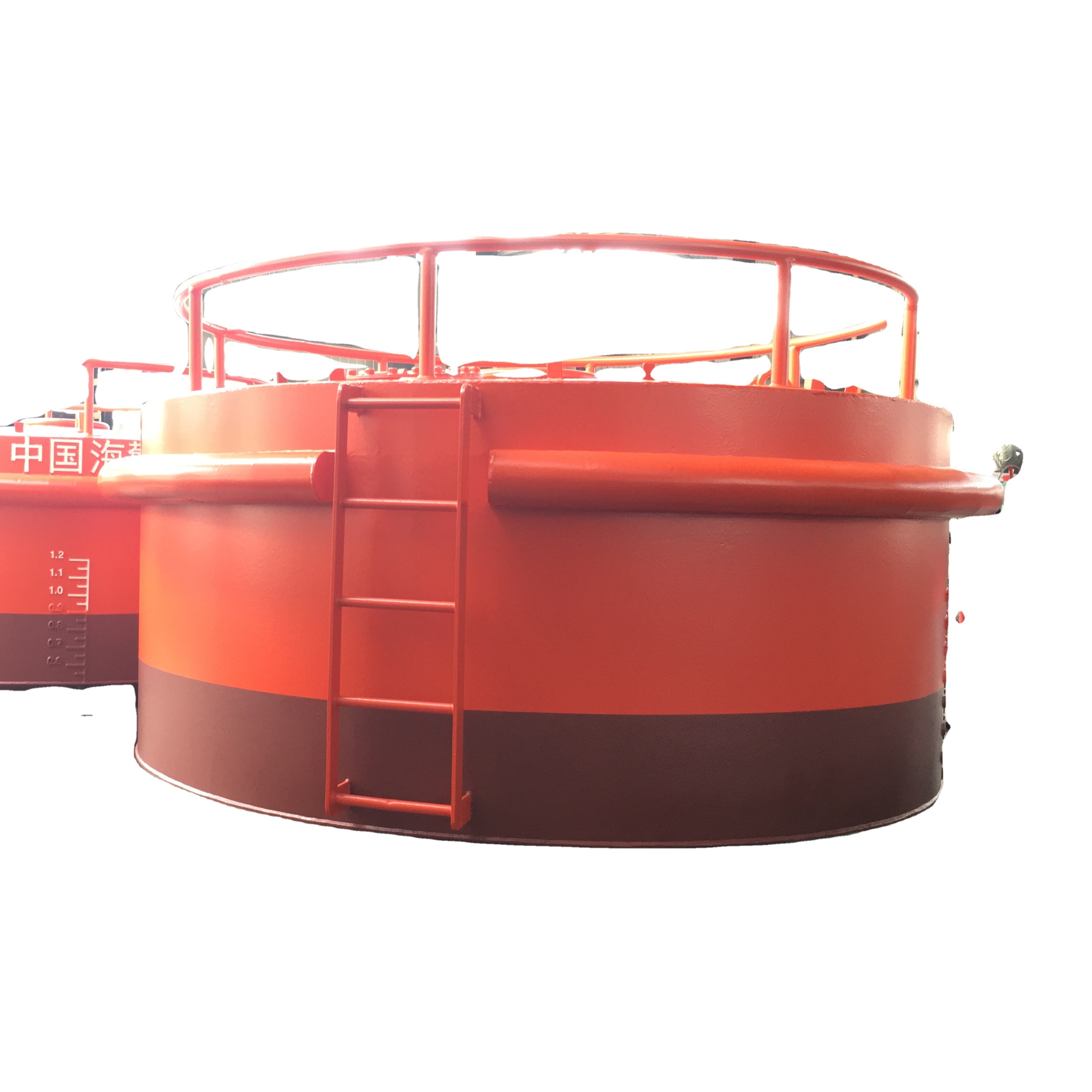

Various XF type mooring buoys made by our factory are available for anchorage of ships of different tonnage. It is quite convenient and flexible to operate as using mooring buoy in anchorage.
Related Products
Certificate
Packing&Shipping
Company Introduction
Anhui Yatai Anchor Chain Manufacturing Co., Ltd. is a modern enterprise established on the basis of Anhui Chaohu Yinhuan Anchor Chain Co., Ltd., a national high-tech enterprise,and participated in the drafting of the national GB/T 549-2017 "welding chain" standard . It includes an anchor chain factory,casting and forging factory and outfitting factory. It is specialized in Φ12.5mm-107mm M2 M3 marine anchor chain, buoy anchor chain, anchor chain attachment, anchor, ship outfitting, navigation mark, mooring buoy, ship type buoy, Φ10m marine monitoring buoy and navigation lights production, installation and service. The products are sold to shipyards, terminals, navigation marks,waterway bureaus and marine bureaus all over the country, and go to the international market.
The company's products are produced in strict accordance with national standards and classification society welding specifications, and have passed ISO9001:2015 quality management system certification and China Classification Society (CCS), local ship inspection (ZC), fish inspection ( ZY), Germany (GL), Norway (DNV), Japan (NK), Korea (KR), Germany (GL), France (BV), Italy(RINA) and other foreign classification society factory approval.
The company has strong technical force, complete testing means and perfect after-sales service. Our company has 3#, 5#, 7# anchor chain units, 160, 250 flash welders, anchor chain heat treatment furnaces, CO2 automatic welding machines, submerged arc welding machines. , 1000KN and 5000KN tensile machines, physical and chemical analysis rooms and other production and testing equipment. It has sales offices of the head office sales department, Anhui, Jiangsu, Zhejiang, Shanghai, Wuhan, Chongqing, Guangzhou, and North China.
The company's products are produced in strict accordance with national standards and classification society welding specifications, and have passed ISO9001:2015 quality management system certification and China Classification Society (CCS), local ship inspection (ZC), fish inspection ( ZY), Germany (GL), Norway (DNV), Japan (NK), Korea (KR), Germany (GL), France (BV), Italy(RINA) and other foreign classification society factory approval.
The company has strong technical force, complete testing means and perfect after-sales service. Our company has 3#, 5#, 7# anchor chain units, 160, 250 flash welders, anchor chain heat treatment furnaces, CO2 automatic welding machines, submerged arc welding machines. , 1000KN and 5000KN tensile machines, physical and chemical analysis rooms and other production and testing equipment. It has sales offices of the head office sales department, Anhui, Jiangsu, Zhejiang, Shanghai, Wuhan, Chongqing, Guangzhou, and North China.
Since the establishment of the company 30 years ago, we have been providing customers with satisfactory products and services based on the concept of “integrity management, sincere service”. Warmly welcome customers at home and abroad to negotiate business, exchange technology and expand trade!
Let us work together for a better future!
Let us work together for a better future!
Our Clients
FAQ
Q: Are you the factory or trading company?
A: We are direct factory, welcome to visit us at Hefei, Anhui Province
Q: What kind of certificate available?
A: ZC, CCS, BV, RINA, KR, NK, GL, ABS, DNV, RS, LR
Q: What is the delivery period?
A: Normally within 30 days
Q: What is the warranty?
A: Within 2 years after delivery
Q: Any foreign experience?
A: Yes, products been exported to various foreign countries and we also have foreign engineering project.
A: We are direct factory, welcome to visit us at Hefei, Anhui Province
Q: What kind of certificate available?
A: ZC, CCS, BV, RINA, KR, NK, GL, ABS, DNV, RS, LR
Q: What is the delivery period?
A: Normally within 30 days
Q: What is the warranty?
A: Within 2 years after delivery
Q: Any foreign experience?
A: Yes, products been exported to various foreign countries and we also have foreign engineering project.
