Quick Details
-
Weight (KG):
-
230
-
Voltage:
-
220v
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Hongle
-
Dimension(L*W*H):
-
3770 * 670 *1450mm
-
Product name:
-

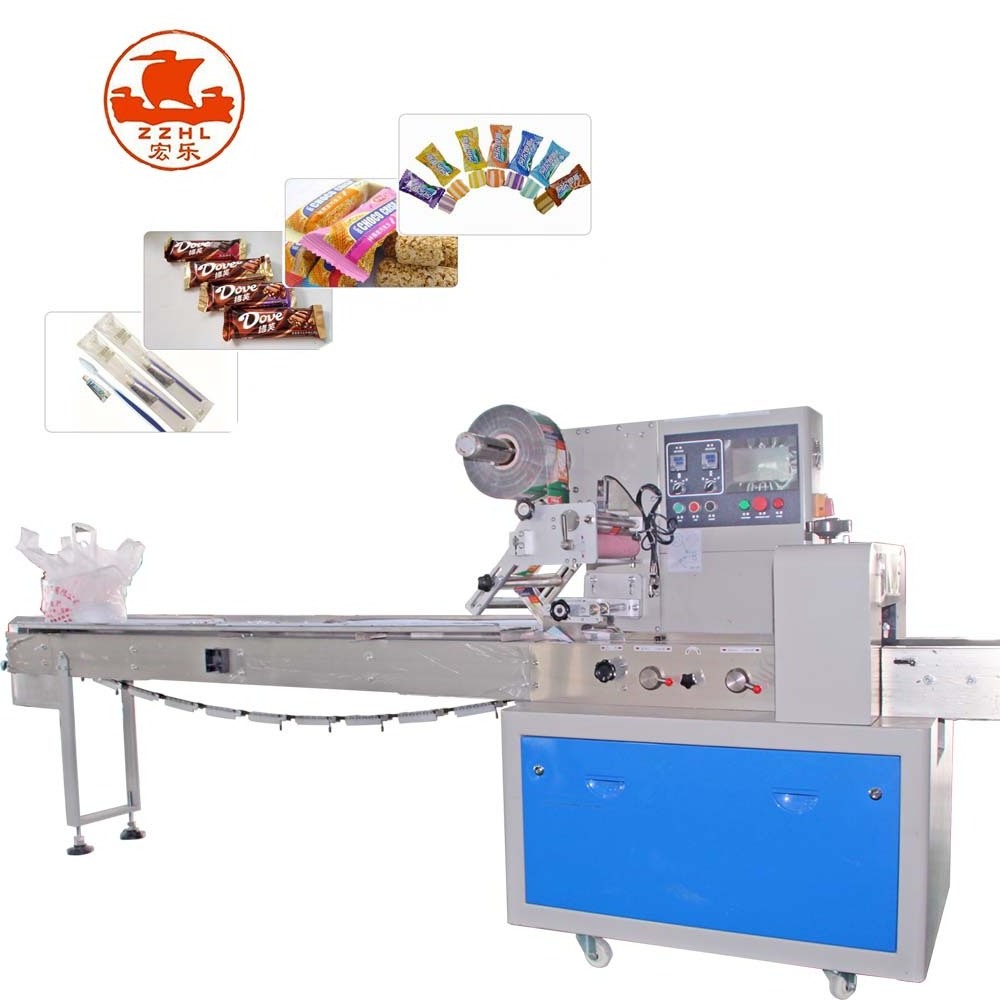

Multifuncational Cookies Vacuum Pillow Packing Machine
-
Bag type:
-
Pillow bag,Gusseted bags
-
Control system:
-
PLC or Servo motor
-
Sealing type:
-
Back seal(central sealing)
-
Optional function:
-
Air filling,Date Print,Hole Pouching,Angle Fold Bag,etc
-
Machine material:
-
Stainless Steel or Carbon Steel
-
Film material:
-
Hot seal film
-
Combined:
-
Manual or Automatic Feeder
-
Packing speed:
-
40-150 bag/min
-
ALL of parts contacted:
-
Stainless Steel
-
Marketing Type:
-
Ordinary Product
Quick Details
-
Function:
-
Wrapping, Labeling, Sealing
-
Packaging Type:
-
Bags, Film, Pouch
-
Packaging Material:
-
Plastic
-
Weight (KG):
-
230
-
Voltage:
-
220v
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Hongle
-
Dimension(L*W*H):
-
3770 * 670 *1450mm
-
Product name:
-
Multifuncational Cookies Vacuum Pillow Packing Machine
-
Bag type:
-
Pillow bag,Gusseted bags
-
Control system:
-
PLC or Servo motor
-
Sealing type:
-
Back seal(central sealing)
-
Optional function:
-
Air filling,Date Print,Hole Pouching,Angle Fold Bag,etc
-
Machine material:
-
Stainless Steel or Carbon Steel
-
Film material:
-
Hot seal film
-
Combined:
-
Manual or Automatic Feeder
-
Packing speed:
-
40-150 bag/min
-
ALL of parts contacted:
-
Stainless Steel
-
Marketing Type:
-
Ordinary Product
Product Description
Feature of pillow packing machine ：
1) Be able to conveying, bagmaking, sealing, cutting, lot number, cutting automatically.
2) To has color control system which can get the complete trade mark design.
4) The machine fix stepper motor controller, its advantage is precise, needless to adjust other parts.
5) Intelligent temperature control by temperature controller to make heat balance better. use bilingual display screen control system and stainless steel cabinet.
6) Fine packaging performance, low noise, clear sealing texture and strong sealing performance.
7) ink stamp coding machine
9) Need to change new temperature controller, blade& pressing mode only after 3years continuous operation, 2 shifts a day and other parts is still good and safe
Technical Parameters of pillow packing machine:
Please tell me your bag length and width ,then we can recommend suitable machine for you .we can customize the machine according to your product requirements.
|
Item
|
HLDXDX-250
|
HLDXDX-320
|
HLDXDX-400
|
|
Packing capacity
|
40-200bags/min
|
40-230 bags/min
|
30-180 bags / min
|
|
Width of film
|
Max 250mm
|
Max.320mm
|
Max.400mm
|
|
Package dimension
|
L：65-190mm/120-280mm
W：30-110mm
|
L:65-190mm /120-280mm
W:50-160mm
|
L:130-320mm/180-400mm
W:50-185mm
|
|
Power supply
|
220V,50/60HZ
|
220v 50/60Hz
|
220V 50/60HZ
|
|
Power
|
2.4KW
|
2.6kw
|
2.6kw
|
|
Machine dimension
|
3770*650*1450mm
|
3770*720*1450mm
|
4020 * 800 * 1450 mm
|
|
Weight
|
550KG
|
600kg
|
700kg
|
|
Remark
|
Equipped with air filling device
|
|
|
Related Products
*If you can not open the links above on Alibaba APP on mobile phone, please use IE browser to visit our website: https://chinafoodmachine.en.alibaba.com
Packaging & Shipping
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to production season and order quantity.
