Quick Details
-
Application:
-
Industrial insulation
-
Design Style:
-
Industrial insulation
-
Type:
-
silicate calcium board
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
CCEWOOL
-
Model Number:
-
1000 standard calcium silicate board
-
Density:
-
230/280/300 kg/m3
-
Liner shrinkage:
-
≤2%
-
Conductivity:
-
0.06-0.07w/m.k
-
Modulus of Ruputure:
-
0.4Mpa
-
Length:
-
500-1000mm
-
Width:
-
150-500mm
-
Thickness:
-
25-120mm
Quick Details
-
Warranty:
-
NONE
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
total solution for projects
-
Application:
-
Industrial insulation
-
Design Style:
-
Industrial insulation
-
Type:
-
silicate calcium board
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
CCEWOOL
-
Model Number:
-
1000 standard calcium silicate board
-
Density:
-
230/280/300 kg/m3
-
Liner shrinkage:
-
≤2%
-
Conductivity:
-
0.06-0.07w/m.k
-
Modulus of Ruputure:
-
0.4Mpa
-
Length:
-
500-1000mm
-
Width:
-
150-500mm
-
Thickness:
-
25-120mm
Have been the TOP trade assurance limit USD230,000.00 in the industry in China because of our insists on excellent quality for 9 years on Alibaba.

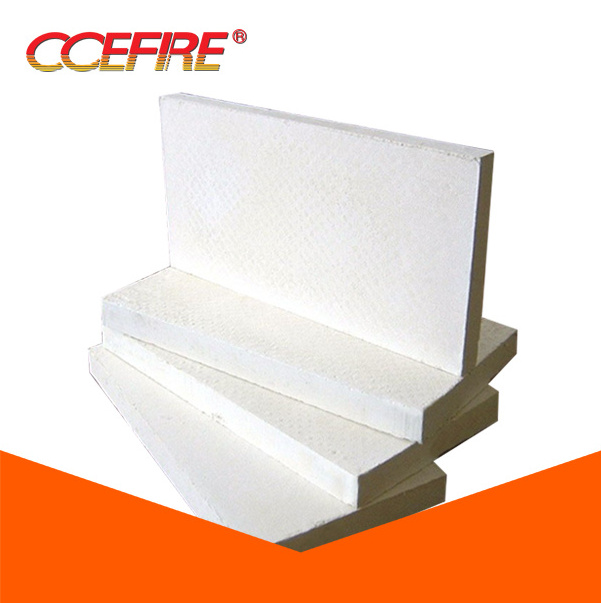

Asbestos-free Boards Calcium Silicate also known as the porous calcium silicate board, is a fiber-reinforced calcium silicate board, with silicon oxide, calcium oxide, and the reinforcing fibers as the main raw materials, made through mixing, heating, gelling, molding, autoclaving and drying processes. Calcium silicate board is a new type of rigid insulation material.
Light Weight Fireproof boards calcium silicate.
It is mainly used as insulation for thermal equipment and piping in the power, chemical, metallurgy, petrochemical, textile and light industries, as well as insulation for building, ship and train.
|
Item |
Asbestos-free Boards Calcium Silicate |
|
Size and Specifications |
500x500x25~120 600x300x25~120 |
|
Type |
Common Calcium Silicate (650°C) Standard Calcium Silicate (1000°C) |
|
Characteristics |
On top of light weight, low thermal conductivity, high rupture and, compressive strengths, calcium silicate won’t distort even in contact with water, with other features like long service life, sawing-worthiness, easy processing, non-toxics, non-corrosiveness to piping and equipment, etc.. |
|
Typical Use |
Mainly used as insulation for thermal equipment and piping in the power, chemical, metallurgy, petrochemical, textile and light industries, as well as insulation for building, ship and train. |
|
Working Temp |
650 °C, 1000 °C |
|
Service |
The size, density, chemical composition can be customized. |
|
MOQ |
25 cubic meters |
|
FOB price |
150-300 USD/cubic meter |
|
Port |
Qingdao Port |
|
Payment terms |
L/C, T/T, D/A, D/P, Western Union, MoneyGram, Cash |
|
Delivery |
Within 15 days after received the delivery |
|
Packing |
By carton or pallet |
|
certificate |
ISO 9001:2000, CE, REACH |
Our calcium silicate board is produced by ISO 9000 quality management system, We also have CE certificate, MSDS is also availbale. When you come across any difficulties in your operaiton, we can try our best to give you any technical support.
| Classification temperature( o C) | 650 calcium silicate board | 1000 calcuim silicate board | ||||
| Density (kg/m3) | 170 | 220 | 300 | 170 | 220 | 300 |
| Moisture (%) | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 |
|
Cold Crushing Strength ( Mpa) |
0.5 | 0.6 | 0.7 | 0.6 | 0.7 | 0.8 |
| Modulus of Rupture ( Mpa) | 0.25 | 0.3 | 0.35 | 0.3 | 0.35 | 0.4 |
| Conductivity (W/(m.k)) | 0.055 | 0.062 | 0.07 | 0.058 | 0.062 | 0.07 |
| Work Temperature ( o C) | 650 | 650 | 650 | 1000 | 1000 | 1000 |
| Liner shrinkage ( %) | 2 | 2 | 2 | 2 | 2 | 2 |
| Size (mm) | 600x300x25~100mm; 500x500x25~100mm;1000x500x25-120mm | |||||
Specification of CCE FIRE Calcium Silicate Board
|
Length(±3mm) |
Width( ± 2mm) |
Thickness(+3-1.5mm) |
|
100
|
500 |
25-100 |
|
610 |
400/303/300/150 |
25-120 |
|
600 |
300 |
25-120 |
|
524 |
400 |
25-120 |
|
500 |
500 |
25-120 |
About CCEWOOL Calcium Silicate Board package :
1. Shipping mark and packing details will according to clients' requirements to design.
2. Before delivery, we will have a inspection department to check and inspect, taking photos and recording the packing details for customer .
3. Our standard exporting package is made of five layers of kraft paper,which is well suited to long-distance shipments.
Also can provide refractory brick, mullite insulating brick, etc..
