Quick Details
-
Brand Name:
-
Zhengzhou Gou's
-
Voltage:
-
single phase 220v 50-60hz
-
Dimension(L*W*H):
-
520*230*430mm
-
Weight (T):
-
0.02 T
-
Power (kW):
-
16
-
Application:
-
heating,brazing, quenching,melting
-
Working power:
-
single phase 220v 50-60hz
-
Working voltage:
-
180-250v
-
Maximum output power:
-
16kw
-
Max input current:
-
24A
-
Cooling water pressure:
-
0.05mpa
-
Oscillation frequency:
-
10-80khz
-
Water flow:
-
4L/min
-
Generator size:
-
520*230*430mm
-
Generator weight:
-
25kg
Quick Details
-
Place of Origin:
-
Henan, China
-
Marketing Type:
-
Hot Product 2020
-
Core Components:
-
IGBT
-
Brand Name:
-
Zhengzhou Gou's
-
Voltage:
-
single phase 220v 50-60hz
-
Dimension(L*W*H):
-
520*230*430mm
-
Weight (T):
-
0.02 T
-
Power (kW):
-
16
-
Application:
-
heating,brazing, quenching,melting
-
Working power:
-
single phase 220v 50-60hz
-
Working voltage:
-
180-250v
-
Maximum output power:
-
16kw
-
Max input current:
-
24A
-
Cooling water pressure:
-
0.05mpa
-
Oscillation frequency:
-
10-80khz
-
Water flow:
-
4L/min
-
Generator size:
-
520*230*430mm
-
Generator weight:
-
25kg

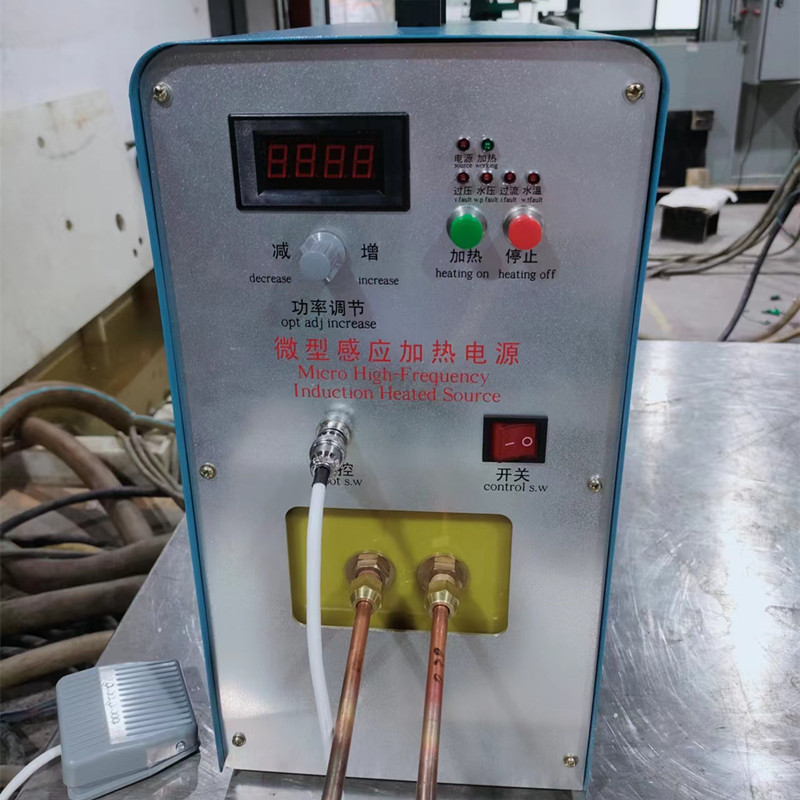

16kw Gold Silver Platinum Precious Metal Melting Induction Melting Furnace For Sale
1.Very easy to install and operate.
2. Long-lasting work.
3. Energy saving.
4. Safe and reliable.
5. Environmental friendly.
The induction heating machine can be used to melt many precious metals such as gold, silver, aluminum, zinc, platinum , steel and etc.
|
Model Technical Parameter |
WH-VI-16 |
WH-VI-30 |
WH-VI-40 |
WH-VI-50 |
WH-VI-60 |
|
Single phase 220v/50-60hz |
Three phase 380v/50-60hz |
Three phase 380v/50-60hz |
Three phase 380v/50-60hz |
||
|
180-250v |
342-430v |
342-430v |
342-430v |
342-430v |
|
|
Maximum Output power(kw) |
16 |
30 |
40 |
50 |
60 |
|
Max Input Current(A) |
24 |
60 |
75 |
||
|
Oscillation Frequency(Khz) |
10-80 |
10-40 |
10-40 |
10-40 |
|
|
Cooling water Pressure(Mpa) |
0.05Mpa |
0.1Mpa |
0.2Mpa |
0.2Mpa |
|
|
Cooling Water Flow(L/min) |
4L/min |
6L/min |
7L/min |
8L/min |
8L/min |
|
Generator Size(mm) |
520x230x430 |
690*290*550 |
700x500x860 |
700x500x860 |
700x500x860 |
|
Transformer Size(mm) |
/ |
/ |
450x350x100 |
450x350x100 |
|
|
Generator Weight(kg) |
25 |
60 |
65 |
||
|
Transformer Weight(kg) |
/ |
/ |
40 |
43 |
60 |
1. On the outside, packing fumigation wooden cases for induction heating machine.
2. Inside part, packing plastic film, in case of the friction of the induction heating machine;
3. Induction coil is packaged inside.
4. The induction heating machine can be transported by ship air or train.
