Quick Details
-
Model Number:
-
KL310
-
Certificate:
-
CE ROHS
-
Product Name:
-
Medium to large format 3-way line array loudspeaker
-
Material:
-
high quality plywood
-
finish:
-
waterproof Black color
-
Components:
-
LF: 2 * 10" , 2* 8"; MF: 1* 8"; HF: 2*1.4"
-
type:
-
dual 10 inch three way line array system
-
Power handling capacity front LF:
-
600w/1800 W/2400w
-
Nominal dispersion angle:
-
(horizontal)80 °
-
Power handling capacity side LF/MF/HF:
-
850W/1700W/3400 W
-
Connectors:
-
Neutrik 2*NL4
Quick Details
-
Warranty:
-
3months-1year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
oem
-
Model Number:
-
KL310
-
Certificate:
-
CE ROHS
-
Product Name:
-
Medium to large format 3-way line array loudspeaker
-
Material:
-
high quality plywood
-
finish:
-
waterproof Black color
-
Components:
-
LF: 2 * 10" , 2* 8"; MF: 1* 8"; HF: 2*1.4"
-
type:
-
dual 10 inch three way line array system
-
Power handling capacity front LF:
-
600w/1800 W/2400w
-
Nominal dispersion angle:
-
(horizontal)80 °
-
Power handling capacity side LF/MF/HF:
-
850W/1700W/3400 W
-
Connectors:
-
Neutrik 2*NL4
Specification
|
Setting Information
|
|
|
|
Type
|
gyimpex audio KL310 double 10 inch line array speaker neodymium speaker component line array
|
|
|
size
|
dual 10 inch three way
|
|
|
material
|
high quality blywood
|
|
|
color
|
waterproof Black color finish
|
|
|
customize
|
yes
|
|
|
Dimension
|
330*1000* 597 mm
|
|
|
USE
|
LF: 2 x 10" + 2 x 8"; MF: 1 x 8"; HF: 2 x 1.4"
|
|
|
brand
|
GYIMPEX
|
|
Product Description

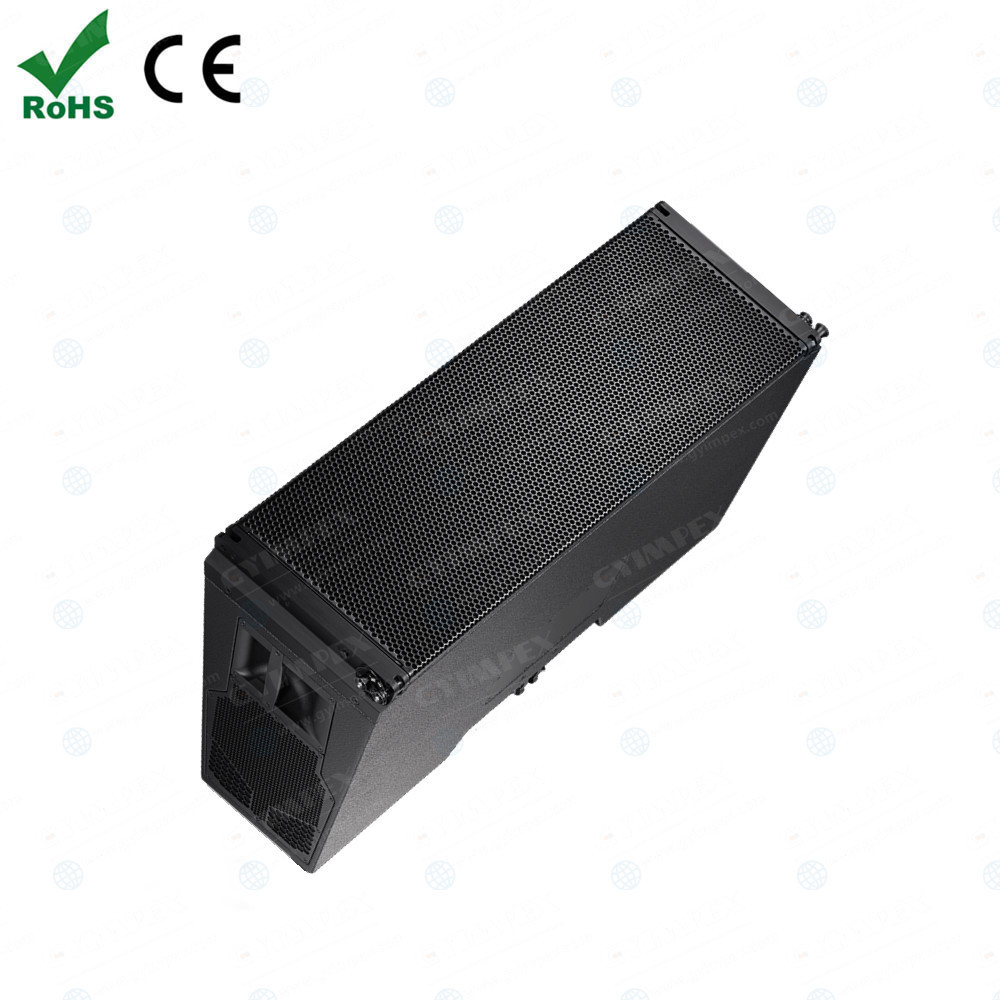

KL310 loudspeaker Medium to large format 3-way line array loudspeaker
Components LF: 2 x 10" + 2 x 8"; MF: 1 x 8"; HF: 2 x 1.4" exit compression driver with 3" coil
Nominal impedance front LF8 ohms
Nominal impedance side LF/MF/HF8 ohms
Components LF: 2 x 10" + 2 x 8"; MF: 1 x 8"; HF: 2 x 1.4" exit compression driver with 3" coil
Nominal impedance front LF8 ohms
Nominal impedance side LF/MF/HF8 ohms
FREQUENCY RESPONSE: 54Hz-18kHZ
Power handling capacity front LF (RMS/peak 10 ms)600w/1800 W/2400w
Power handling capacity side LF/MF/HF (RMS/peak 10 ms)850W/1700W/3400 W
Nominal dispersion angle (horizontal)80 °
Splay angle settings0 … 10° (1° increment)
Passive crossover network
Connections2 x NLT4 F/M
Dimensions (H x W x D)330 x 1000 x 597 mm
Weight:59 kg
Power handling capacity front LF (RMS/peak 10 ms)600w/1800 W/2400w
Power handling capacity side LF/MF/HF (RMS/peak 10 ms)850W/1700W/3400 W
Nominal dispersion angle (horizontal)80 °
Splay angle settings0 … 10° (1° increment)
Passive crossover network
Connections2 x NLT4 F/M
Dimensions (H x W x D)330 x 1000 x 597 mm
Weight:59 kg
