* Smallest dry-wells in the world
* Ranges from 35°C to 375°C
* Accuracy to ± 0.25 °C at 50 °C; ± 0.25 °C at 100 °C; ± 0.5 °C at 375 °C
* Stability of ± 0.07 °C at 50 °C; ± 0.1 °C at 100 °C; ± 0.3 °C at 375 °C
* RS-232 interface with 9930 Interface-it v3.81 software
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
FLUKE
-
Model Number:
-
9100S-C-156
-
Range:
-
95 to 707°F (35 to 375°C)
-
Accuracy:
-
±0.25°C
-
Computer Interface:
-
RS-232
-
Cooling Times:
-
707 to 212°F (375 to 100°C): 14 minutes
-
Dimensions:
-
2.25 x 4.9 x 6.1" (57 x 125 x 150 mm)
-
Weight:
-
2kg
Quick Details
-
Warranty:
-
1 years
-
Power:
-
Electronic
-
Place of Origin:
-
United States
-
Brand Name:
-
FLUKE
-
Model Number:
-
9100S-C-156
-
Range:
-
95 to 707°F (35 to 375°C)
-
Accuracy:
-
±0.25°C
-
Computer Interface:
-
RS-232
-
Cooling Times:
-
707 to 212°F (375 to 100°C): 14 minutes
-
Dimensions:
-
2.25 x 4.9 x 6.1" (57 x 125 x 150 mm)
-
Weight:
-
2kg
Product Description
Compact and lightweight, this handheld dry well is versatile and easy to use. Features a temperature range of up to 707°F, this calibrator is ideal for checking RTDs, thermocouples, and small bimetal thermometers. With the block C configuration, this unit accepts probe diameters of 3⁄16", and 1⁄2".
Mid-Range Dry Well Field Calibrator with Block C, 35 to 375 deg C (95 to 707 deg F)
* Smallest dry-wells in the world
* Ranges from 35°C to 375°C
* Accuracy to ± 0.25 °C at 50 °C; ± 0.25 °C at 100 °C; ± 0.5 °C at 375 °C
* Stability of ± 0.07 °C at 50 °C; ± 0.1 °C at 100 °C; ± 0.3 °C at 375 °C
* RS-232 interface with 9930 Interface-it v3.81 software
The constant temperature block is available in the following configurations. * Block “A” has six holes, four that accept probe diameters of 1/4”, 5/32”, 1/8”, and 1/16”, and two that accept probes of 3/16” diameter to allow comparison calibrations.
* Block “B” has four holes that accept probe
* Smallest dry-wells in the world
* Ranges from 35°C to 375°C
* Accuracy to ± 0.25 °C at 50 °C; ± 0.25 °C at 100 °C; ± 0.5 °C at 375 °C
* Stability of ± 0.07 °C at 50 °C; ± 0.1 °C at 100 °C; ± 0.3 °C at 375 °C
* RS-232 interface with 9930 Interface-it v3.81 software
The constant temperature block is available in the following configurations. * Block “A” has six holes, four that accept probe diameters of 1/4”, 5/32”, 1/8”, and 1/16”, and two that accept probes of 3/16” diameter to allow comparison calibrations.
* Block “B” has four holes that accept probe

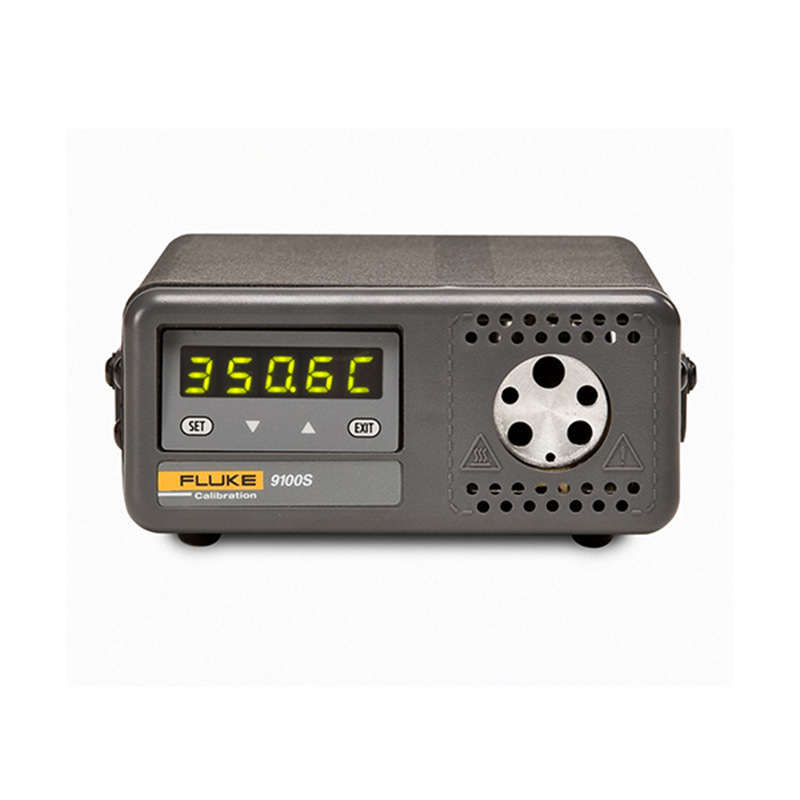

Fluke 9100S-C-156 Mid-Range Dry Well Field Calibrator with Block C, 35 to 375 deg C (95 to 707 deg F)
Since we introduced the world’s first truly handheld dry-well, many have tried to duplicate it—in vain. Despite its small size (2¼ inches high and 5 inches wide) and light weight, the 9100S outperforms every dry-well in its class in the world.
It’s simple and convenient, too. Anyone can learn to use one in less than 15 minutes. It has a range to 375°C (707°F) and is
perfect for checking RTDs, thermocouples, and small bimetal thermometers in the field.
perfect for checking RTDs, thermocouples, and small bimetal thermometers in the field.
Specification
|
Range
|
95 to 707°F (35 to 375°C)
|
|
Accuracy
|
±0.25°C at 50°C
±0.25°C at 100°C ±0.5°C at 375°C |
|
Stability
|
±0.07°C at 50°C
±0.1°C at 100°C ±0.3°C at 375°C |
|
Resolution
|
0.1°C or °F
|
|
Well-to-Well Uniformity
|
±0.2°C with sensors of similar size at equal depths within wells
|
|
Computer Interface
|
RS-232 included with Interface-It software
|
|
NIST-Traceable Calibration
|
Data at 122°F (50°C), 212°F (100°C), 302°F (150°C), 392°F (200°C), 482°F (250°C), 572°F (300°C), and 707°F (375°C)
|
|
Heating Times
|
95 to 707°F (35 to 375°C): 9.5 minutes
|
|
Stabilization
|
5 minutes
|
|
Cooling Times
|
707 to 212°F (375 to 100°C): 14 minutes
|
|
Well Depth
|
4" (102 mm)
1⁄16" (1.6 mm) hole in 3.5" (89 mm) deep |
|
Power
|
115 V AC (±10%), 55 to 65 Hz, 1.5 A or 230 V AC (±10%), 0.8 A, 45 to 55 Hz, 175 W
|
|
Dimensions
|
2.25 x 4.9 x 6.1" (57 x 125 x 150 mm)
|
|
Weight
|
2 lbs (1 kg)
|
