Quick Details
-
Span:
-
4.5-28.5M
-
Place of Origin:
-
Henan
-
Brand Name:
-
Mide
-
Weight (KG):
-
1000 kg
-
Product Name:
-
10 ton Electric trolley travelling single beam Bridge overhead Crane
-
Color:
-
As your requirment
-
Power Source:
-
380v 50Hz 3phase/As your requirement
-
Lifting mechanism:
-
Eliectric Hoist
-
Control method:
-
Remote Controller
-
Crane feature:
-
Easy Operated Girder Bridge Crane
-
After-sales Service Provided:
-
Online Support Provided
-
Certification:
-
ISO CE90001
-
After Warranty Service:
-
Online Support Provided
-
Usage:
-
Lifting cargo
Quick Details
-
Max. Lifting Height:
-
40m
-
Rated Lifting Moment:
-
10T
-
Max. Lifting Load:
-
12.5T
-
Span:
-
4.5-28.5M
-
Place of Origin:
-
Henan
-
Brand Name:
-
Mide
-
Weight (KG):
-
1000 kg
-
Product Name:
-
10 ton Electric trolley travelling single beam Bridge overhead Crane
-
Color:
-
As your requirment
-
Power Source:
-
380v 50Hz 3phase/As your requirement
-
Lifting mechanism:
-
Eliectric Hoist
-
Control method:
-
Remote Controller
-
Crane feature:
-
Easy Operated Girder Bridge Crane
-
After-sales Service Provided:
-
Online Support Provided
-
Certification:
-
ISO CE90001
-
After Warranty Service:
-
Online Support Provided
-
Usage:
-
Lifting cargo

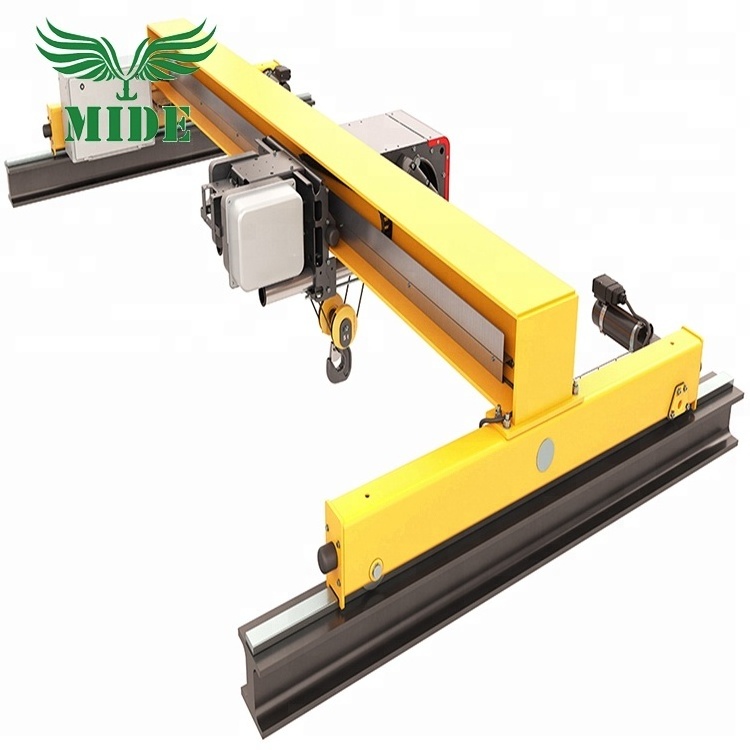

10 ton Electric trolley travelling single beam Bridge overhead Crane for sale
ldc Electric Single Girder Overhead Crane (single girder overhead crane) with electric hoist is characterized
by more reasonable structure and higher strength steel as a whole used together with ND model electric hoist as a complete set,it is light duty crane with a capacity of 1 ton to 12.5tons. The span is 7.5m-22.5m.
ldc Electric Single Girder Overhead Crane (single girder overhead crane) is widely used in plants,
warehouses,material stocks to lift goods. It is prohibited to use the equipment in the combustible,explosive
or corrosive environment. LDC Electric Single Girder Overhead Crane (single girder overhead crane)
has two operational methods,ground or operational room which has open model and closed model can can be installed on left or right side according to the practical intuation. And the direction of entering the gate has two forms,sideway and ends in order to satisfy the users, choice under different conditions.Working grade is A5.
LDC Electric Single Girder Overhead Crane Features & advantages:
· 1. Reasonable structure, light dead weight
· 2. Favorable performance, accurate and smooth lifting.
· 3. Safe and reliable traveling
· 4. Low noise, easy operation,
· 5. Convenient maintenance, high exchangeability for parts and components
· 6. Main girder: box-shaped girder .
|
Lifting capacity(t) |
Span(m) |
Lifting height(m) |
Working duty |
Lifting speed (m/min) |
Cross travelling speed(m/min) |
Long travelling speed(m/min) |
Hoist weight(kg) |
| 1 | 7.5-22.5 | 6,9,12 | 2m/A5 | 0.8/5 | 2-20(VFD) | 3-30(VFD) | 405 |
| 2 | 7.5-22.5 | 6,9,12 | 2m/A5 | 0.8/5 | 2-20(VFD) | 3-30(VFD) | 405 |
| 3.2 | 7.5-22.5 | 6,9,12 | 2m/A5 | 0.8/5 | 2-20(VFD) | 3-30(VFD) | 405 |
| 5 | 7.5-22.5 | 6,9,12 | 2m/A5 | 0.8/5 | 2-20(VFD) | 3-30(VFD) | 500 |
| 10 | 7.5-22.5 | 6,9,12 | 2m/A5 | 0.8/5 | 2-20(VFD) | 3-30(VFD) | 640 |
| 12.5 | 7.5-22.5 | 6,9,12 | 2m/A5 | 0.66/4 | 2-20(VFD) | 3-30(VFD) | 740 |
