Quick Details
-
Model Number:
-
WLT-031
-
Specification:
-
90mm-630mm
-
Length:
-
6m, 9m or cusomed
-
Thickness:
-
1.8mm-21.6mm
-
Standard:
-
ISO16442-2016
-
Color:
-
Blue
-
Name:
-
Olive PVC Pipe
-
Connection:
-
Butt Fusion
-
Application:
-
Conveying Water
-
Working pressure:
-
PN8-PN20
-
Working Temperature:
-
-25℃ to 95℃
-
OEM:
-
Accpet
-
Feature:
-
Biaxial Oriented
-
Life span:
-
over 50 years
-
Advantage:
-
maximum flexibility pvc pipe, thin wall pipe
Quick Details
-
Processing Service:
-
Moulding, Cutting
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Olive
-
Model Number:
-
WLT-031
-
Specification:
-
90mm-630mm
-
Length:
-
6m, 9m or cusomed
-
Thickness:
-
1.8mm-21.6mm
-
Standard:
-
ISO16442-2016
-
Color:
-
Blue
-
Name:
-
Olive PVC Pipe
-
Connection:
-
Butt Fusion
-
Application:
-
Conveying Water
-
Working pressure:
-
PN8-PN20
-
Working Temperature:
-
-25℃ to 95℃
-
OEM:
-
Accpet
-
Feature:
-
Biaxial Oriented
-
Life span:
-
over 50 years
-
Advantage:
-
maximum flexibility pvc pipe, thin wall pipe
Products Description

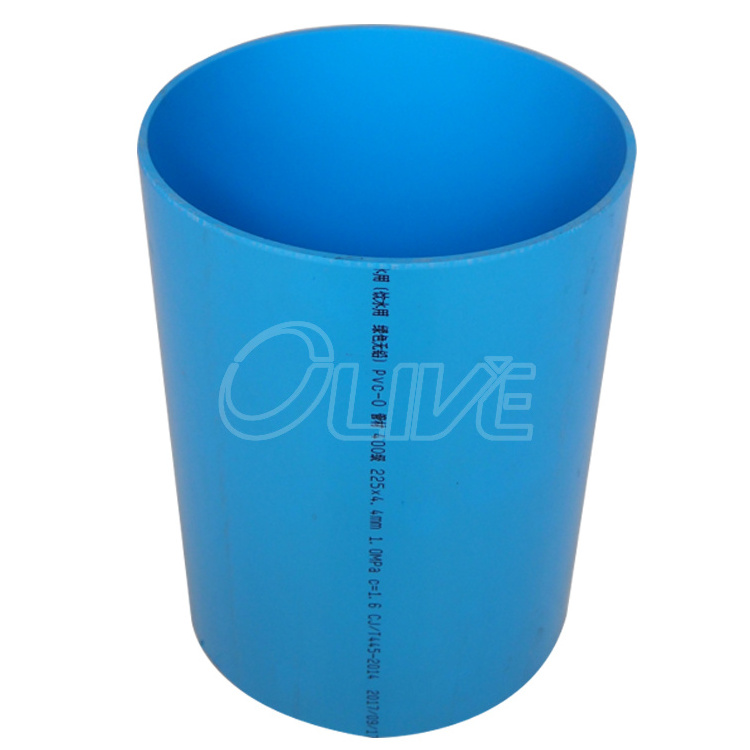

Oriented PVC O Pipe
PVC-O pipes
also called biaxial oriented PVC pipes.Under certain conditions of pressure,temperature and speed,by stretching the material in hoop and axial orientation,a higher of can be seen at a glance.The process of molecular orientation greatly enhances PVC's physical and mechanical properties.PVC-O pipes strength 2 times compare with PVC-U,the impact resistance and cold temperature resistance 5 times compare with PVC-U pipe.PVC-O pipes are the most advanced pipes for the conveyance of high-pressure water in the world.
Crack propagation
Fatigue resistance
High hydraulic capacity
Maximum flexibility
|
Class 450 C=1.4
|
|
|
Class 450 C=1.6
|
|
|
||||
|
PN
|
1.0Mpa
(Class 400 C=1.6 0.8Mpa) |
1.25Mpa
(Class 400 C=1.6 1.0Mpa) |
1.25Mpa
|
1.6Mpa
|
2.0Mpa
|
||||
|
Nominal diameter
|
Wall thickness mm
|
Wall thickness mm
|
Wall thickness mm
|
Wall thickness mm
|
Wall thickness mm
|
||||
|
110
|
1.8
|
2.2
|
2.4
|
3.1
|
3.8
|
||||
|
125
|
2.0
|
2.5
|
2.8
|
3.5
|
4.3
|
||||
|
140
|
2.2
|
2.8
|
3.1
|
3.9
|
4.8
|
||||
|
160
|
2.5
|
3.2
|
3.5
|
4.4
|
5.5
|
||||
|
180
|
2.8
|
3.6
|
4.0
|
5.0
|
6.2
|
||||
|
200
|
3.2
|
3.9
|
4.4
|
5.5
|
6.9
|
||||
|
225
|
3.5
|
4.4
|
5.0
|
6.2
|
7.7
|
||||
|
250
|
3.9
|
4.9
|
5.5
|
6.9
|
8.6
|
||||
|
280
|
4.4
|
5.5
|
6.2
|
7.7
|
9.6
|
||||
|
315
|
4.9
|
6.2
|
6.9
|
8.7
|
10.8
|
||||
|
355
|
5.6
|
7.0
|
7.8
|
9.8
|
12.2
|
||||
|
400
|
6.3
|
7.9
|
8.8
|
11.0
|
13.7
|
||||
|
140
|
7.0
|
8.8
|
9.9
|
12.4
|
15.4
|
||||
|
500
|
7.8
|
9.8
|
11.0
|
13.7
|
17.1
|
||||
|
560
|
8.8
|
11.0
|
12.3
|
15.4
|
19.2
|
||||
|
630
|
9.9
|
12.3
|
13.8
|
17.3
|
21.6
|
||||
