Quick Details
-
Product name:
-
10m aluminum heavy duty motorized telescoping mast
-
Height:
-
Extended height: 10m; Closed length:2.1m
-
Material:
-
Main Pole: aluminum alloy6063B/T5
-
Color:
-
Green
-
Wind load::
-
working rate: 80km/h
-
section:
-
7 sections
-
Temperature::
-
working temp:-40--+50C
-
technology:
-
Power connecting method:original plug-without wire
-
Bottom base tube::
-
Bottom plate: Length:400mm width:190mm Thickness: 10mm
-
Accessories::
-
Motor, Pulling cord box with handle bars, Ground anchor
Quick Details
-
Brand Name:
-
Talents motorized rod
-
Model Number:
-
TAL-M10-2.1-30
-
Place of Origin:
-
Tianjin, China
-
Product name:
-
10m aluminum heavy duty motorized telescoping mast
-
Height:
-
Extended height: 10m; Closed length:2.1m
-
Material:
-
Main Pole: aluminum alloy6063B/T5
-
Color:
-
Green
-
Wind load::
-
working rate: 80km/h
-
section:
-
7 sections
-
Temperature::
-
working temp:-40--+50C
-
technology:
-
Power connecting method:original plug-without wire
-
Bottom base tube::
-
Bottom plate: Length:400mm width:190mm Thickness: 10mm
-
Accessories::
-
Motor, Pulling cord box with handle bars, Ground anchor
Product Description
10m aluminum heavy duty motorized telescoping mast
|
technical data
|
|
|
|
|||
|
main spec.
|
Closed length:2.1m (Bottom base included)
Extended length: 10m (Bottom base included)
Max. payload: 30kg
Temperature: working temp:-40--+50C Storage Temp:-55--+70C
|
|
|
|||
|
main pole in sections
|
Section No. OD Thickness
1# 42mm 3.0mm 2# 55mm 3.0mm 3# 69mm 3.0mm
4# 83mm 3.0mm
5# 98mm 3.0mm
6# 114mm 3.0mm
7# 132mm 3.0mm
|
|
|
|||
|
Bottom base
|
length*width:620*220mm Thickness: 12mm
|
|
|
|||
|
Accessories
|
Motor: (AC220v 300w)---------------------------------1 piece
Handle lifting bar----------------------------------------1 piece Electrical equipment control box---------------------1 unit Remote-controller----------------------------------------2 pieces |
|
|
|||
|
Material
|
Main Pole: aluminum alloy
Bottom base and accessories(except the stakes): iron steel Pulling cord: stainless steel wire(OD:2mm) |
|
|
|||
|
Color
|
the whole unit will be in green when closed, but when extended, the main pole will be in origin color of aluminum alloy only with top 4cm of each pole section in green color.Technology: painting
|
|
|
|||

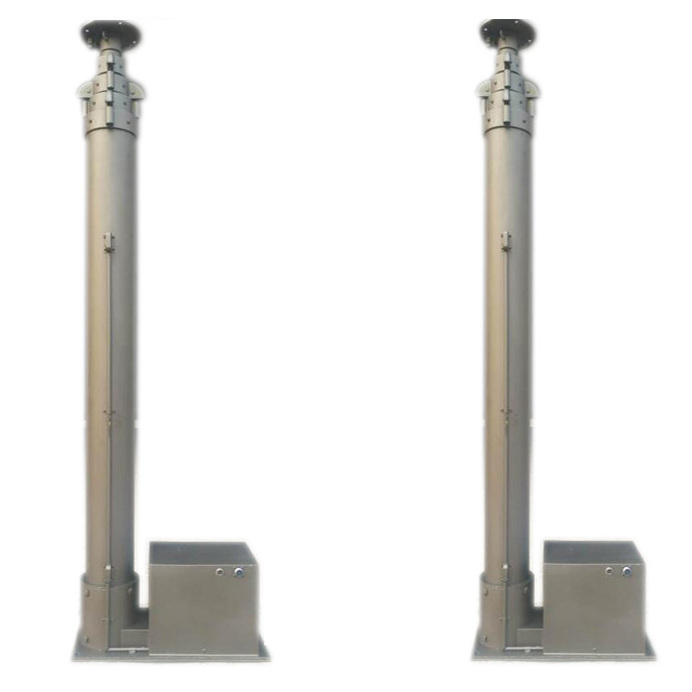

Product picture
15m aluminum heavy duty motorized telescoping mast
Accessories example
15m aluminum heavy duty motorized telescoping mast
Packing & Delivery
|
package
|
|
|
|
|||
|
plywood packed
|
one set mast with accessories wrapped by polyester tapes, then packed into a
plywood case
|
|
|
|||
Our Service
OEM/ODM service available for the buyers
Professional team for consulation, solution and designing
Complete quality control system before delivery
Multi-way fast delivery channel at buyer's option
One year free after-sale warranty after delivery
Catalog
we supply telescopic mast up to 35m,usually used as antenna mast,communication tower,light support,camera mast and so on,custom-made payload to 400kg,customized length,retracted,payload etc. accepted.
catalog of some common grade motorized mast as follows
|
extended height
(m)
|
No. of section
|
retracted height
(m)
|
outer tube range
(mm)
|
self weight
(kg)
|
|
4
|
3
|
1.6
|
60-80
|
34
|
|
5
|
4
|
1.65
|
50-80
|
38
|
|
6
|
5
|
1.7
|
50-90
|
42
|
|
8
|
6
|
1.8
|
40-90
|
54
|
|
10
|
7
|
1.95
|
30-90
|
58
|
|
12
|
7
|
2.2
|
30-90
|
65
|
|
15
|
8
|
2.45
|
30-105
|
78
|
|
18
|
9
|
2.7
|
30-130
|
102
|
|
20
|
9
|
2.95
|
30-130
|
110
|
|
22
|
9
|
3.15
|
30-130
|
130
|
|
25
|
10
|
3.4
|
30-150
|
154
|
|
30
|
10
|
3.85
|
30-150
|
170
|
Our Company
Talents is a Chinese company that design, manufacture and supply a range of manual/electric/pneumatic/hydraulic operated telescopic masts and lifting devices that made of aluminum alloy tube, stainless steel tube, fiberglass tube and carbon fiber tube.
Talents was founded in 1995, since then we focus on offering customers high quality, durable, applied and economic masts. 23 years of our specialized knowledge and experience of the telescopic mast technology allows us to effectively supply the solutions and designing for the OEM/ODM and after-sale services of the mast to meet our customer's needs, whilst ensuring that we are achieving maximum efficiency and output at the same time. We are serving our long-term customers from the five Continents and the four Oceans
Our masts are CE certified, we have been a golden supplier on Alibaba since 2007, we are keeping with our customers
an one for one timely information feedback, we have organized an expert team for quality control and inspection system,
we have built up Multi-way fast delivery channels and we are supplying one year free after-sale warranty to the buyer. We
think outside the box and are continually developing new products to meet customer requirements, what you are asking
for is our motive power of task, we wish one of our products will well-meet what you demand.
