Quick Details
-
Dimension(L*W*H):
-
4000*1700*2200mm
-
Weight:
-
5000KG, 5000 kg
-
Model & Name:
-
JK-DR200X
-
Dimensions(mm):
-
3950*1700*2300 mm
-
Power Oil:
-
Diesel
-
Engine Model:
-
QUANCHAI
-
Rated Power:
-
65KW
-
Travelling System:
-
Rubber Crawler
-
Drilling depth:
-
200m
-
Bore diameter:
-
140-203mm
-
Drive Head Stroke:
-
3.4m
-
Certification:
-
CE,ISO
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SDJK
-
Voltage:
-
24V
-
Dimension(L*W*H):
-
4000*1700*2200mm
-
Weight:
-
5000KG, 5000 kg
-
Model & Name:
-
JK-DR200X
-
Dimensions(mm):
-
3950*1700*2300 mm
-
Power Oil:
-
Diesel
-
Engine Model:
-
QUANCHAI
-
Rated Power:
-
65KW
-
Travelling System:
-
Rubber Crawler
-
Drilling depth:
-
200m
-
Bore diameter:
-
140-203mm
-
Drive Head Stroke:
-
3.4m
-
Certification:
-
CE,ISO

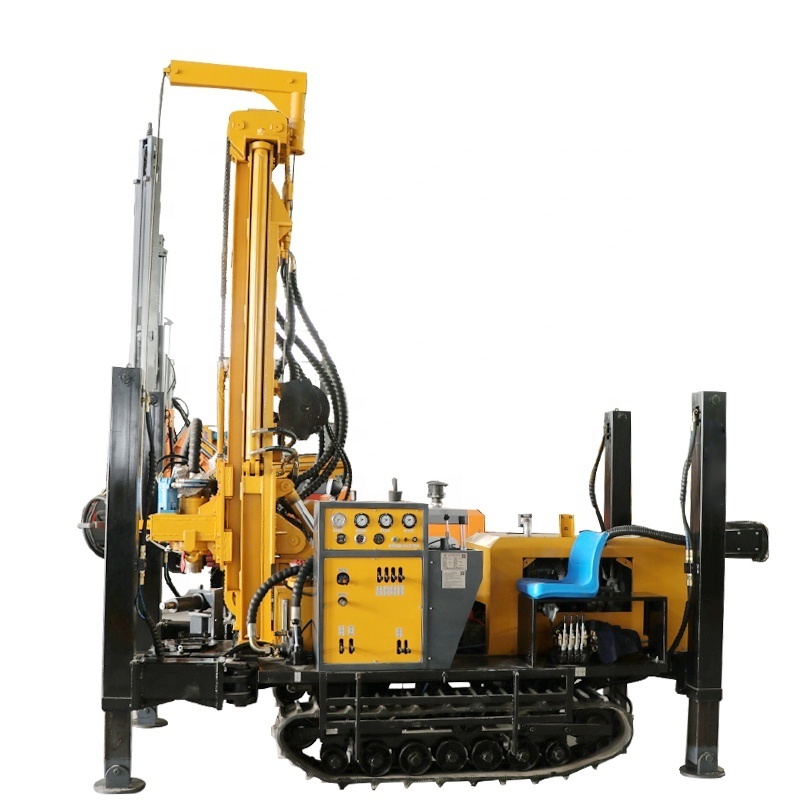

The JK-DR200X drilling rig with AC(Air Compressor) method is capable of drilling upto 185mm diameter holes for pore-forming purposes to a depth of 200 meters.
Product Display
JK-DR series water well drilling rig uses full hydraulic control, and the Top drive to drive the rotation of drilling tools with very high drilling efficiency.
There are 180, 200, 300, 350, 400, 500, 600, 800 and other series of water well drilling rigs.
This series of water well drilling machine has the characteristics of standardized configuration, compact and reasonable structure, fast drilling speed, economical and durable, low failure rate, etc. It has been recognized by the market once it is launched, and has been widely used in mining engineering construction, civil drilling, geothermal drilling and other fields.
|
Model & Name
|
JK-DR200X
|
Travelling speed
|
2.5km/h
|
|
Weight
|
5000 kg
|
Gradeability
|
30%
|
|
Dimensions（mm）
|
3950*1700*2300mm
|
Rated pressure
|
1.7-3.0 MPa
|
|
Power Oil
|
Diesel
|
Air consumption
|
17-30 m³/min
|
|
Engine Model
|
QUANCHAI
|
Drill rod diameter
|
Φ76,Φ89mm
|
|
Rated Power
|
65 kW
|
Drill rod length
|
1.5m, 2.0m, 3.0m
|
|
Travelling System
|
Rubber Crawler
|
Elevating capacity
|
13Ton
|
|
Drilling depth
|
200m
|
Swing speed
|
45-65rpm
|
|
Bore diameter
|
140-203mm
|
Swing torque
|
3500-4700 N.m
|
|
Drive Head Stroke
|
3.4m
|
|
|
