Quick Details
-
Brand Name:
-
CLW
-
Dimension(L*W*H):
-
7700*2200*3350
-
Capacity:
-
Requirment
-
Weight:
-
7950
-
Inner Material:
-
carbon steel
-
Outer Material:
-
carbon steel
-
Design Pressure(MPa):
-
1.71map
-
Design Standard:
-
GB150 CCC, ASME, ISO9001:2008
-
Working Temperature(℃):
-
-50 - 50 ℃
-
Color:
-
Requirment
-
Material:
-
Carbon Steel
-
Application:
-
Industry Equipment
-
Product name:
-
lpg cylinder plant for sale
-
Certification:
-
ISO9001 CCC ASME
-
Medium:
-
LO2/LCO2/LAr/LN2
-
Filling medium:
-
Propane
-
Type:
-
Groud Storage Tank
-
Working medium:
-
Oil Gas
-
Name:
-
LPG skid station 10MT cylinder Bottling Plant for sale in Nigeria
-
After-sales Service Provided:
-
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
-
After Warranty Service:
-
Video technical support, Online support, Field maintenance and repair service
-
Local Service Location:
-
None
Quick Details
-
Volume (m³):
-
5 to 120cbm
-
Max Working Pressure(MPa):
-
1.71 MPa
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
CLW
-
Dimension(L*W*H):
-
7700*2200*3350
-
Capacity:
-
Requirment
-
Weight:
-
7950
-
Inner Material:
-
carbon steel
-
Outer Material:
-
carbon steel
-
Design Pressure(MPa):
-
1.71map
-
Design Standard:
-
GB150 CCC, ASME, ISO9001:2008
-
Working Temperature(℃):
-
-50 - 50 ℃
-
Color:
-
Requirment
-
Material:
-
Carbon Steel
-
Application:
-
Industry Equipment
-
Product name:
-
lpg cylinder plant for sale
-
Certification:
-
ISO9001 CCC ASME
-
Medium:
-
LO2/LCO2/LAr/LN2
-
Filling medium:
-
Propane
-
Type:
-
Groud Storage Tank
-
Working medium:
-
Oil Gas
-
Name:
-
LPG skid station 10MT cylinder Bottling Plant for sale in Nigeria
-
After-sales Service Provided:
-
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
-
After Warranty Service:
-
Video technical support, Online support, Field maintenance and repair service
-
Local Service Location:
-
None

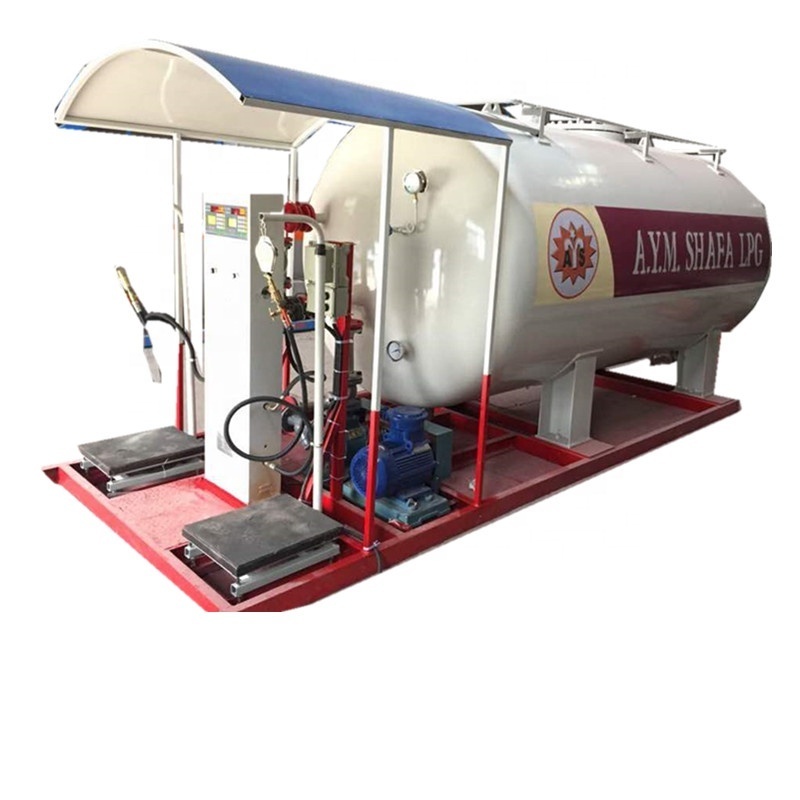

5tons 10tons 15tons 20tons 50tons LPG skid station 10MT cylinder Bottling mobile gas filling storage station Plant for sale
1. 10CBM LPG filling skid LPG gas filling station lpg skid station is mainy used to fill cylinders for home, rustrant, hotels etc. which is very portable to delivery and very good quality. we can provide 2.5tons, 5tons, 10tons, 20tons, 50tons LPG skid tank.
2. 10CBM LPG filling skid LPG gas filling station lpg skid station more pictures. and also we can produce it as your requirements
Product details for Manufacture price LPG skid station 10MT cylinder Bottling Plant for sale in Nigeria
|
Item |
Unit |
Parameter |
|
Products name |
/ |
lpg cylinder plant for sale |
|
Filling material |
/ |
LPG(propane) |
|
Vechicle size |
mm |
7700*2200*3350 |
|
Tanker size |
mm |
DN1600*10*5940 |
|
Effective volum |
m3 |
10 |
|
Curb weight |
kg |
3165 |
|
Design pressure |
Mpa |
1.77 |
|
Working pressure |
Mpa |
<=1.61 |
|
Working temprature |
ºc |
<=50 |
|
Water test pressure |
Mpa |
2.22 |
|
Sealed test pressure |
Mpa |
1.77 |
|
Tanker material |
Q345R |
|
|
Products standard |
GB150 pressure vessurl standard |
|
|
Option valve |
Safety valve, column magnetic reversible level meter, pressure gauge, thermometer, valve, etc. |
|
The above information is for reference only. We can produce according to your needs so, If you have any questions you can contact me at any time.
lpg cylinder plant for sale pictures:
we supply 5-120m3 lpg tank, lpg storage tank, lpg transport tank, lpg tanker trailers, propane transport trailers for sale, propane tanker trailers for sale, 5 tons lpg skid filling station, 5 tons lpg filling skid station, gas filling station, lpg skid-mounted filling station.
lpg cylinder plant for sale internal drawing
LPG Tanker Main Accessories
1. LPG dispenser 2. LPG pump 3. LPG liquid level gauge
4. LPG safty valve 5. LPG pressure meter 6. LPG thermometer
7. LPG liquid phase 8. LPG gas phase 9. LPG Emergeny Cut-off Valves
10. LPG tanker truck manhole
lpg cylinder plant for sale operating floor
