Quick Details
-
Tolerance:
-
±3%
-
Invoicing:
-
by theoretical weight
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Hongyan
-
Model Number:
-
CS-EA
-
Application:
-
Construtural
-
Thickness:
-
5-34mm
-
Material:
-
Q235/Q235B/Q345/Q345B
-
Package:
-
Standard Seaworthy Packing
-
Certificate:
-
ISO9001/BV
-
Technique:
-
Hot Rolled Cold Rolled
-
Surface:
-
Galvanized Coated
-
Usage:
-
Building Construction Material
-
Shape:
-
Equal Leg
-
Surface treatment:
-
Customers's Requirements
-
Steel Grade:
-
ASTM A53/A106
Quick Details
-
Standard:
-
EN
-
Grade:
-
S235JR-S335JR Series
-
Type:
-
Equal
-
Tolerance:
-
±3%
-
Invoicing:
-
by theoretical weight
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Hongyan
-
Model Number:
-
CS-EA
-
Application:
-
Construtural
-
Thickness:
-
5-34mm
-
Material:
-
Q235/Q235B/Q345/Q345B
-
Package:
-
Standard Seaworthy Packing
-
Certificate:
-
ISO9001/BV
-
Technique:
-
Hot Rolled Cold Rolled
-
Surface:
-
Galvanized Coated
-
Usage:
-
Building Construction Material
-
Shape:
-
Equal Leg
-
Surface treatment:
-
Customers's Requirements
-
Steel Grade:
-
ASTM A53/A106

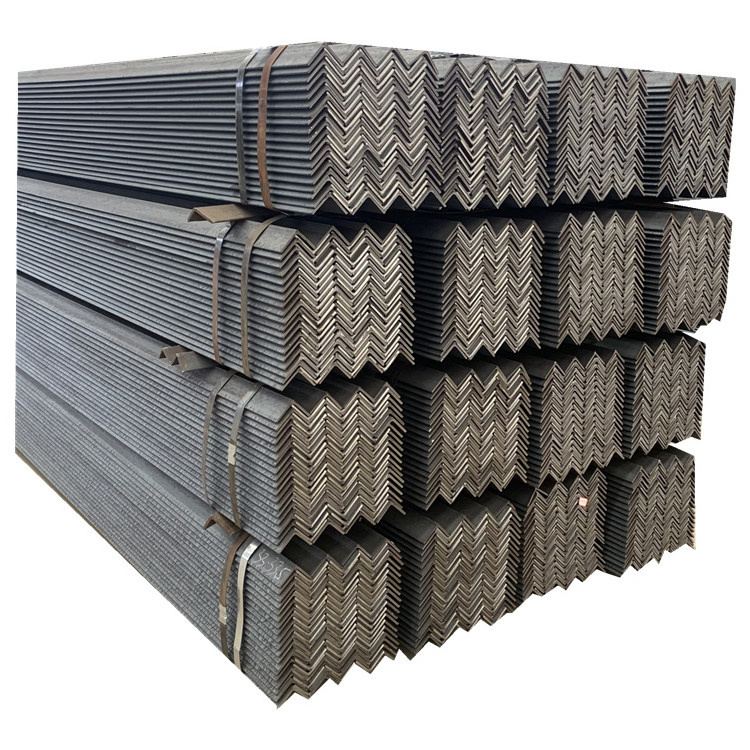

Angle steel, commonly known as angle iron, is a long strip of steel that is perpendicular to each other and forms an angle. There are equilateral angle steel and unequal angle steel. Its specifications are expressed in millimeters of side width x side width x side thickness. The specifications of hot-rolled equilateral angle steel are 20-200mm.
Specification
|
Product Name
|
Angle Steel
|
|
Shape
|
Equal/Unequal
|
|
Standard
|
AISI, ASTM, BS, DIN, GB, JIS
|
|
Grade
|
Q235/Q345/SS400/ST37-2/ST52/Q420/Q460/S235JR/S275JR/S355JR
|
|
Specification
|
20*20-200*200mm
|
|
Thickness
|
6-35mm
|
|
Length
|
6m, 9m, 12m or as customized
|
|
Surface treatment
|
Hot Dip Gavalnized / Black / Painted
|
|
Zinc coating
|
30-90um
|
|
Packing
|
In bundles
|
|
Delivery Time
|
10~20days
|
|
Payment Terms
|
L/C , T/T or Western Union
|
We have 20000 tons in stock.
Sufficient stock and fast delivery.
Please tell me your requirements. I can provide more product details and the latest quotation.
|
Equal Steel Angle
|
|
|
|
|
|
|||||
|
Size(mm)
|
Thickness(mm)
|
Size(mm)
|
Thickness(mm)
|
Size(mm)
|
Thickness(mm)
|
|||||
|
25*25
|
2.0-4.0
|
80*80
|
6.0-10.0
|
80*80
|
6.0-10.0
|
|||||
|
30*30
|
2.5-4.0
|
90*90
|
6.0-12.0
|
90*90
|
6.0-12.0
|
|||||
|
40*40
|
2.5-5.0
|
100*100
|
6.0-16.0
|
100*100
|
6.0-16.0
|
|||||
|
50*50
|
3.0-6.0
|
110*110
|
7.0-14.0
|
110*110
|
7.0-14.0
|
|||||
|
60*60
|
4.0-6.0
|
125*125
|
8.0-14.0
|
125*125
|
8.0-14.0
|
|||||
|
63*63
|
4.0-8.0
|
140*140
|
8.0-16.0
|
140*140
|
8.0-16.0
|
|||||
|
65*65
|
4.0-8.0
|
160*160
|
10.0-16.0
|
160*160
|
10.0-16.0
|
|||||
|
70*70
|
5.0-8.0
|
180*180
|
10.0-18.0
|
180*180
|
10.0-18.0
|
|||||
|
75*75
|
5.0-10.0
|
200*200
|
14.0-24.0
|
200*200
|
14.0-24.0
|
|||||
Please tell me your requirements. I can provide more product details and the latest quotation.
|
Unequal steel angles
|
|
|
|
|
|
|||||
|
Size(mm)
|
Size(mm)
|
Size(mm)
|
Size(mm)
|
Size(mm)
|
Size(mm)
|
|||||
|
25*16*3
|
70*50*5-10
|
110*70*6-8
|
50*32*3/4
|
90*56*5-8
|
160*100*10-16
|
|||||
|
32*20*4
|
70*45*5-7
|
125*80*7-12
|
50*36*3-5
|
100*63*6-10
|
180*110*10-16
|
|||||
|
40*25*3/4
|
80*50*5-8
|
140*90*10-14
|
63*40*4-7
|
100*80*6-10
|
200*125*12-18
|
|||||
