Quick Details
-
Control System Brand:
-
RuiDa
-
Cutting Area:
-
1600*1000mm
-
Control Software:
-
RDWORKS
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SHENHUI
-
Weight (KG):
-
390 KG
-
Products handled:
-
roll leather paper fabric foam felt
-
Product name:
-
auto feeding laser fabric cutter 1610 for cloth leather felt paper
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Certification:
-
CE / ISO /
-
Working size:
-
OEM supported
-
Laser power:
-
80-180W optional
-
Software:
-
Laser work
-
Cooling way:
-
water cooling
-
Name:
-
automatic feeding laser cutter
-
Usage:
-
leather fabrics felt foam
-
Key words:
-
Cnc Auto Machine
Quick Details
-
Laser Type:
-
CO2
-
Cutting Speed:
-
max 30000mm/min
-
Cooling Mode:
-
WATER COOLING
-
Control System Brand:
-
RuiDa
-
Cutting Area:
-
1600*1000mm
-
Control Software:
-
RDWORKS
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SHENHUI
-
Weight (KG):
-
390 KG
-
Products handled:
-
roll leather paper fabric foam felt
-
Product name:
-
auto feeding laser fabric cutter 1610 for cloth leather felt paper
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Certification:
-
CE / ISO /
-
Working size:
-
OEM supported
-
Laser power:
-
80-180W optional
-
Software:
-
Laser work
-
Cooling way:
-
water cooling
-
Name:
-
automatic feeding laser cutter
-
Usage:
-
leather fabrics felt foam
-
Key words:
-
Cnc Auto Machine

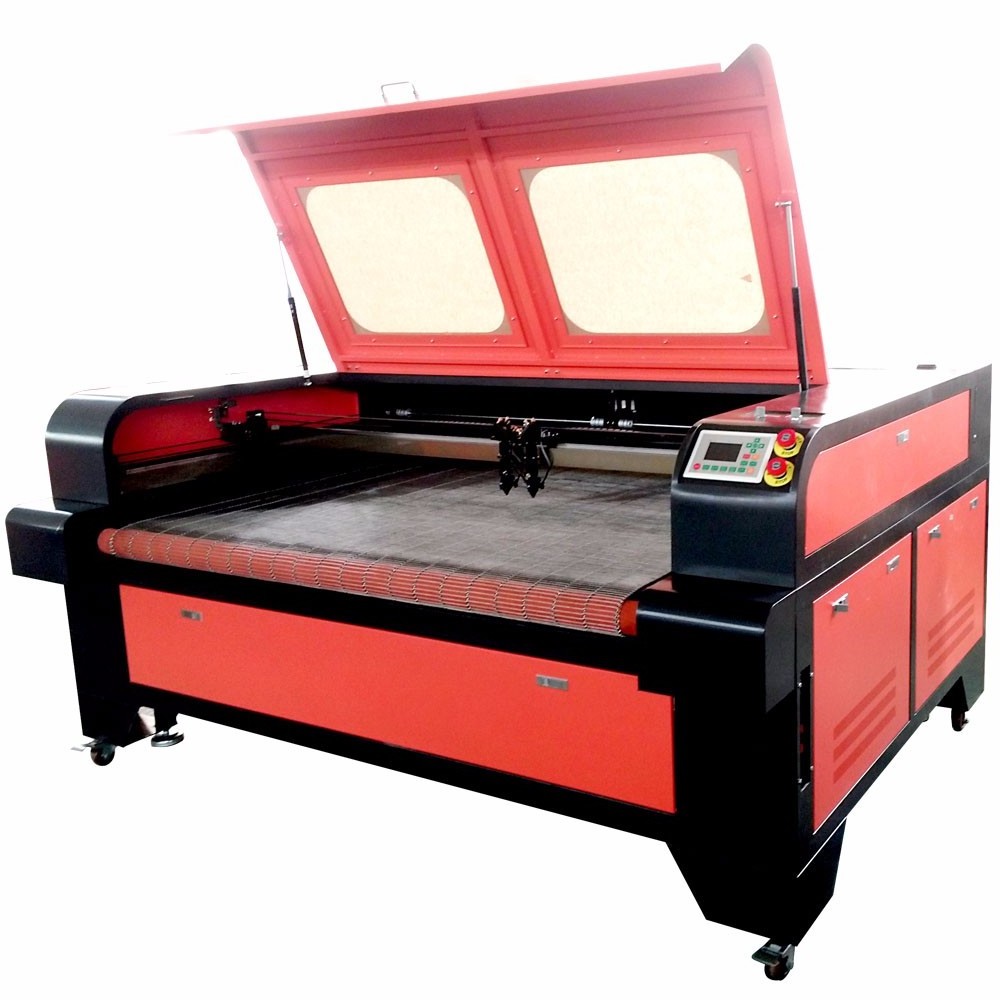

auto feeding laser fabric cutter 1610 for cloth leather felt paper
Applicable materials
Cloth, leather, woolens, paper, non-woven fabric, model, intertexture, bag and other non-metal materials
Applicable industry
Clothing, embroidery cut, cloth toys, paper produtcs, leather goods, industrial ,model and other materials needing wide-format cutting, trimming and engraving
Technical Parameters
|
Laser power |
80W-180W (optional) |
|
Power supply |
AC220 / AC110 ±10%, 50HZ / 60HZ |
|
Max processing area |
1600*1000 mm / 1800x1600mm( Optional ) |
|
Cutting speed |
0-30,000mm/min |
|
Locating precision |
0.03mm |
|
Operating temperature |
0-45 centigrade |
|
Environment temperature |
5-95%(without dew) |
|
Graphic format supported |
BMP, BIF, JAGE,PCX, TGA, TIFF, PLT, CDR, DMG,DXF |
|
Assistant fitting |
exhaust fan and pipe |
|
Workable |
professional thick honeycomb table |
|
Whole machine power consume |
≤ 2250w |
|
Machine dimension |
2180x1580x1120mm |
|
Package size |
plywood case 2300x1900x1300mm |
|
Net weight/gross weight |
390kg/440kg |
Detailed Images
Product Overview
Packing List
| Machine parts | ||
| Name | Amount | Units |
| Water pump | 1 | sets |
| Air pump | 1 | sets |
| power line | 1 | pcs |
| Smoke pipe | 1 | pcs |
| Water pipe | 1 | pcs |
| Air pipe | 1 | pcs |
| Inner hexagon spanner | 6 | pcs |
| Tools bags | ||
| Name | Amount | Units |
| English manual book | 1 | pcs |
| Software CD | 1 | pcs |
| USB line | 1 | pcs |
| Silicone | 1 | pcs |
| Focus rular | 1 | pcs |
| Double sticky tape paper | 1 | pcs |
| Plugs and socket | 3 |
pcs
|
Machine Cutting samples
Our company
Factory size is 33000M2
We are professional manufacture that OEM machines for others small factory and Traders !
Over 23 years export experience.
15 years of Alibaba gold suppier.
Shenhui had keeping exported to many countries,Export quantity 1200sets every month.
Warranty
(1) .The warranty of machine is1 year
(2).The warranty is dated from EX factory date
(3) .During warranty, we will send the parts to you for repairing or replacing
(4) .If there's any problem in the future, we will give you tech support by mail,Teamviewer, or Skype to fix it.
After-sales service
No matter what kind of product problems, our customer service staff will deal with it as soon as possible.We offer online service 24 hours all day trademanager, Email What's app and so on. Please fell free to contact us .
Shipping&Packaging
| Payment Terms | Alibaba trade assurance / T/T / Western union / Paypal / L/C / Credit card |
| Production Time |
Our factory will start production after first payment confirmed .We will send machines after full payment confirmed. |
| Way of Packing |
1.Packed the laser machine with PE film for clearing and damp proofing 2.Put the laser machine in carton safety and clashing. 3.Pack the machine with standard plywood case for export. 4.Stencil the shipping mark on all of the cases . |
| Way of Shipping | We supported shipping by Express (DHL/TNT/UPS/FEDEX) / Air / Sea /Railway |
Business Trade Team Visited our factory
Alibaba Trade Assurance history
Welcome your inquiry and Order !
