Quick Details
-
Brand Name:
-
Brightway
-
Model Number:
-
BW-1000/250
-
Place of Origin:
-
Zhejiang, China
-
Horsepower:
-
18.5kw
-
Cable Length:
-
Customized
-
Outlet Size:
-
68#
-
Power:
-
50hz or customized
-
Type:
-
Cryogenic Piston Pump
-
Material:
-
Stainless Steel
-
Flow rate:
-
1000L/h
-
Inlet pressure:
-
0.2bar-16bar
-
Max pressure:
-
250bar
-
Medium:
-
Liquid natural gas LNG CNG
-
Packing:
-
Standard Wooden Case
-
Warranty:
-
1 Year
-
Delivery time:
-
30days
Quick Details
-
Application:
-
District Energy, Food and Beverage Industry, Metal and Equipment Manufacturers
-
Pressure:
-
250bar, High Pressure
-
Voltage:
-
380v or customized
-
Brand Name:
-
Brightway
-
Model Number:
-
BW-1000/250
-
Place of Origin:
-
Zhejiang, China
-
Horsepower:
-
18.5kw
-
Cable Length:
-
Customized
-
Outlet Size:
-
68#
-
Power:
-
50hz or customized
-
Type:
-
Cryogenic Piston Pump
-
Material:
-
Stainless Steel
-
Flow rate:
-
1000L/h
-
Inlet pressure:
-
0.2bar-16bar
-
Max pressure:
-
250bar
-
Medium:
-
Liquid natural gas LNG CNG
-
Packing:
-
Standard Wooden Case
-
Warranty:
-
1 Year
-
Delivery time:
-
30days

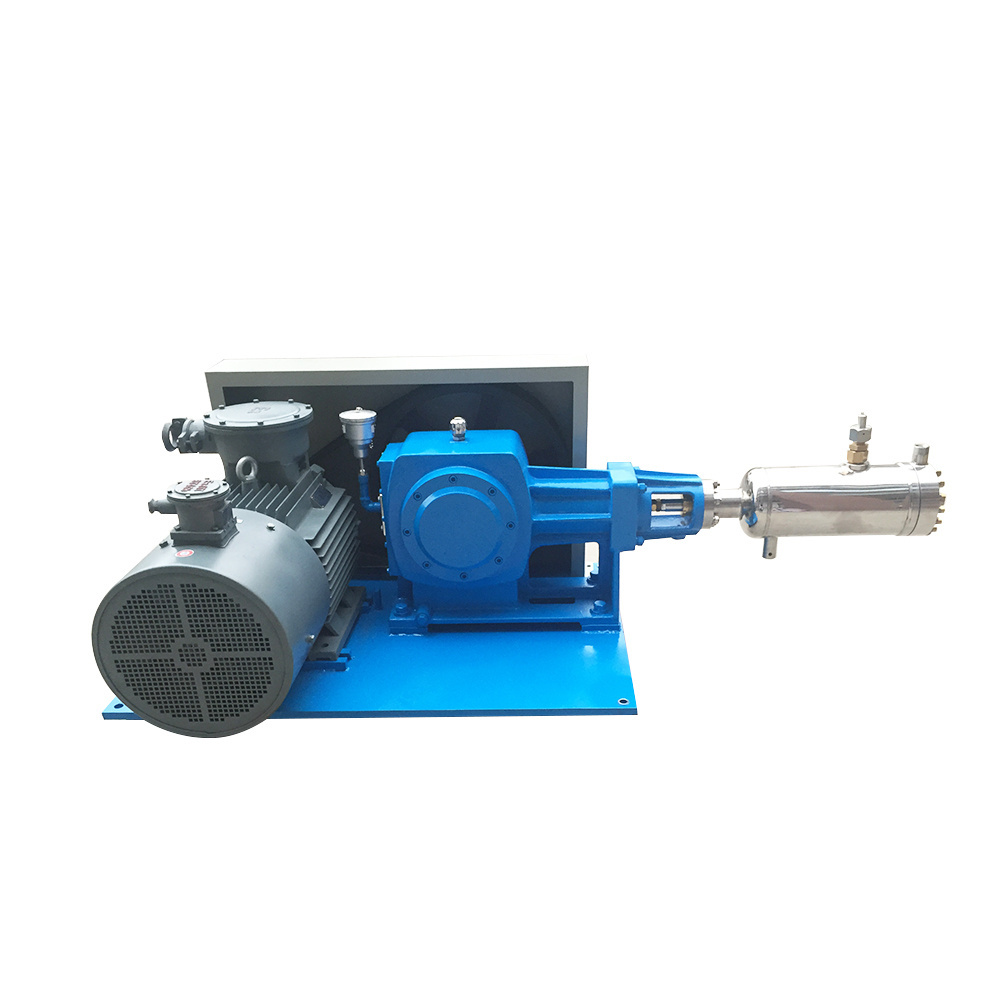

L-CNG High Pressure Pumps
Suitable Media:LNG
Scope of Application:L-CNG natural gas station&Filling of CNG tanks
Main Technical Parameters:
Flow :500-2000L/h
Max outlet pressure:25.0MPa
Optional Configuration:
Stationary motor/ frequency control
Safety valve/Cryogenic stop valve
Stationary motor /frequency control
Back temperature interlocking device
Air outlet temperature interlocking device
Air outlet pressure interlocking device
Transmission case oil temperature interlocking
PLC control system
Supply of skid
| Type | Flow range L/h | Inlet pressure Mpa | Max pressure Mpa |
| Single&Horizontal&Piston | 500 | 0.02-1.6 | 25.0 |
| 800 | |||
| 1000 | |||
| 1200 | |||
| 1500 | |||
| 2000 |
