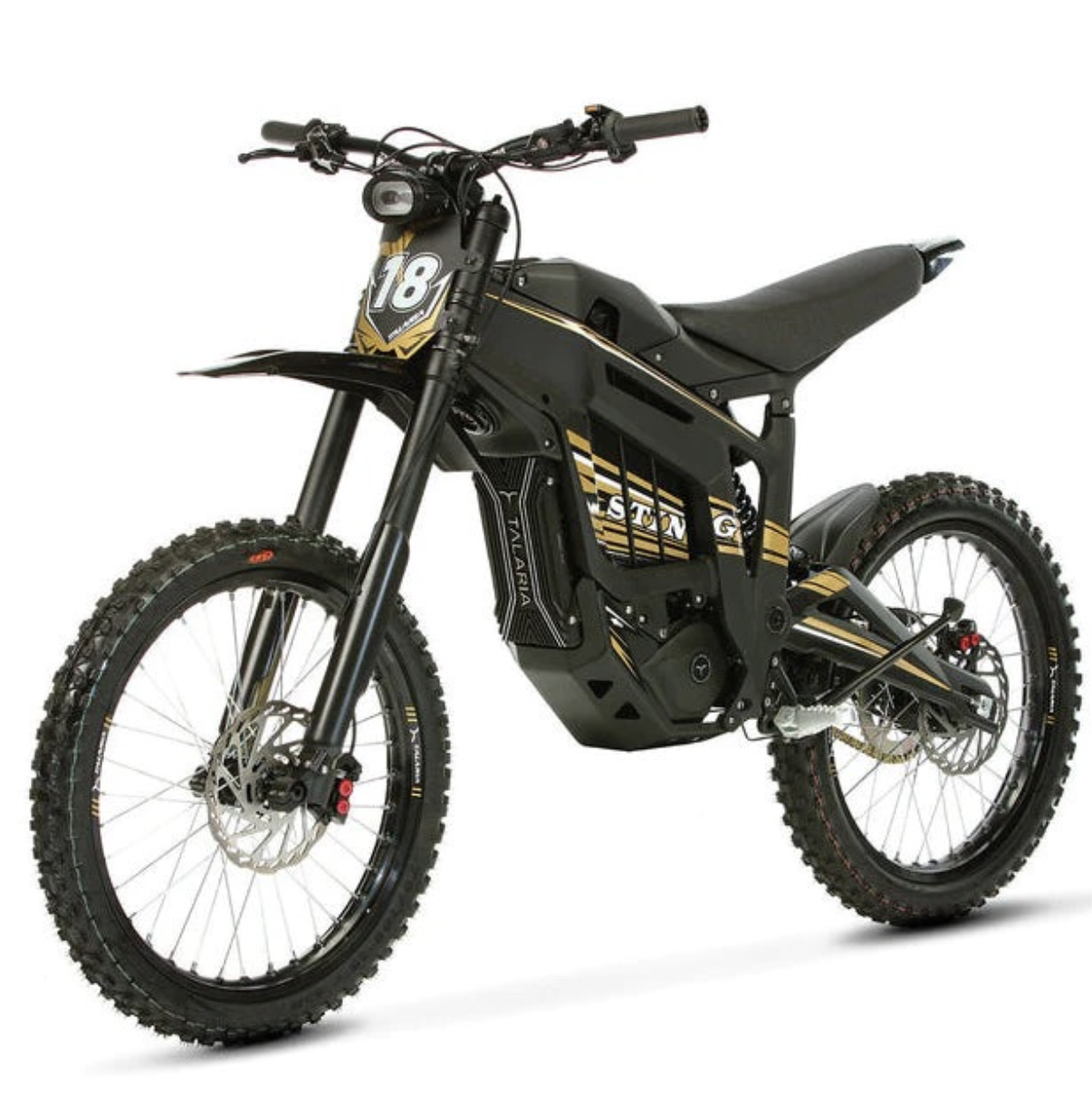

The Talaria STING electric dirt bike was born to bring cutting edgeperformance to all riders. It features aCAD designed light
weight frame design,a powerful electric motor deliveringinstant torque,transferred through an intelligent gear drive whilst
operating extremely quietly.Its compact well-balanced structure is very easy to maneuver,and requires minimal maintenance All
these features make STING anideal off-road bike for more people than ever to enjoy the passion and thrill ofoff-road riding
adventures.
Ask us for sticker to decorate your Talaria
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
60V
-
Power Supply:
-
Lithium Battery
-
Braking System:
-
Disc Brake
-
Battery Capacity:
-
38.4ah
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
talaria
-
Model Number:
-
sting
-
Model NO.:
-
talaria sting
-
Battery Type:
-
Lithium Battery
-
Motor:
-
Brushless
-
Certification:
-
CE
-
Tire Size:
-
Spoke Wheels, 70/100-19, 80/100-19
-
Net Weight:
-
63kg
-
Specification:
-
1650mm*850mm*310mm
-
Origin:
-
Chongqing
-
Folded:
-
Unfolded
Quick Details
-
Gears:
-
5speed
-
Frame Material:
-
Aluminum Alloy
-
Wheel Size:
-
20"
-
Voltage:
-
60V
-
Power Supply:
-
Lithium Battery
-
Braking System:
-
Disc Brake
-
Battery Capacity:
-
38.4ah
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
talaria
-
Model Number:
-
sting
-
Model NO.:
-
talaria sting
-
Battery Type:
-
Lithium Battery
-
Motor:
-
Brushless
-
Certification:
-
CE
-
Tire Size:
-
Spoke Wheels, 70/100-19, 80/100-19
-
Net Weight:
-
63kg
-
Specification:
-
1650mm*850mm*310mm
-
Origin:
-
Chongqing
-
Folded:
-
Unfolded
Product Description
TALARIA STING MX
Specification
|
Parameter
|
Description
|
|
Motor Type
|
Air-cooled Permanent Magnet Synchronous Motor
|
|
Controller Type
|
FOC Vector Control
|
|
Rated Voltage
|
60V (DC)
|
|
Rated Power
|
3000W
|
|
Peak Power
|
6000W
|
|
Max. Torque
|
34N.m
|
|
Rear Wheel Torque
|
284N.m (44T)
|
|
Max. Efficiency
|
92%
|
|
Gear Ratio
|
1:8.35 (44T)
|
|
1st Transmission
|
Gear Reduction Box
|
|
2nd Transmission
|
Chain
|
|
Battery Data
|
60V / 38.4Ah
|
|
Battery Cells
|
LG Brand 21700 Cell
|
|
Instrument Panel
|
3.5-inch TFT Full-color LCD Screen
|
|
Energy Recovery
|
4-level Energy Regeneration
|
|
Frame Material
|
6061 T4 & T6 Aluminum Alloy
|
|
Frame Process
|
6000-ton Pressure Forging
|
|
Lighting System
|
LED
|
|
Front Suspension
|
DNM/FASTACE/Custom High-performance Hydraulic, 200mm travel
|
|
Rear Suspension/Wheel
|
DNM/FASTACE, 85mm travel, 220mm wheel travel
|
|
Tire Brand & Size
|
CST FR.: 70/100-19; RR.: 80/100-19
|
|
Max. Speed
|
75KM/H (44T)
|
|
Range
|
110KM
|
|
Net Weight
|
63KG (including battery)
|
|
Vehicle Dimensions
|
1880MM x 770MM x 1088MM
|
|
Seat Height
|
840MM
|
|
Wheelbase
|
1225MM
|
|
Handlebar Length
|
760MM
|
|
Min. Ground Clearance
|
260MM
|
|
Max. Load Capacity
|
100KG
|
|
Climbing Ability
|
45°
|
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
