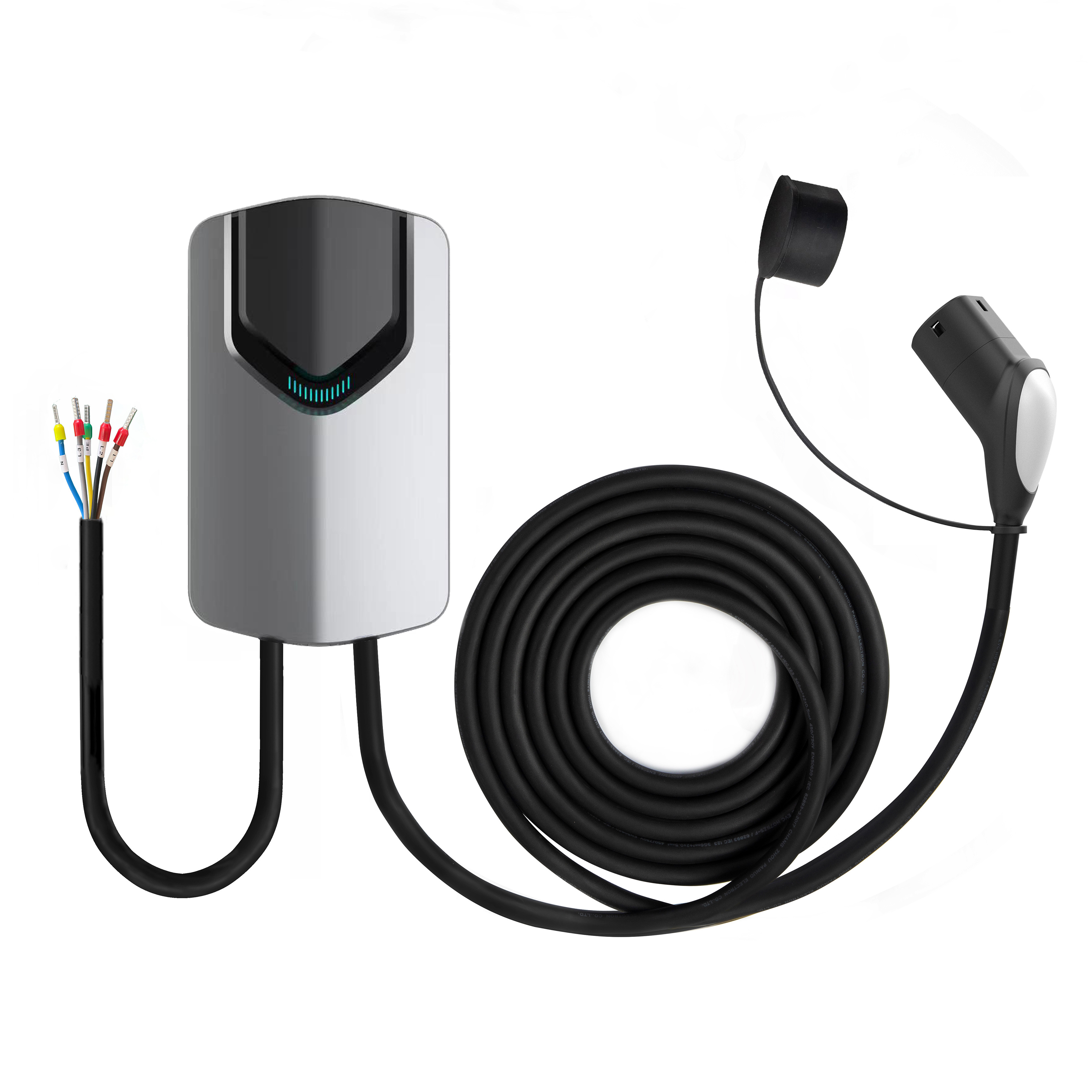

Quick Details
-
Input Voltage:
-
AC 480v
-
Certificates & QC:
-
CE, UKCA, ROHS,ISO
-
Station size:
-
290x180x95 (mm)
-
Protection rank:
-
IP55 Cable; IP65 Station
-
RCD:
-
type B (30mA AC + 6mA DC)
-
Charging cable:
-
5M Type 2 (TPU Jacket)
-
Power cord:
-
open ready to wire into electricity
-
LCD display:
-
4.3'' color screen (opt)
-
Start mode:
-
Card swipe / APP / Plug & play
-
Operating temperature:
-
-30℃ to 50℃
-
Warranty:
-
2 years (both cable and station)
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
VCS-DP-22
-
Brand Name:
-
Auxus
-
Input Voltage:
-
AC 480v
-
Certificates & QC:
-
CE, UKCA, ROHS,ISO
-
Station size:
-
290x180x95 (mm)
-
Protection rank:
-
IP55 Cable; IP65 Station
-
RCD:
-
type B (30mA AC + 6mA DC)
-
Charging cable:
-
5M Type 2 (TPU Jacket)
-
Power cord:
-
open ready to wire into electricity
-
LCD display:
-
4.3'' color screen (opt)
-
Start mode:
-
Card swipe / APP / Plug & play
-
Operating temperature:
-
-30℃ to 50℃
-
Warranty:
-
2 years (both cable and station)
Products Description
|
Certificates & QC
|
CE, UKCA, ROHS,ISO
|
|
Protection rank
|
IP55 Cable; IP65 Station
|
|
LCD display
|
without screen & with screen(opt)
|
|
RCD
|
type B (30mA AC + 6mA DC)
|
|
Power cord
|
open ready to wire into electricity
|
|
Charging cable
|
5M Type 2 (TPU Jacket)
|
|
LED indicator
|
R/G/B
|
|
Start mode
|
RFID card swipe / APP / Plug and Play(opt)
|
|
Station size
|
290x180x95 (mm)
|
|
Warranty
|
2 years (both cable and station)
|
|
lead time
|
30-35 days after deposit payment
|
|
Payment Terms
|
T/T(30% advanced payment ,the rest 70% balance should be paid before shippment)
|
|
Electrical Protection
|
Over current protection, Residual current protection, Ground protection, Surge protection
Over/Under voltage protection, Over/Under frequency protection, Over temp protection |
|
Materials Applied
|
Shell: by thermoplastic PC940. Anti-corrosion and abrasion protection. UV coating
Cable: 5.0M in black with TPU jacket. With CE issued by TUV and TUV mark. |
|
Customizing Logo
|
Logo put on shell by laser on station box or cable head
|
|
Package
|
Each in inner carton box with blister inner tray, then 2 inner cartons into 1 master carton
|
|
|
Product conforms to Low Voltage Directive 2014/35/EU, IEC61851-1:2019
IP54, Weather proof; Leakage current protection; Impact resistance Charging status and working error simply displayed by LED indicators and LCD screen |
EN Standard Strong Patience .
The charging cable meets the latest EN standard request of an electric vehicle charging cable.Highly resistant to the cold & heat,
with the cable maintaining flexibility at -40°c, therefore withstanding colder conditio-ns.
with the cable maintaining flexibility at -40°c, therefore withstanding colder conditio-ns.
TPU Cable .
Highly resistant to bending, protecting the internal wiring harness to function normally under repeated bending conditions.
Climate Friendly Stronger & Anti-aging .
The halogen-free charging cable is climate friendly, meeting the EU’s and USA’s environmental standards.The tight, strong
molecular structure provides a long-lasting charging cable solution, ensuring greater service life.
molecular structure provides a long-lasting charging cable solution, ensuring greater service life.
|
Charger Model & Spec
|
|
|
|
|
||||
|
Model No.
|
Rated Current
|
Power
|
Charging Cable
|
Certificate
|
||||
|
VCS-DP-7
|
200-240V / 32A
|
7kW
|
3x6.0mm²+0.5mm²
|
CE, ROHS,UKCA
|
||||
|
VCS-DP-11
|
380-440V / 16A
|
11kW
|
3x2.5mm²+0.5mm²
|
CE, ROHS,UKCA
|
||||
|
VCS-DP-22
|
380-440V / 32A
|
22kW
|
5x6.0mm²+0.5mm²
|
CE, ROHS,UKCA
|
||||
CAUTION:
1. Don't submerge the EV charging cable in water.
2. Don't step on, fold or knot the cable.
3. Don't drop the EV charging box or place a heavy object on it.
4. Don't place the charging cable near high temperature object when charging.
5. Don't operate the EVSE in temperatures beyond its operating range of -25°C to 55°C.
6. Power-supply side input cable should be at least 3*2.5mm (recommended 3*4mm), with a standard 16A socket. It is suggested that
the power distribution is done by the professionals.
7. Don't put fingers into the charging connector when the power plug is still connecting to the power.
8. Don't use this EV charging box when the cable is damaged.
9. The EV charging box is only for EV charging using.
10. Don't use this device with other brand's extension cord or adapter.
2. Don't step on, fold or knot the cable.
3. Don't drop the EV charging box or place a heavy object on it.
4. Don't place the charging cable near high temperature object when charging.
5. Don't operate the EVSE in temperatures beyond its operating range of -25°C to 55°C.
6. Power-supply side input cable should be at least 3*2.5mm (recommended 3*4mm), with a standard 16A socket. It is suggested that
the power distribution is done by the professionals.
7. Don't put fingers into the charging connector when the power plug is still connecting to the power.
8. Don't use this EV charging box when the cable is damaged.
9. The EV charging box is only for EV charging using.
10. Don't use this device with other brand's extension cord or adapter.
Packing & Delivery:
To better ensure the safety of your goods, professional, environmentally friendly, convenient, and efficient packaging services
will be provided.1 pcs in an inner carton, then take 2 pcs in a big master carton box.
will be provided.1 pcs in an inner carton, then take 2 pcs in a big master carton box.
